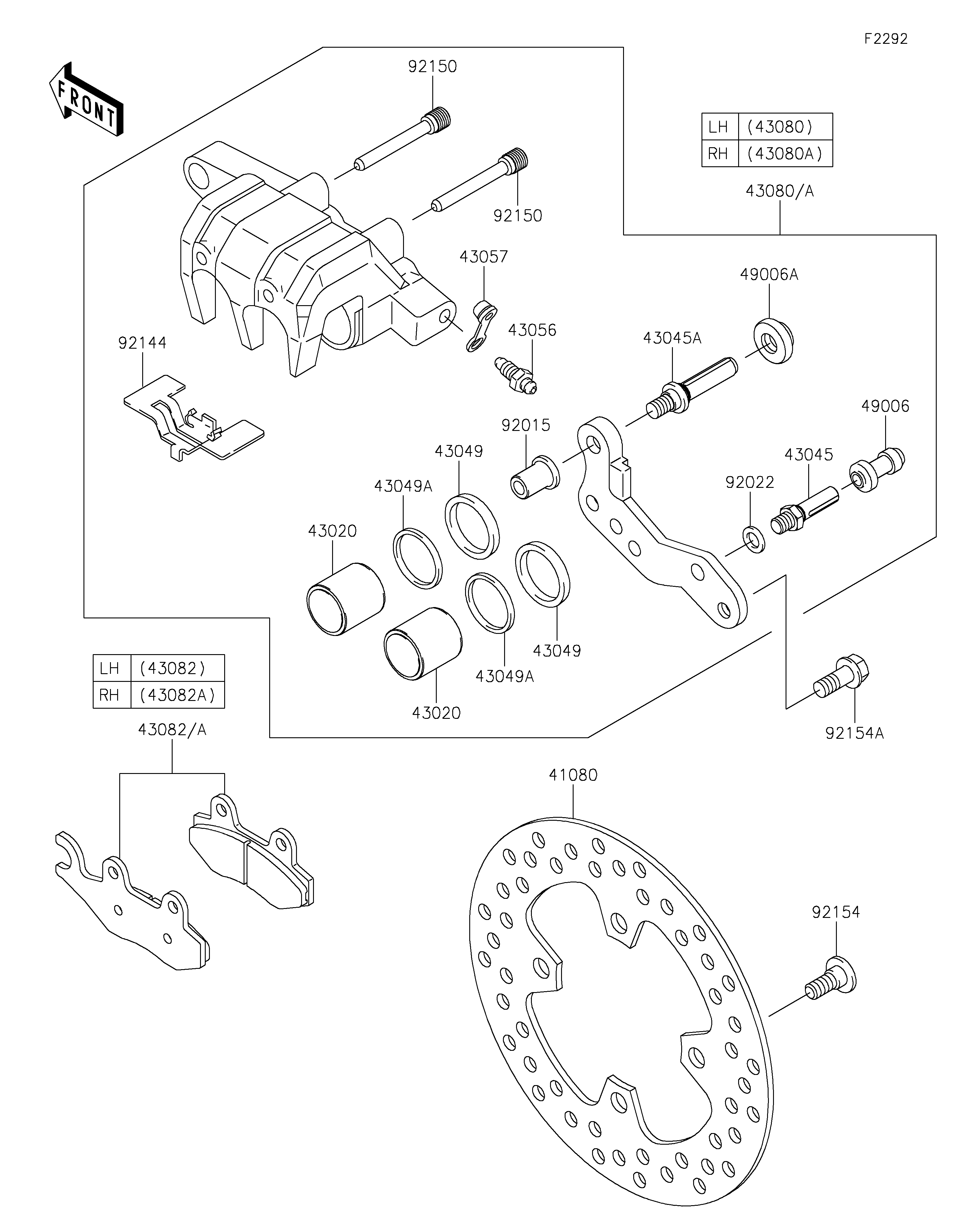

2025 BRUTE FORCE® 750 LE EPS - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
41080
43020
43020
43045
43045A
43049
43049
43049A
43049A
43056
43057
43080
43080A
43082
43082A
49006
49006A
92015
92022
92144
92150
92150
92154
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR 41080 41080-0585 2
PISTON-COMP-BRAKE 43020 43020-1101 4
SHAFT-CALIPER 43045 43045-1010 2
SHAFT-CALIPER 43045A 43045-1052 2
PACKING 43049 43049-1063 4
PACKING 43049A 43049-1064 4
BREATHER 43056 43056-1055 2
CAP-BREATHER 43057 43057-1001 2
CALIPER-SUB-ASSY,LH 43080 43080-0089 1
CALIPER-SUB-ASSY,RH 43080A 43080-0090 1
PAD-ASSY-BRAKE,FR,LH 43082 43082-0022 1
PAD-ASSY-BRAKE,FR,RH 43082A 43082-0023 1
BOOT,CALIPER 49006 49006-1088 2
BOOT,CALIPER 49006A 49006-1242 2
NUT 92015 92015-1740 2
WASHER,WAVE 92022 92022-1373 2
SPRING,PAD 92144 92144-1319 2
BOLT 92150 92150-1144 4
BOLT,HEXALOBULAR SOCKET,8X20 92154 92154-1165 8
BOLT,FLANGED,8X19 92154A 92154-1379 4
