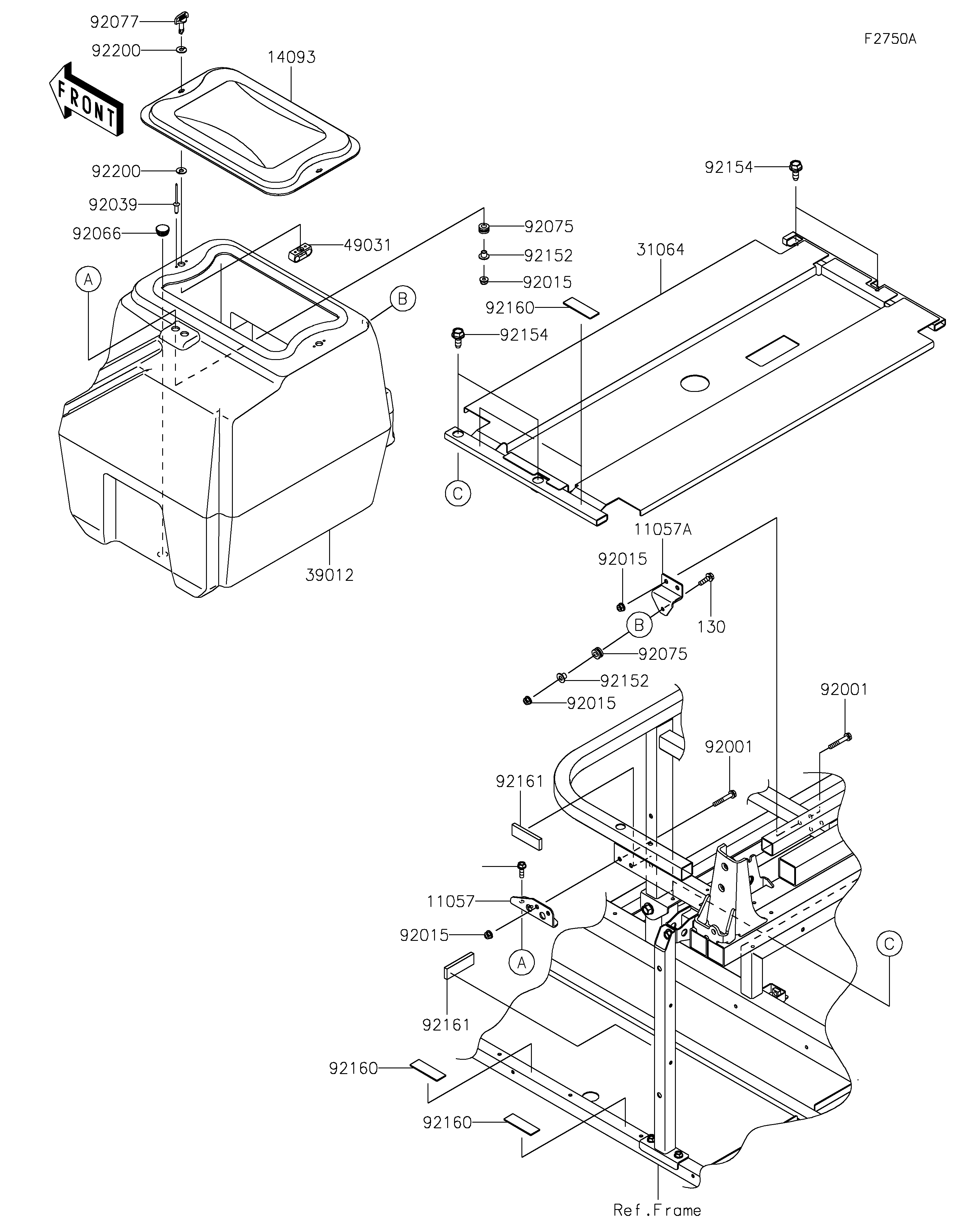

2026 MULE PRO-FXR™ 1000 LE - Other(NTFNN/NTFNL)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
14093
31064
39012
49031
92001
92001
92015
92015
92015
92015
92039
92066
92075
92075
92077
92152
92152
92154
92154
92160
92160
92160
92161
92161
92200
92200
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TUB MOUNT 11057 11057-1503 1
BRACKET,SEAT MOUNT 11057A 11057-1504 1
COVER,STORAGE BOX 14093 14093-0523 1
PIPE-COMP,UNDER SEAT 31064 31064-0826 1
CASE-STORAGE 39012 39012-0049 1
LATCH 49031 49031-0008 2
BOLT,FLANGED,6X38 92001 92001-1105 4
NUT,LOCK,FLANGED,6MM 92015 92015-1603 7
RIVET,3.2X9.5 92039 92039-0785 4
PLUG 92066 92066-1306 1
DAMPER 92075 92075-1912 3
KNOB 92077 92077-0030 2
COLLAR,6.3X8.3X9.2 92152 92152-0237 3
BOLT,6X15.6 92154 92154-1250 4
DAMPER 92160 92160-1075 4
DAMPER,20X60X6 92161 92161-1874 2
WASHER 92200 92200-0503 4
BOLT-FLANGED,6X20 130 130BA0620 3
