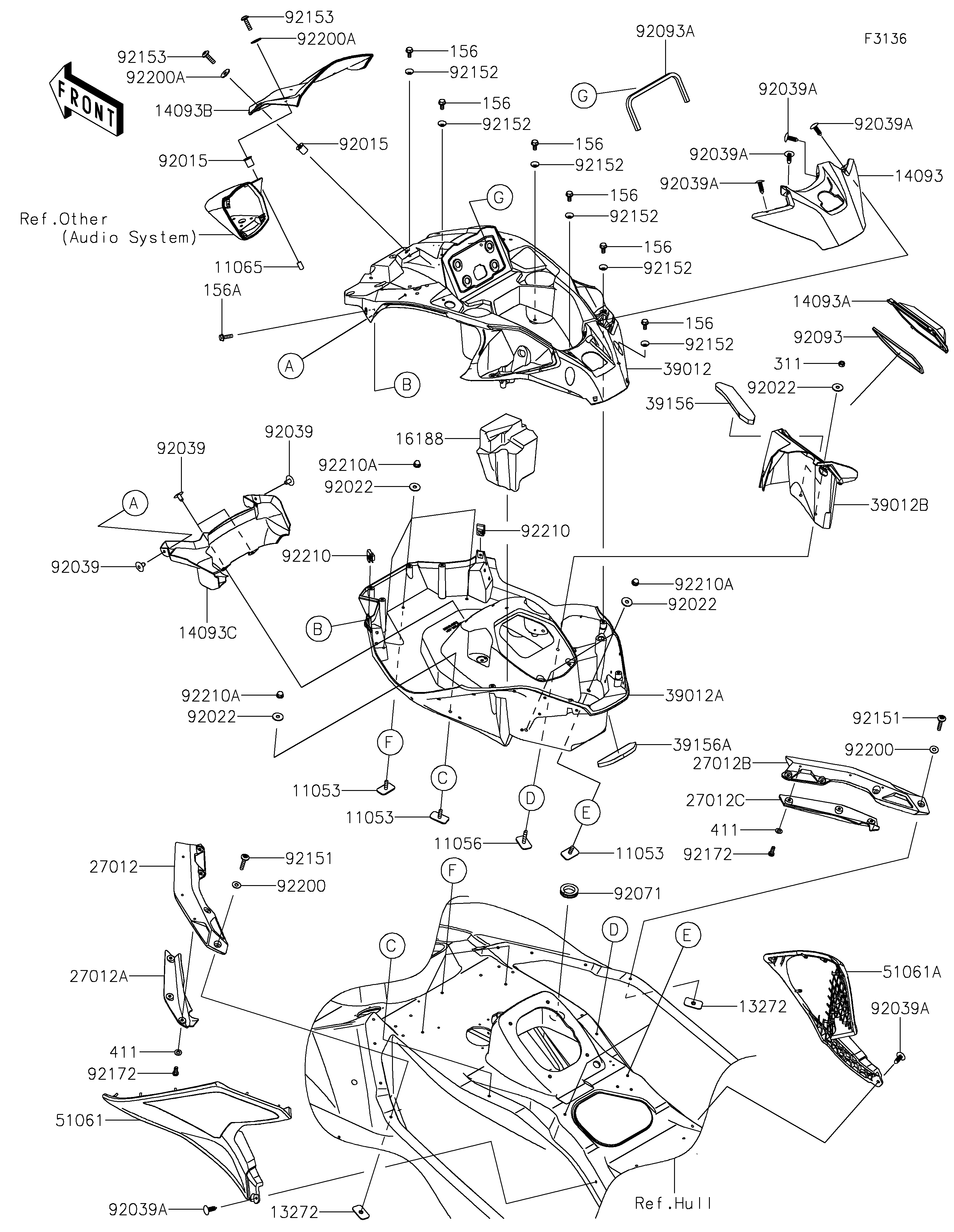

2023 JET SKI® ULTRA® 160LX - Hull Middle Fittings

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11053
11056
11065
13272
13272
14093
14093A
14093B
14093C
16188
27012
27012A
27012B
27012C
39012
39012A
39012B
39156
39156A
51061
51061A
92015
92015
92022
92022
92022
92022
92039
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92071
92093
92093A
92151
92151
92152
92152
92152
92152
92152
92152
92153
92153
92172
92172
92200
92200
92200A
92200A
92210
92210
92210A
92210A
92210A
156
156
156
156
156
156
156A
311
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-3776 6
BRACKET 11056 11056-3724 2
CAP 11065 11065-1422 2
PLATE 13272 13272-3861 8
COVER,CONSOL 14093 14093-1164 1
COVER,WATERPROOF,FR,RH 14093A 14093-1165 1
COVER,METER VISOR 14093B 14093-1180 1
COVER,HARNESS 14093C 14093-1203 1
FLOAT 16188 16188-0065 1
HOOK,FR,LH,UPP 27012 27012-0887 1
HOOK,FR,LH,LWR 27012A 27012-0888 1
HOOK,FR,RH,UPP 27012B 27012-0889 1
HOOK,FR,RH,LWR 27012C 27012-0890 1
CASE-STORAGE,FR,CNT,UPP 39012 39012-0070 1
CASE-STORAGE,FR,CNT,LWR 39012A 39012-0072 1
CASE-STORAGE,WATERPROOF,FR,RH 39012B 39012-0073 1
PAD 39156 39156-2778 1
PAD 39156A 39156-2815 1
PAD-KNEE,LH,BLACK 51061 51061-0008-6Z 1
PAD-KNEE,RH,BLACK 51061A 51061-0009-6Z 1
NUT 92015 92015-1700 4
WASHER,6.5X20X1.5 92022 92022-3710 8
RIVET 92039 92039-3785 4
RIVET 92039A 92039-3788 6
GROMMET,31.5X50X11 92071 92071-0737 1
SEAL 92093 92093-0760 1
SEAL 92093A 92093-0808 1
BOLT,SOCKET,6X30 92151 92151-1605 8
COLLAR 92152 92152-2951 12
BOLT,SOCKET,6X23 92153 92153-1267 4
SCREW,TAPPING,6X16 92172 92172-1441 6
WASHER,6.5X16X1.0 92200 92200-3712 8
WASHER,6.5X20X1.5 92200A 92200-3715 4
NUT,6MM 92210 92210-3768 2
NUT,CAP,6MM 92210A 92210-3785 6
BOLT-WP,6X14 156 156R0614 12
BOLT-WP,6X20 156A 156R0620 2
NUT-HEX,6MM 311 311R0600 2
WASHER-PLAIN,6MM 411 411S0600 6
