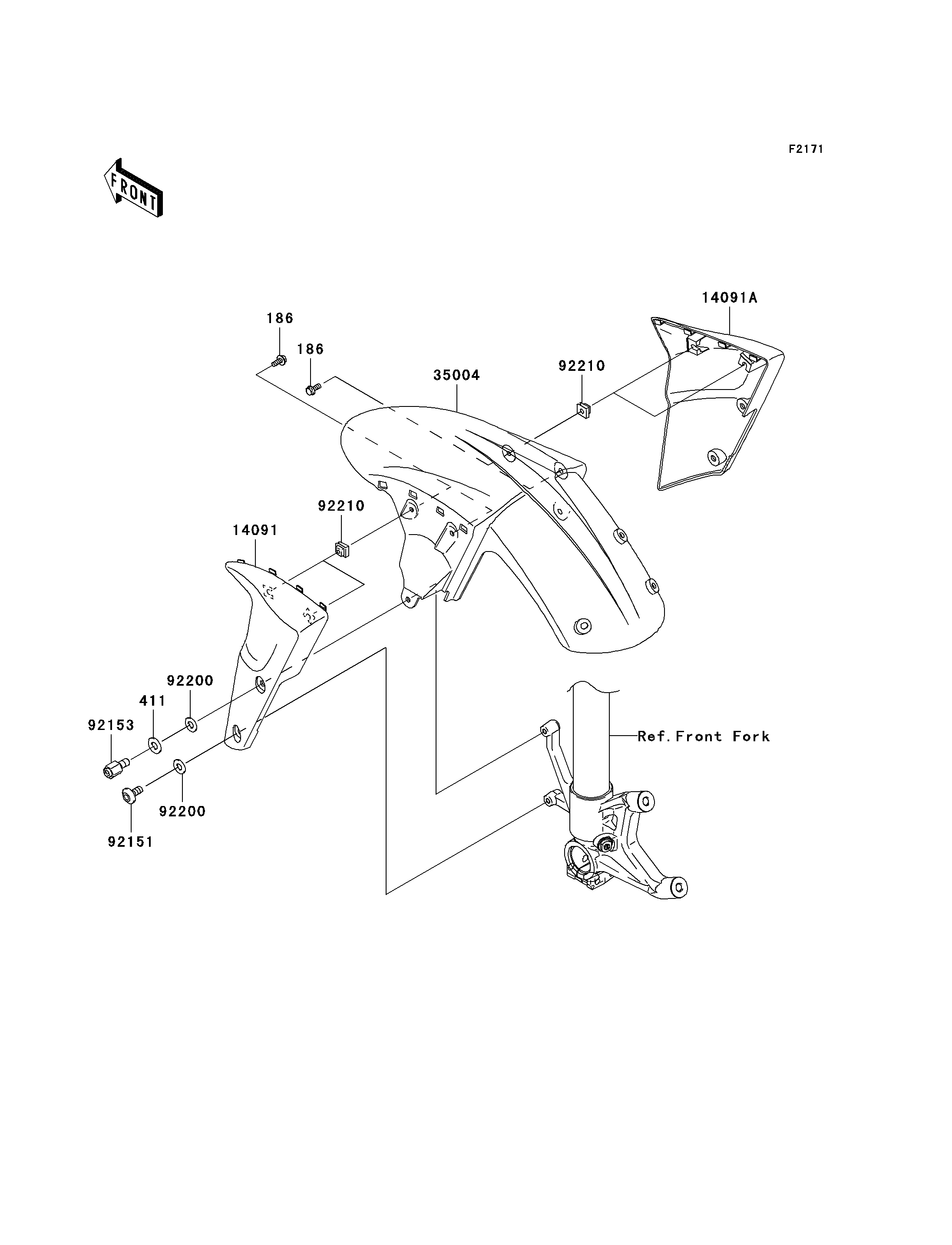

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET-WP,5X14 | 186 | 186L0514 | 4 | ||
| WASHER-PLAIN,6MM,BLACK | 411 | 411F0600 | 2 | ||
| COVER,FRONT FENDER,LH,F.BLACK | 14091 | 14091-0103-6Z | 1 | ||
| COVER,FRONT FENDER,RH,F.BLACK | 14091A | 14091-0104-6Z | 1 | ||
| FENDER-FRONT,L.GREEN | 35004 | 35004-0034-777 | 1 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 2 | ||
| BOLT,6MM | 92153 | 92153-0335 | 2 | ||
| WASHER,6.5X14X1 | 92200 | 92200-1388 | 4 | ||
| NUT,5MM | 92210 | 92210-1266 | 4 |
| BOLT-UPSET-WP,5X14 | |
| REF # | 186 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,6MM,BLACK | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,FRONT FENDER,LH,F.BLACK | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FRONT FENDER,RH,F.BLACK | |
| REF # | 14091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,L.GREEN | |
| REF # | 35004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6MM | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X14X1 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
