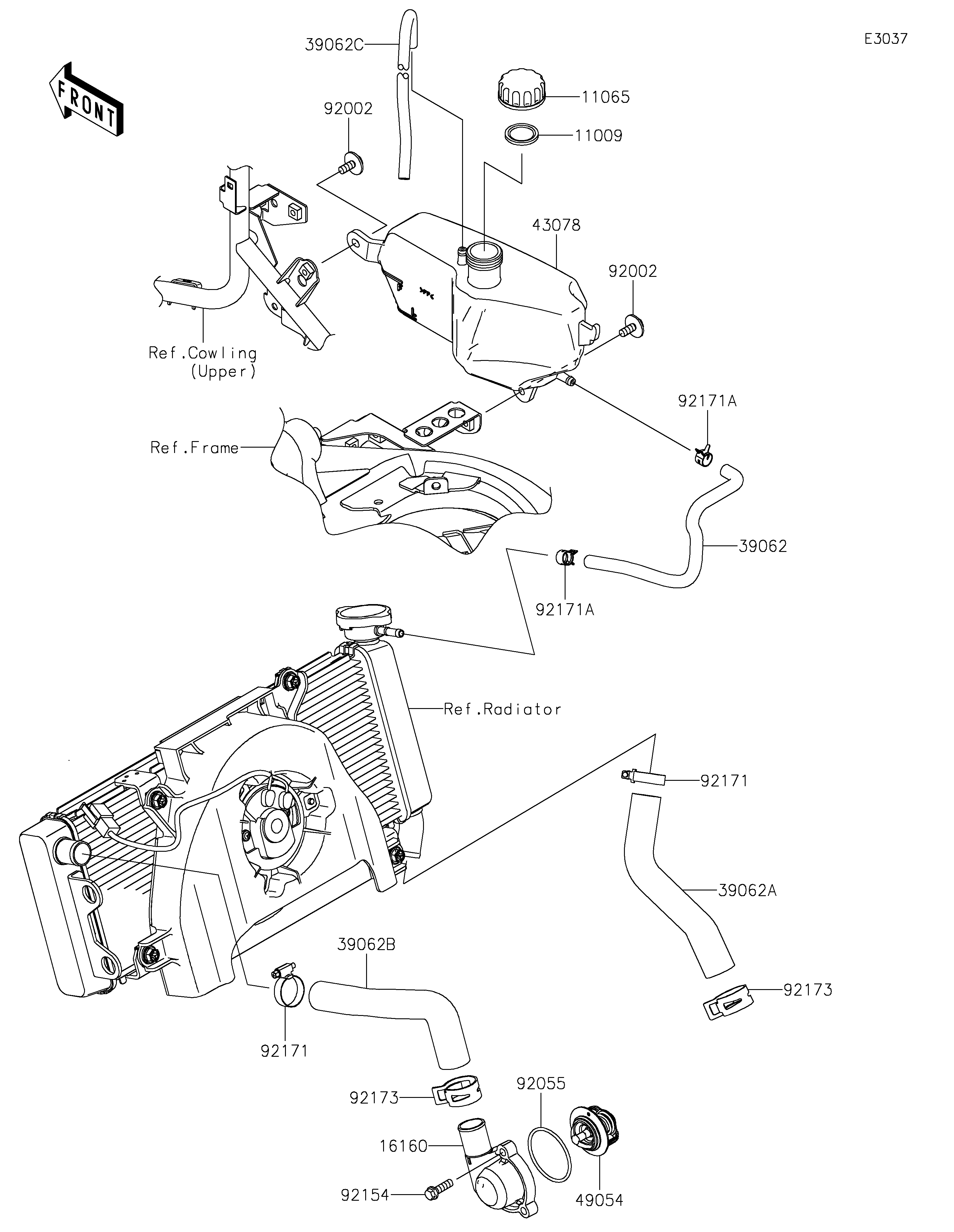

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11009
11065
16160
39062
39062A
39062B
39062C
43078
49054
92002
92002
92055
92154
92171
92171
92171A
92171A
92173
92173
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11065 | 11065-0969 | 1 | ||
| BODY,THERMOSTAT | 16160 | 16160-0830 | 1 | ||
| HOSE-COOLING,RAD-RESERVOIR | 39062 | 39062-0163 | 1 | ||
| HOSE-COOLING,W/PUMP-RADIATOR | 39062A | 39062-0752 | 1 | ||
| HOSE-COOLING,HEAD-RADIATOR | 39062B | 39062-0776 | 1 | ||
| HOSE-COOLING,BREATHER | 39062C | 39062-0940 | 1 | ||
| RESERVOIR | 43078 | 43078-0614 | 1 | ||
| THERMOSTAT | 49054 | 49054-0001 | 1 | ||
| BOLT,6X16 | 92002 | 92002-1188 | 2 | ||
| RING-O,46.7X2.4 | 92055 | 92055-0992 | 1 | ||
| BOLT,FLANGED,6X20 | 92154 | 92154-1778 | 3 | ||
| CLAMP | 92171 | 92171-0337 | 2 | ||
| CLAMP,10.5X8X0.7 | 92171A | 92171-1992 | 2 | ||
| CLAMP | 92173 | 92173-1416 | 2 |
| GASKET,RESERVOIR TANK CAP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY,THERMOSTAT | |
| REF # | 16160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RAD-RESERVOIR | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,W/PUMP-RADIATOR | |
| REF # | 39062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,HEAD-RADIATOR | |
| REF # | 39062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,BREATHER | |
| REF # | 39062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RESERVOIR | |
| REF # | 43078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| THERMOSTAT | |
| REF # | 49054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,46.7X2.4 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X20 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,10.5X8X0.7 | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
