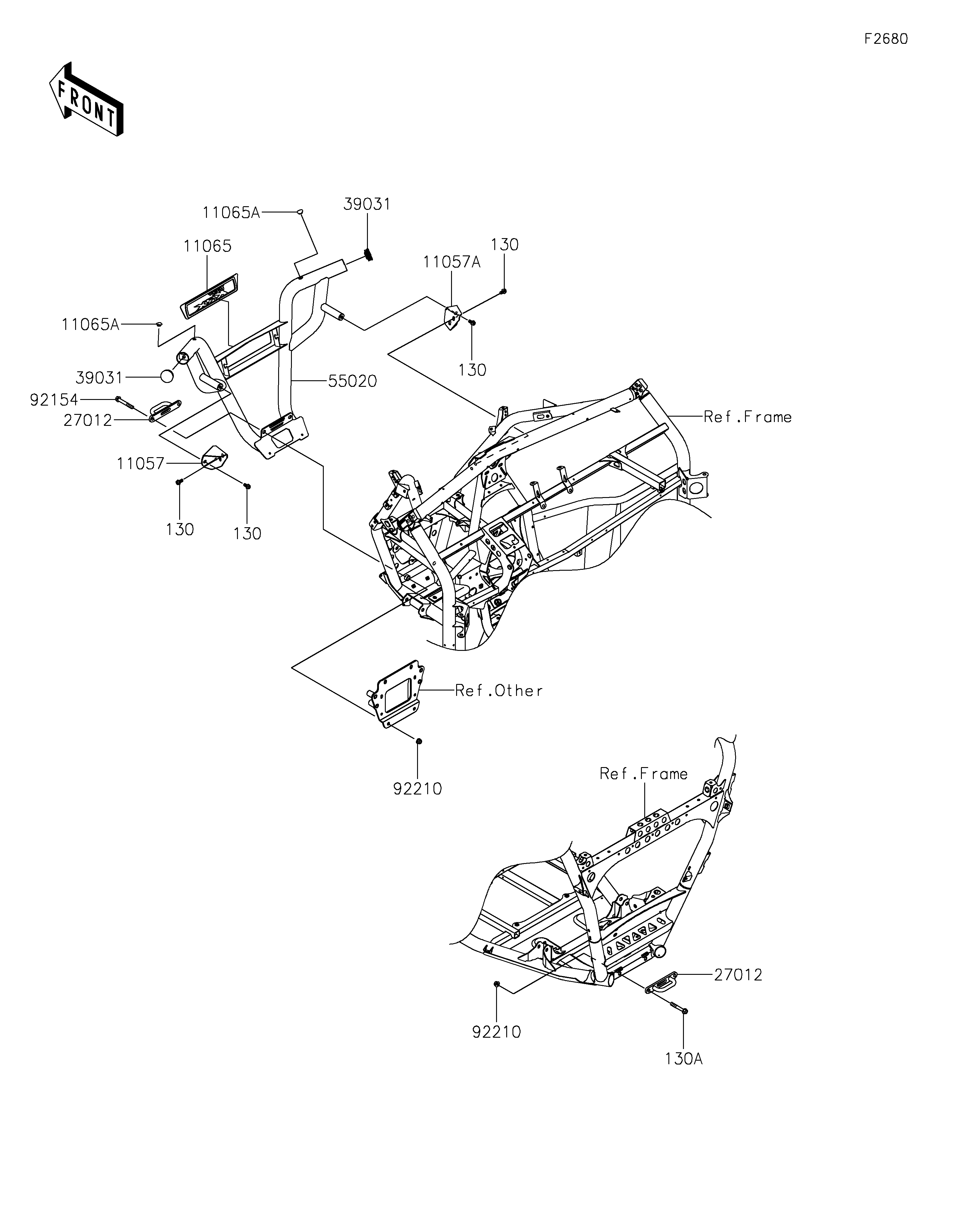

2025 TERYX® KRX4™ 1000 LIFTED EDITION - Guard(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11065
11065A
11065A
27012
27012
39031
39031
55020
92154
92210
92210
130
130
130
130
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LH 11057 11057-4169 1
BRACKET,RH 11057A 11057-4170 1
CAP,FR GUARD 11065 11065-1348 1
CAP,HOLE PLUG 11065A 11065-1349 2
HOOK 27012 27012-0856 2
CAP-END 39031 39031-0021 2
GUARD,FR,T.BLACK 55020 55020-2318-388 1
BOLT,FLANGED,10X70 92154 92154-7404 2
NUT,LOCK,FLANGED,10MM 92210 92210-1080 4
BOLT-FLANGED,8X16 130 130CA0816 6
BOLT-FLANGED,10X65 130A 130CA1065 2
