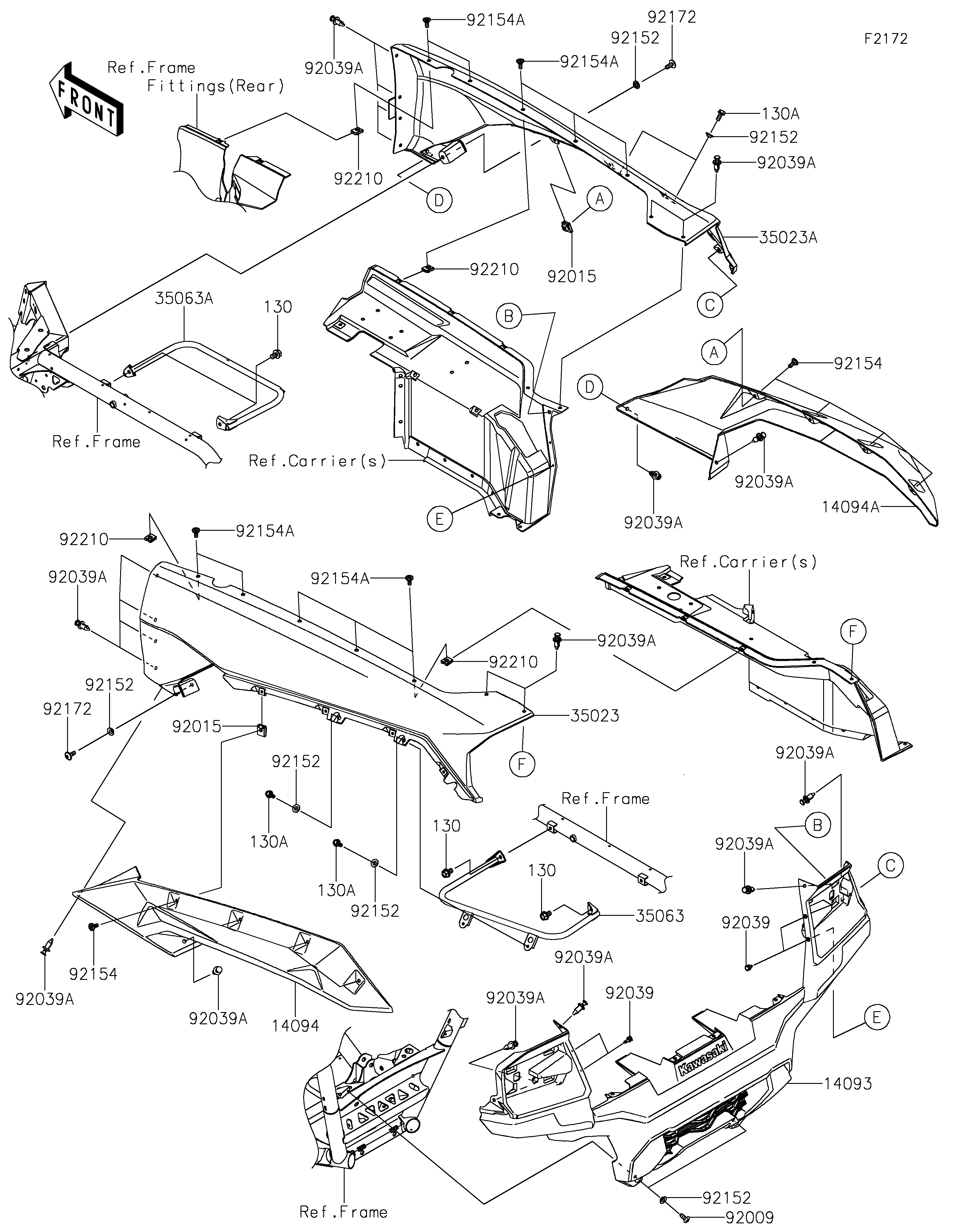

2025 TERYX® KRX4™ 1000 LIFTED EDITION - Rear Fender(s)
14093
14094
14094A
35023
35023A
35063
35063A
92009
92015
92015
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92152
92152
92152
92152
92152
92152
92154
92154
92154A
92154A
92154A
92154A
92172
92172
92210
92210
92210
92210
130
130
130
130A
130A
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,TAIL | 14093 | 14093-0798 | 1 | ||
| COVER,RR FENDER,LH | 14094 | 14094-0231 | 1 | ||
| COVER,RR FENDER,RH | 14094A | 14094-0232 | 1 | ||
| FENDER-REAR,LH,L.GREEN | 35023 | 35023-0463-777 | 1 | ||
| FENDER-REAR,RH,L.GREEN | 35023A | 35023-0464-777 | 1 | ||
| STAY,LH | 35063 | 35063-1462 | 1 | ||
| STAY,RH | 35063A | 35063-1463 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 2 | ||
| NUT,CLAMP,6MM | 92015 | 92015-1678 | 8 | ||
| RIVET | 92039 | 92039-0046 | 4 | ||
| RIVET | 92039A | 92039-0776 | 20 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 8 | ||
| BOLT | 92154 | 92154-2474 | 8 | ||
| BOLT | 92154A | 92154-3957 | 10 | ||
| SCREW,6X16 | 92172 | 92172-0236 | 2 | ||
| NUT | 92210 | 92210-1125 | 10 | ||
| BOLT-FLANGED,8X12 | 130 | 130BA0812 | 4 | ||
| BOLT-FLANGED,6X14 | 130A | 130CA0614 | 4 |
