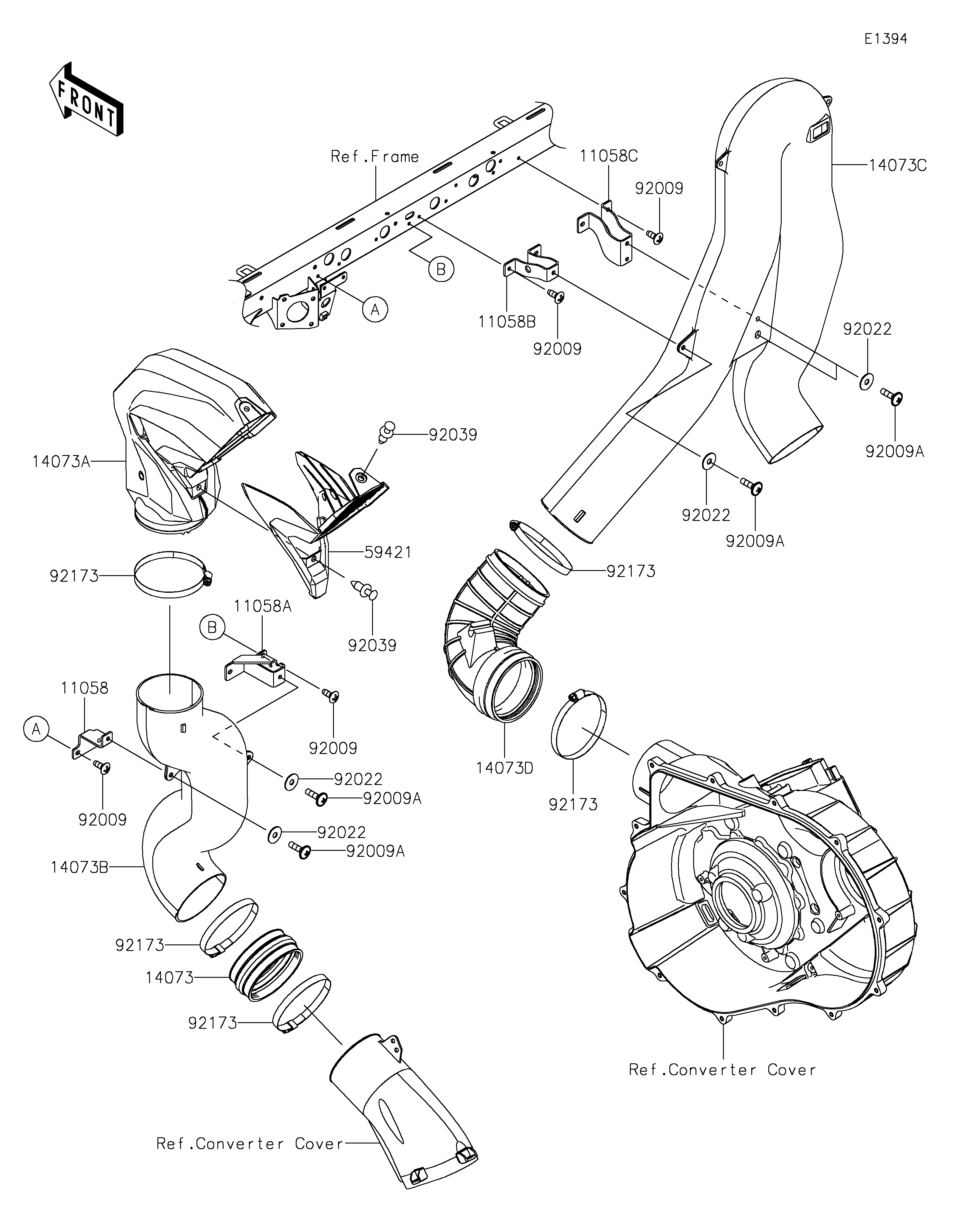

2025 TERYX® KRX4™ 1000 LIFTED EDITION - Air Cleaner-Belt Converter
11058
11058A
11058B
11058C
14073
14073A
14073B
14073C
14073D
59421
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92022
92022
92022
92022
92039
92039
92173
92173
92173
92173
92173
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11058 | 11058-1375 | 1 | ||
| BRACKET | 11058A | 11058-1376 | 1 | ||
| BRACKET | 11058B | 11058-1377 | 1 | ||
| BRACKET | 11058C | 11058-1378 | 1 | ||
| DUCT | 14073 | 14073-0909 | 1 | ||
| DUCT,INTAKE | 14073A | 14073-1934 | 1 | ||
| DUCT,INTAKE-CVT CASE | 14073B | 14073-1940 | 1 | ||
| DUCT,EXHAUST | 14073C | 14073-1941 | 1 | ||
| DUCT,FITTING EXHAUST | 14073D | 14073-1942 | 1 | ||
| COVER-INTAKE,L.GREEN | 59421 | 59421-0007-290 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 8 | ||
| SCREW,6X22 | 92009A | 92009-1441 | 5 | ||
| WASHER,PLAIN,6.5X20X1 | 92022 | 92022-165 | 5 | ||
| RIVET | 92039 | 92039-0776 | 2 | ||
| CLAMP,130MM | 92173 | 92173-1938 | 5 |
