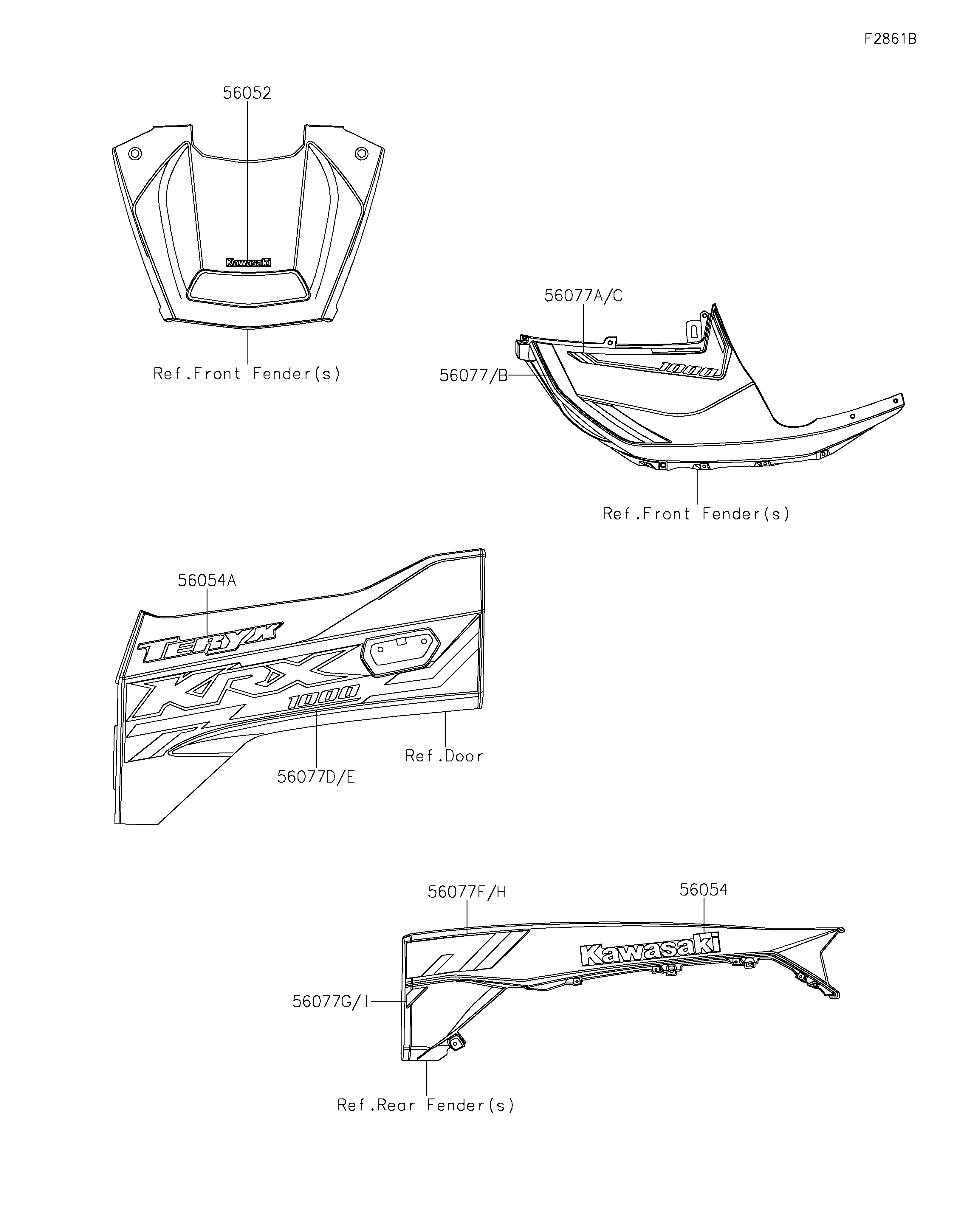

2024 TERYX KRX® 1000 - Decals(Gray)(ARFNN/ARFNL)(CA,US)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56052 | 56052-0716 | 1 | CA,US | |
| MARK,RR FENDER,KAWASAKI | 56054 | 56054-2605 | 2 | CA,US | |
| MARK,FR DOOR,TERYX | 56054A | 56054-3850 | 2 | CA,US | |
| PATTERN,FR FENDER,LH | 56077 | 56077-0182 | 1 | CA,US | |
| PATTERN,FR FENDER,LH | 56077A | 56077-0183 | 1 | CA,US | |
| PATTERN,FR FENDER,RH | 56077B | 56077-0184 | 1 | CA,US | |
| PATTERN,FR FENDER,RH | 56077C | 56077-0185 | 1 | CA,US | |
| PATTERN,DOOR COVER,LH | 56077D | 56077-0186 | 1 | CA,US | |
| PATTERN,DOOR COVER,RH | 56077E | 56077-0187 | 1 | CA,US | |
| PATTERN,RR FENDER,LH,UPP | 56077F | 56077-0188 | 1 | CA,US | |
| PATTERN,RR FENDER,LH,LWR | 56077G | 56077-0189 | 1 | CA,US | |
| PATTERN,RR FENDER,RH,UPP | 56077H | 56077-0190 | 1 | CA,US | |
| PATTERN,RR FENDER,RH,LWR | 56077I | 56077-0191 | 1 | CA,US |
| MARK,KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,RR FENDER,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,FR DOOR,TERYX | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56077A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56077B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56077C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,DOOR COVER,LH | |
| REF # | 56077D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,DOOR COVER,RH | |
| REF # | 56077E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,RR FENDER,LH,UPP | |
| REF # | 56077F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,RR FENDER,LH,LWR | |
| REF # | 56077G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,RR FENDER,RH,UPP | |
| REF # | 56077H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,RR FENDER,RH,LWR | |
| REF # | 56077I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
