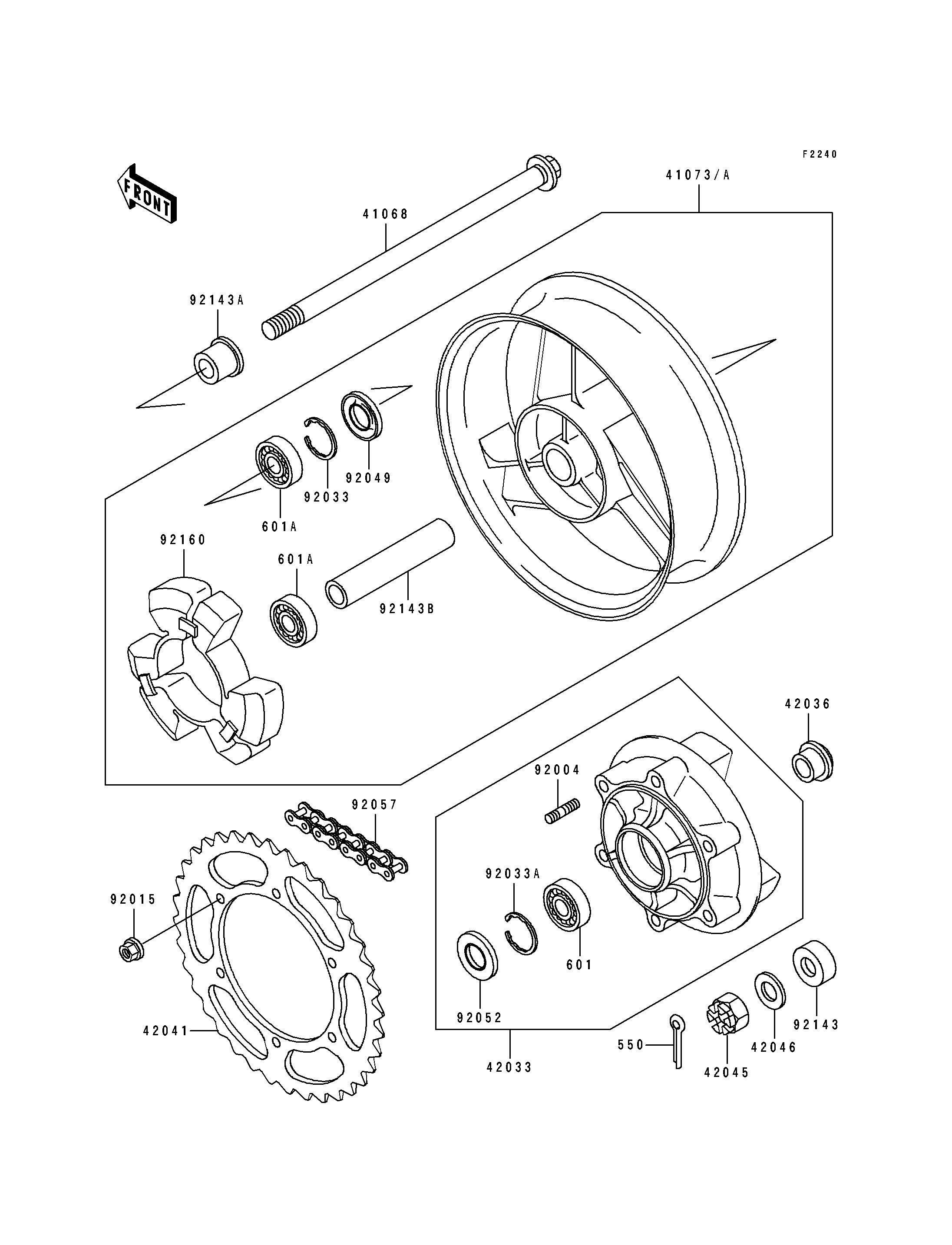

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AXLE,RR | 41068 | 41068-1314 | 1 | ||
| WHEEL-ASSY,RR,G.GRAY | 41073 | 41073-1484-GE | 1 | ||
| COUPLING-ASSY,RR HUB,G.GRAY | 42033 | 42033-1142-GD | 1 | ||
| SLEEVE,RR AXLE,L=22 | 42036 | 42036-1233 | 1 | ||
| SPROCKET-HUB,45T | 42041 | 42041-1361 | 1 | ||
| NUT,CASTLE,16MM | 42045 | 42045-014 | 1 | ||
| WASHER,17.3X32X3.2 | 42046 | 42046-009 | 1 | ||
| STUD,10X19.5 | 92004 | 92004-1151 | 6 | ||
| NUT,10MM | 92015 | 92015-1720 | 6 | ||
| RING-SNAP,47MM | 92033 | 92033-1042 | 1 | ||
| RING-SNAP,52MM | 92033A | 92033-1043 | 1 | ||
| SEAL-OIL,BJN28475 | 92049 | 92049-1056 | 1 | ||
| SEAL-OIL,TWC35527 | 92052 | 92052-006 | 1 | ||
| CHAIN,DRIVE,EK50MV-OX110L | 92057 | 92057-1221 | 1 | ||
| COLLAR,RR AXLE,L=14.5 | 92143 | 92143-1209 | 1 | ||
| COLLAR,RR AXLE,L=26 | 92143A | 92143-1210 | 1 | ||
| COLLAR,RR HUB,L=125 | 92143B | 92143-1393 | 1 | ||
| DAMPER,SHOCK,RR HUB | 92160 | 92160-1248 | 1 | ||
| PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
| BEARING-BALL,#6205G | 601 | 601B6205G | 1 | ||
| BEARING-BALL,#6303ZZC3 | 601A | 601B6303ZZ | 2 |
| AXLE,RR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WHEEL-ASSY,RR,G.GRAY | |
| REF # | 41073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COUPLING-ASSY,RR HUB,G.GRAY | |
| REF # | 42033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,RR AXLE,L=22 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-HUB,45T | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CASTLE,16MM | |
| REF # | 42045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,17.3X32X3.2 | |
| REF # | 42046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,10X19.5 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,47MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,52MM | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,BJN28475 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,TWC35527 | |
| REF # | 92052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,DRIVE,EK50MV-OX110L | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RR AXLE,L=14.5 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RR AXLE,L=26 | |
| REF # | 92143A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RR HUB,L=125 | |
| REF # | 92143B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SHOCK,RR HUB | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,4.0X35 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6205G | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6303ZZC3 | |
| REF # | 601A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
