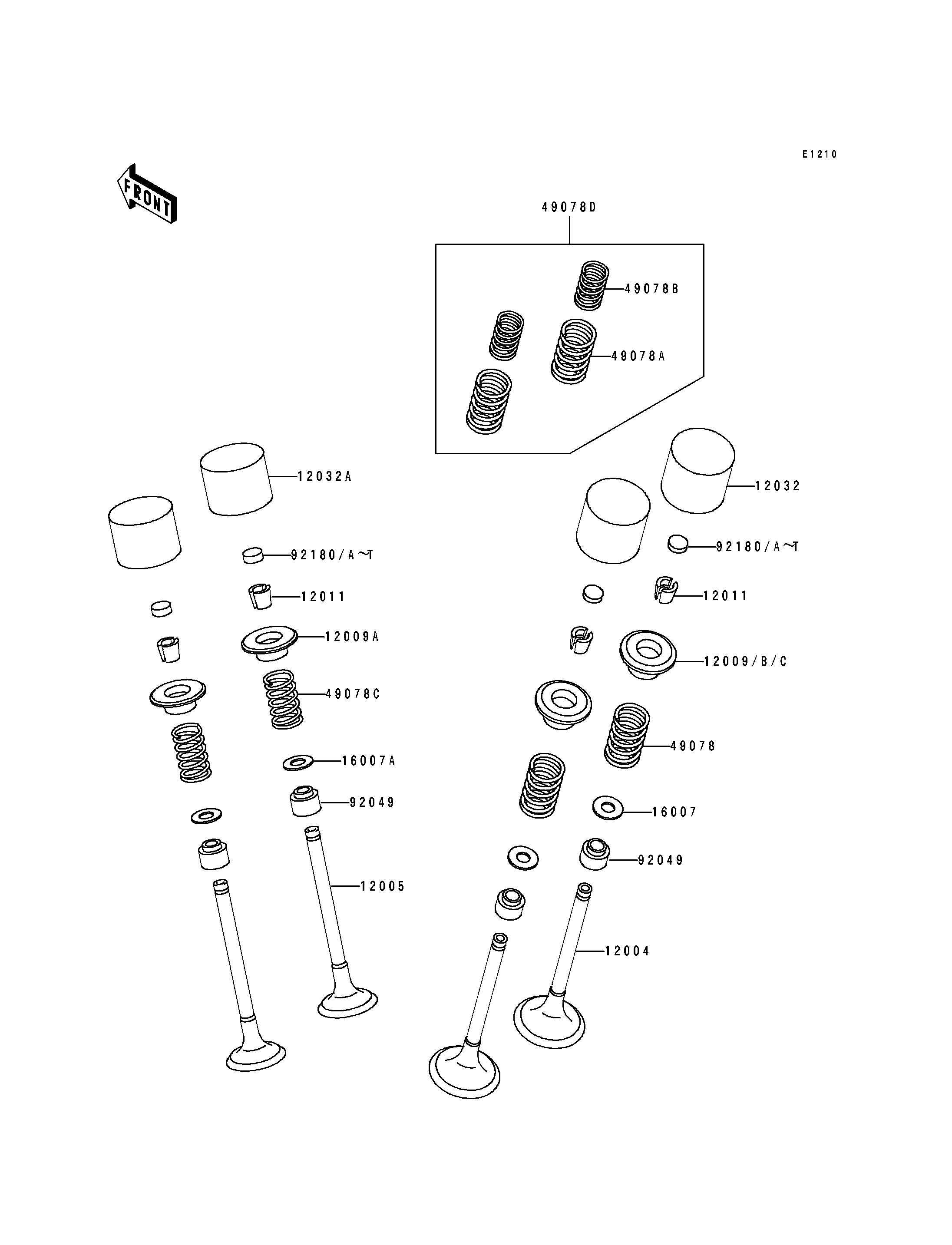

1991 Ninja® ZX™-6 - Valve

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-1102 8
VALVE-EXHAUST 12005 12005-1162 8
RETAINER-VALVE SPRING,INTAKE 12009 12009-1072 8 ( - ZX600DE021419)
RETAINER-VALVE SPRING,EXHAUST 12009A 12009-1073 8
RETAINER-VALVE SPRING,INTAKE 12009C 12009-1074 8 ( ZX600DE021420 - )
COLLET 12011 12011-1053 32
TAPPET 12032 12032-1052 8
TAPPET,EXHAUST 12032A 12032-1054 8
SEAT-SPRING,INTAKE 16007 16007-1159 8
SEAT-SPRING,EXHAUST 16007A 16007-1160 8
SPRING-ENGINE VALVE,INTAKE 49078 49078-1098 8 ( - ZX600DE021419)
SPRING-ENGINE VALVE,INTAKE,OUT 49078A 49078-1109 8
SPRING-ENGINE VALVE,INTAKE,IN 49078B 49078-1110 8
SPRING-ENGINE VALVE,EXHAUST 49078C 49078-1111 8 ( ZX600DE021420 - )
SEAL-OIL 92049 92049-1349 16
SHIM,T=2.50 92180 92180-1014 16
SHIM,T=2.55 92180A 92180-1016 AR
SHIM,T=2.60 92180B 92180-1018 AR
SHIM,T=2.65 92180C 92180-1020 AR
SHIM,T=2.70 92180D 92180-1022 AR
SHIM,T=2.75 92180E 92180-1024 AR
SHIM,T=2.80 92180F 92180-1026 AR
SHIM,T=2.85 92180G 92180-1028 AR
SHIM,T=2.90 92180H 92180-1030 AR
SHIM,T=2.95 92180I 92180-1032 AR
SHIM,T=3.00 92180J 92180-1034 AR
SHIM,T=3.05 92180K 92180-1036 AR
SHIM,T=3.10 92180L 92180-1038 AR
SHIM,T=3.15 92180M 92180-1040 AR
SHIM,T=3.20 92180N 92180-1042 AR
SHIM,T=3.25 92180O 92180-1044 AR
SHIM,T=3.30 92180P 92180-1046 AR
SHIM,T=3.35 92180Q 92180-1048 AR
SHIM,T=3.40 92180R 92180-1050 AR
SHIM,T=3.45 92180S 92180-1052 AR
SHIM,T=3.50 92180T 92180-1054 AR
