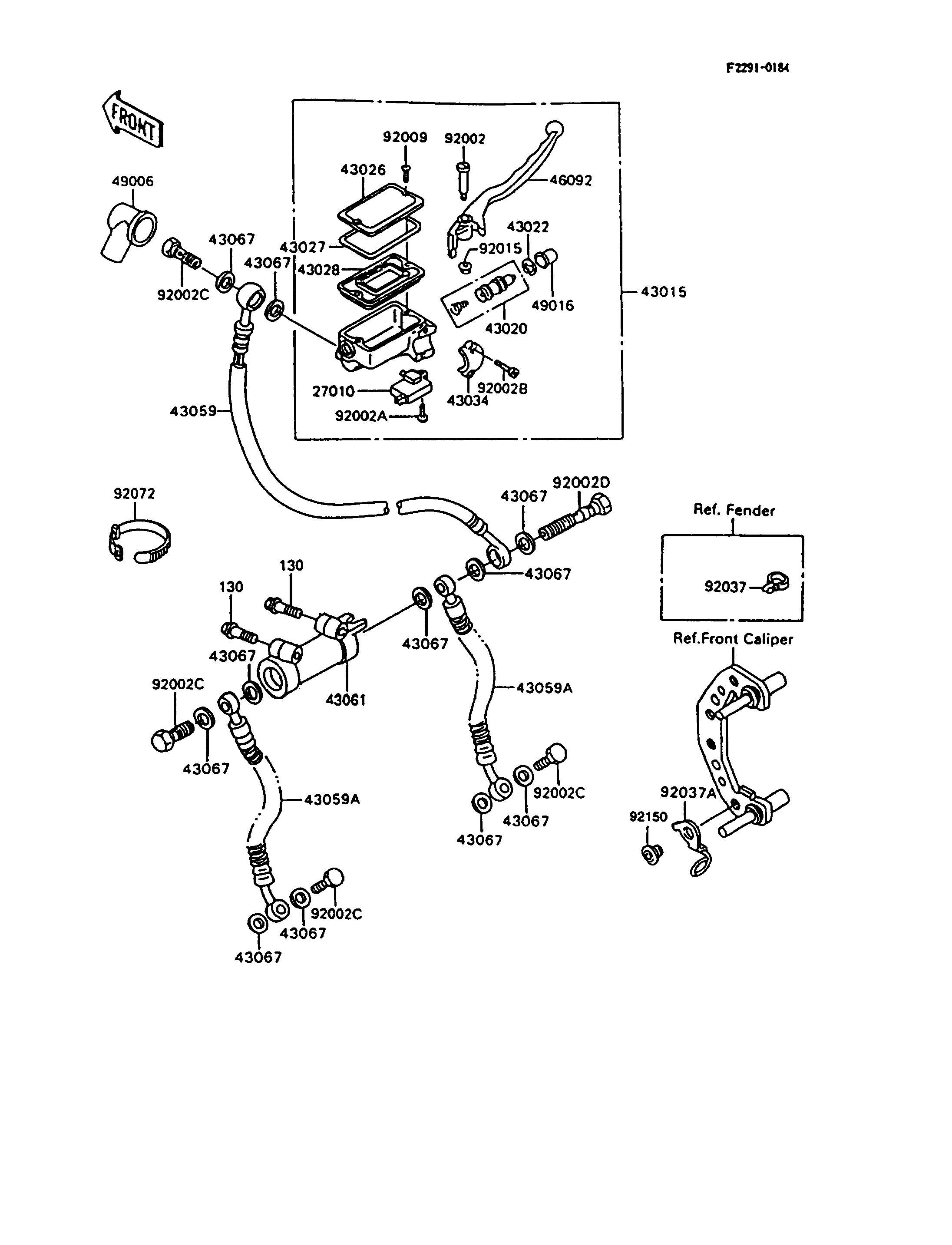

1996 Ninja® 600R - Front Master Cylinder
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH,BRAKE | 27010 | 27010-1170 | 1 | ||
| CYLINDER-ASSY-MASTER,FR | 43015 | 43015-1501 | 1 | ||
| PISTON-COMP-BRAKE,FR | 43020 | 43020-1054 | 1 | ||
| STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
| CAP-BRAKE | 43026 | 43026-1076 | 1 | ||
| PLATE-DIAPHRAGM | 43027 | 43027-1055 | 1 | ||
| DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1058 | 1 | ||
| HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1053 | 1 | ||
| HOSE-BRAKE,FR,UPP | 43059 | 43059-1835 | 1 | ||
| HOSE-BRAKE,FR,LWR | 43059A | 43059-1836 | 2 | ||
| JOINT-BRAKE | 43061 | 43061-1002 | 1 | ||
| WASHER,10.5X15X1.5 | 43067 | 43067-001 | 11 | ||
| LEVER-GRIP,FRONT BRAKE | 46092 | 46092-1117 | 1 | ||
| BOOT,DUST | 49006 | 49006-1040 | 1 | ||
| COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
| BOLT,LEVER SET,BLACK | 92002 | 92002-1322 | 1 | ||
| BOLT,SCREW,4X12 | 92002A | 92002-1323 | 1 | ||
| BOLT,SOCKET,6X20,BLACK | 92002B | 92002-1324 | 2 | ||
| BOLT,OIL,L=23 | 92002C | 92002-1888 | 4 | ||
| BOLT,OIL,L=37 | 92002D | 92002-1909 | 1 | ||
| SCREW,4MM | 92009 | 92009-1458 | 2 | ||
| NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 1 | ||
| CLAMP,HOSE | 92037 | 92037-1827 | 2 | ||
| CLAMP,CABLE | 92037A | 92037-1917 | 1 | ||
| BAND,L=186 | 92072 | 92072-056 | 1 | ||
| BOLT,10X10 | 92150 | 92150-1867 | 1 | ||
| BOLT-FLANGED,6X35 | 130 | 130J0635 | 2 |
