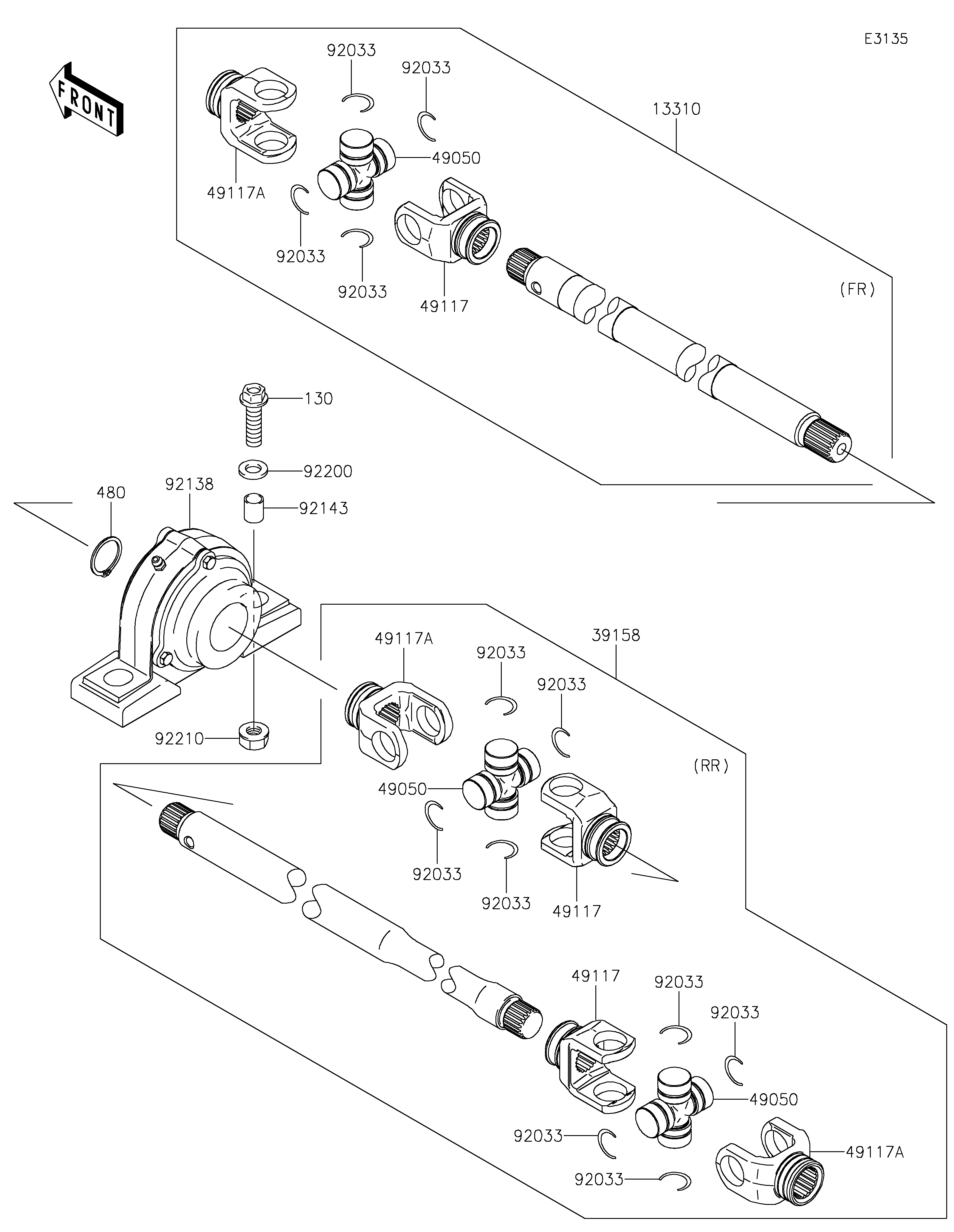

2025 MULE™ 4010 TRANS4x4® FE - Drive Shaft-Propeller
13310
39158
49050
49050
49050
49117
49117
49117
49117A
49117A
49117A
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92138
92143
92200
92210
130
480
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-ASSY | 13310 | 13310-0572 | 1 | ||
| SHAFT-ASSY-DRIVE,RR PROPELLER | 39158 | 39158-0303 | 1 | ||
| SPIDER | 49050 | 49050-1075 | 3 | ||
| YOKE,DRIVE | 49117 | 49117-0598 | 3 | ||
| YOKE,DRIVE | 49117A | 49117-0599 | 3 | ||
| RING-SNAP | 92033 | 92033-1030 | 12 | ||
| BEARING-COMP | 92138 | 92138-1052 | 1 | ||
| COLLAR,10.3X12.7X15 | 92143 | 92143-1634 | 2 | ||
| WASHER,10.5X19X2.3 | 92200 | 92200-1042 | 2 | ||
| NUT,LOCK,10MM | 92210 | 92210-1204 | 2 | ||
| BOLT-FLANGED,10X35 | 130 | 130BA1035 | 2 | ||
| CIRCLIP-TYPE-C,25MM | 480 | 480J2500 | 1 |
