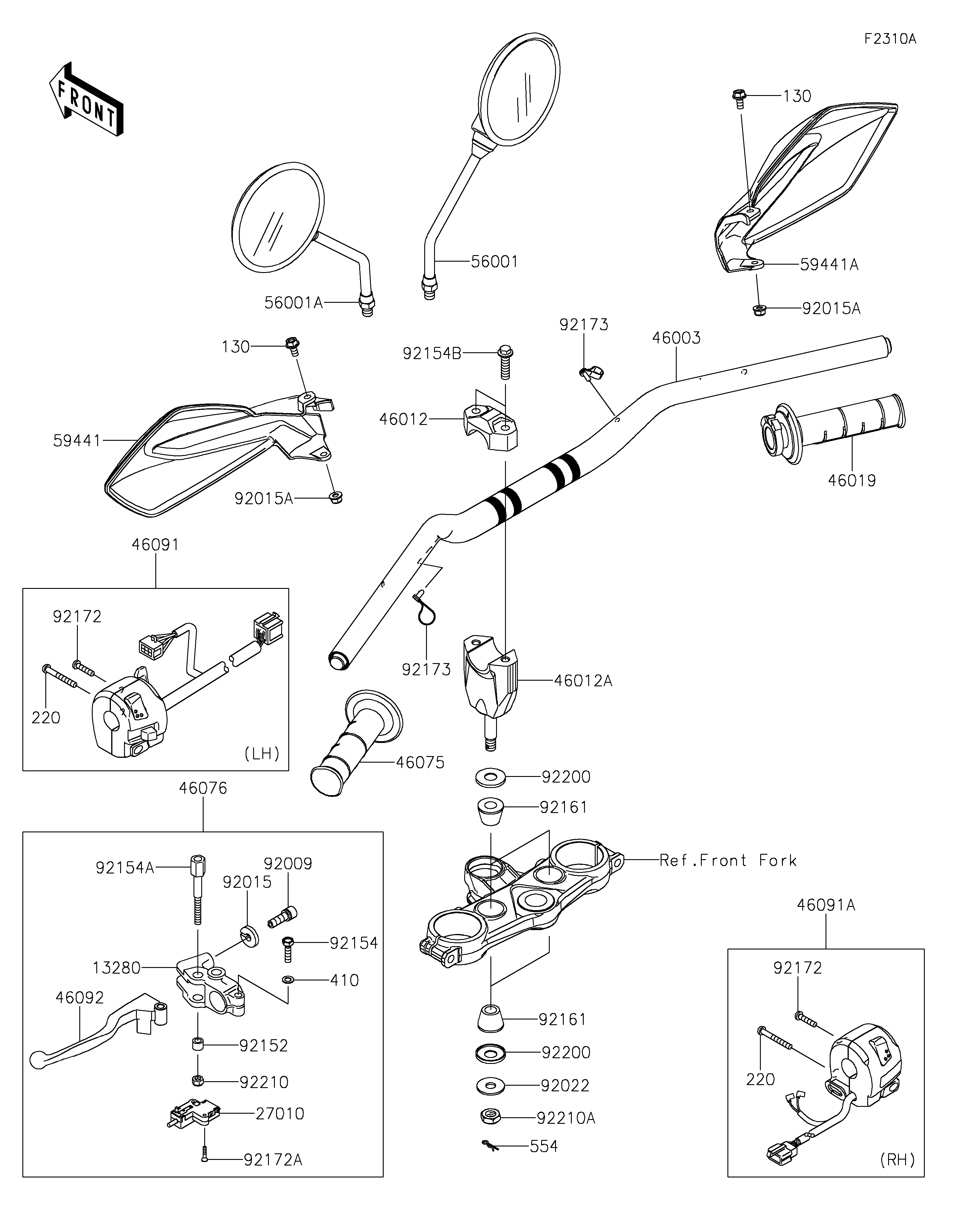

2024 KLX150L (Indonesia Only) - Handlebar(KRAAN/KSAAN)

DOWNLOAD PDF
SELECT A NEW PART
13280
27010
46003
46012
46012A
46019
46075
46076
46091
46091A
46092
56001
56001A
59441
59441A
92009
92015
92015A
92015A
92022
92152
92154
92154A
92154B
92161
92161
92172
92172
92172A
92173
92173
92200
92200
92210
92210A
130
130
220
220
410
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CLUTCH LEVER 13280 13280-0105 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
HANDLE,P.SILVER 46003 46003-0813-458 1
HOLDER-HANDLE,UPP,P.SILVER 46012 46012-0359-458 2
HOLDER-HANDLE,LWR,P.SILVER 46012A 46012-0360-458 2
GRIP-ASSY,THROTTLE 46019 46019-0027 1
GRIP,LH 46075 46075-0644 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0132 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0643 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-0644 1
LEVER-GRIP,CLUTCH 46092 46092-0050 1
MIRROR-ASSY,RH 56001 56001-0166 1
MIRROR-ASSY,LH 56001A 56001-0169 1
COVER-HANDLE,LH,EBONY 59441 59441-0039-68L 1
COVER-HANDLE,RH,EBONY 59441A 59441-0040-68L 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015 92015-1197 1
NUT,LOCK,FLANGED,6MM 92015A 92015-1603 2
WASHER,10.2X28X2 92022 92022-1088 2
COLLAR,6.5X10.5X8.5 92152 92152-1991 1
BOLT,UPSET,6X22 92154 92154-1422 1
BOLT 92154A 92154-1669 1
BOLT,FLANGED,8X30 92154B 92154-3762 4
DAMPER,12X26X19 92161 92161-2116 4
SCREW-PAN-CROS,5X22 92172 92172-0469 2
SCREW-CSK-CROS,3X16 92172A 92172-1187 2
CLAMP,SPEED,L=58 92173 92173-1077 2
WASHER,12.5X27.6X1.2 92200 92200-0872 4
NUT,LOCK,6MM 92210 92210-1551 1
NUT,LOCK,10MM 92210A 92210-1672 2
BOLT-FLANGED,6X12 130 130BB0612 2
SCREW-PAN-CROS,5X40 220 220AB0540 2
WASHER-PLAIN-SMALL,6MM 410 410AB0600 1
PIN-SNAP 554 554DA0800 2
