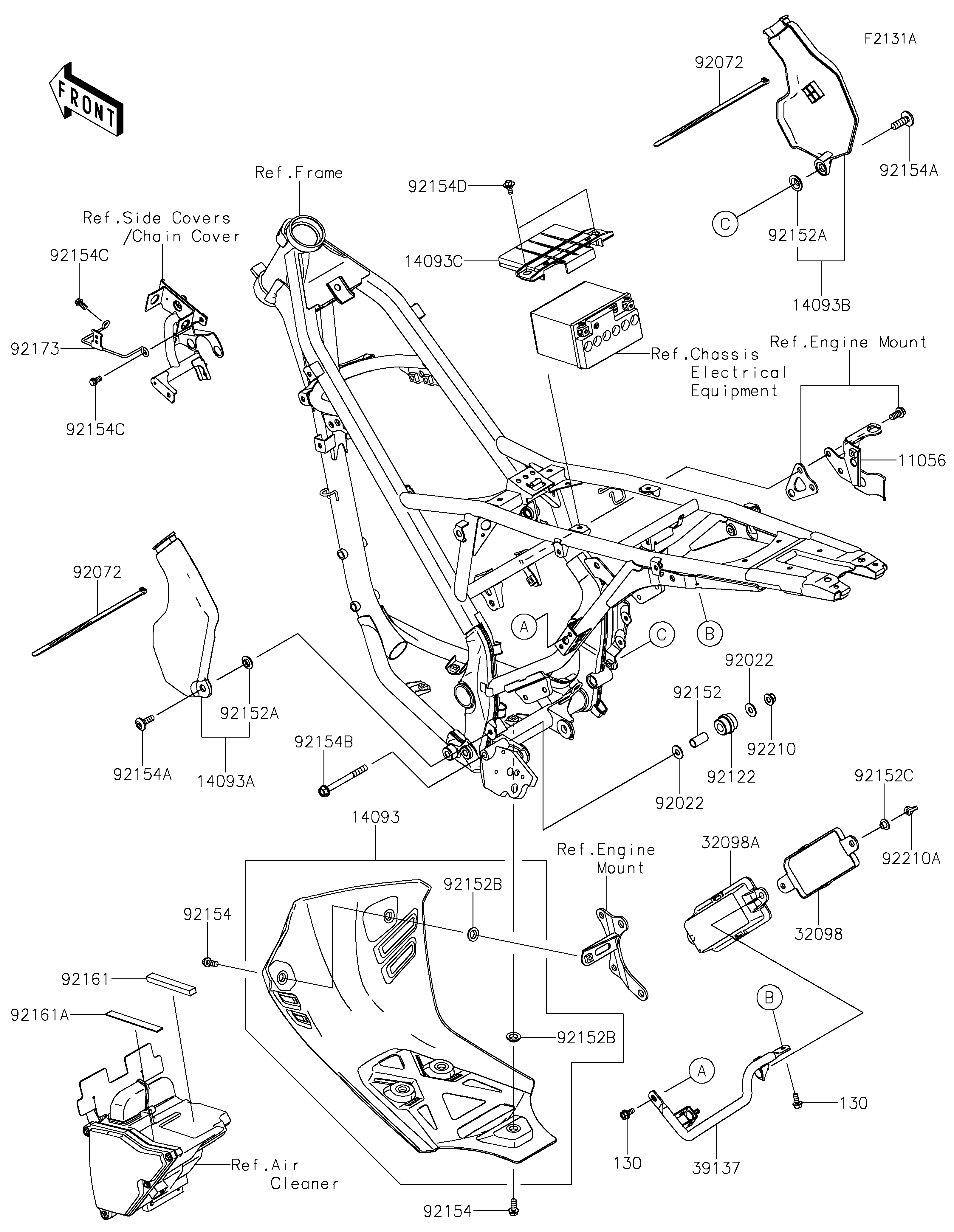

2024 KLX150L (Indonesia Only) - Frame Fittings(KRAAN/KSAAN)

DOWNLOAD PDF
SELECT A NEW PART
11056
14093
14093A
14093B
14093C
32098
32098A
39137
92022
92022
92072
92072
92122
92152
92152A
92152A
92152B
92152B
92152C
92154
92154
92154A
92154A
92154B
92154C
92154C
92154D
92161
92161A
92173
92210
92210A
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR 11056 11056-7776 1
COVER,ENGINE,F.BLACK 14093 14093-0237-6Z 1
COVER,PIVOT,LH,F.BLACK 14093A 14093-0238-6Z 1
COVER,PIVOT,RH,F.BLACK 14093B 14093-0239-6Z 1
COVER,BATTERY 14093C 14093-1247 1
CASE-TOOL,UPP 32098 32098-0027 1
CASE-TOOL,LWR 32098A 32098-0028 1
STAY-COMP 39137 39137-0724 1
WASHER,8.5X20X1.6 92022 92022-1561 2
BAND,L=202 92072 92072-1195 2
ROLLER,GUIDE CHAIN 92122 92122-0041 1
COLLAR,9.5X12.5X25 92152 92152-1881 1
COLLAR,6.6X9X4 92152A 92152-1982 2
COLLAR,8.8X16X4 92152B 92152-2185 5
COLLAR,6.3X8.3X16 92152C 92152-2463 2
BOLT,FLANGED,6X14 92154 92154-1231 5
BOLT,SOCKET,6X18 92154A 92154-1291 2
BOLT,FLANGED,8X80 92154B 92154-1355 1
BOLT,FLANGED,6X12 92154C 92154-2753 2
BOLT,FLANGED,6X13 92154D 92154-4411 2
DAMPER,12X88X8 92161 92161-2445 1
DAMPER,12X105X1.5 92161A 92161-2446 1
CLAMP 92173 92173-2492 1
NUT,LOCK,FLANGED,8MM 92210 92210-0140 1
NUT,WING,6MM 92210A 92210-1603 2
BOLT-FLANGED,6X14 130 130BA0614 2
