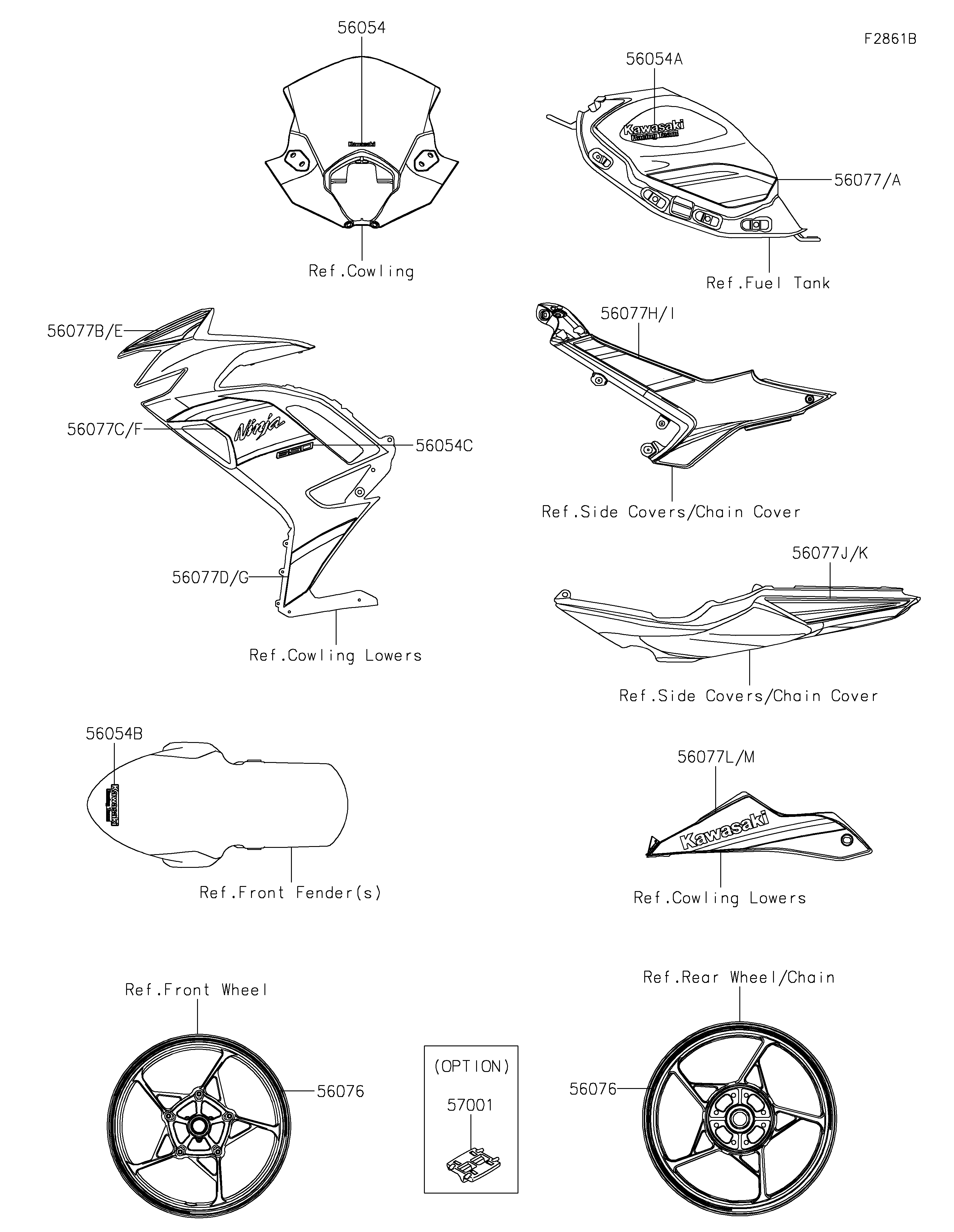

2025 Ninja 650 KRT Edition - Decals(L.Green)(RSFAN)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56076
56076
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
56077J
56077K
56077L
56077M
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,WINDSHIELD,KAWASAKI 56054 56054-2261 1
MARK,FUEL TANK,KRT 56054A 56054-4090 2
MARK,FR FENDER,KRT 56054B 56054-4091 1
MARK,SIDE COWL.,650 56054C 56054-4266 2
PATTERN,WHEEL,BLACK,6X1079 56076 56076-2170 4
PATTERN,FUEL TANK,LH 56077 56077-2105 1
PATTERN,FUEL TANK,RH 56077A 56077-2106 1
PATTERN,SIDE COWL.,LH,UPP 56077B 56077-2107 1
PATTERN,SIDE COWL.,LH,CNT 56077C 56077-2108 1
PATTERN,SIDE COWL.,LH,LWR 56077D 56077-2109 1
PATTERN,SIDE COWL.,RH,UPP 56077E 56077-2110 1
PATTERN,SIDE COWL.,RH,CNT 56077F 56077-2111 1
PATTERN,SIDE COWL.,RH,LWR 56077G 56077-2112 1
PATTERN,SIDE COVER,LH 56077H 56077-2113 1
PATTERN,SIDE COVER,RH 56077I 56077-2114 1
PATTERN,TAIL COVER,LH 56077J 56077-2115 1
PATTERN,TAIL COVER,RH 56077K 56077-2116 1
PATTERN,LWR COWL.,LH 56077L 56077-2117 1
PATTERN,LWR COWL.,RH 56077M 56077-2118 1
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
