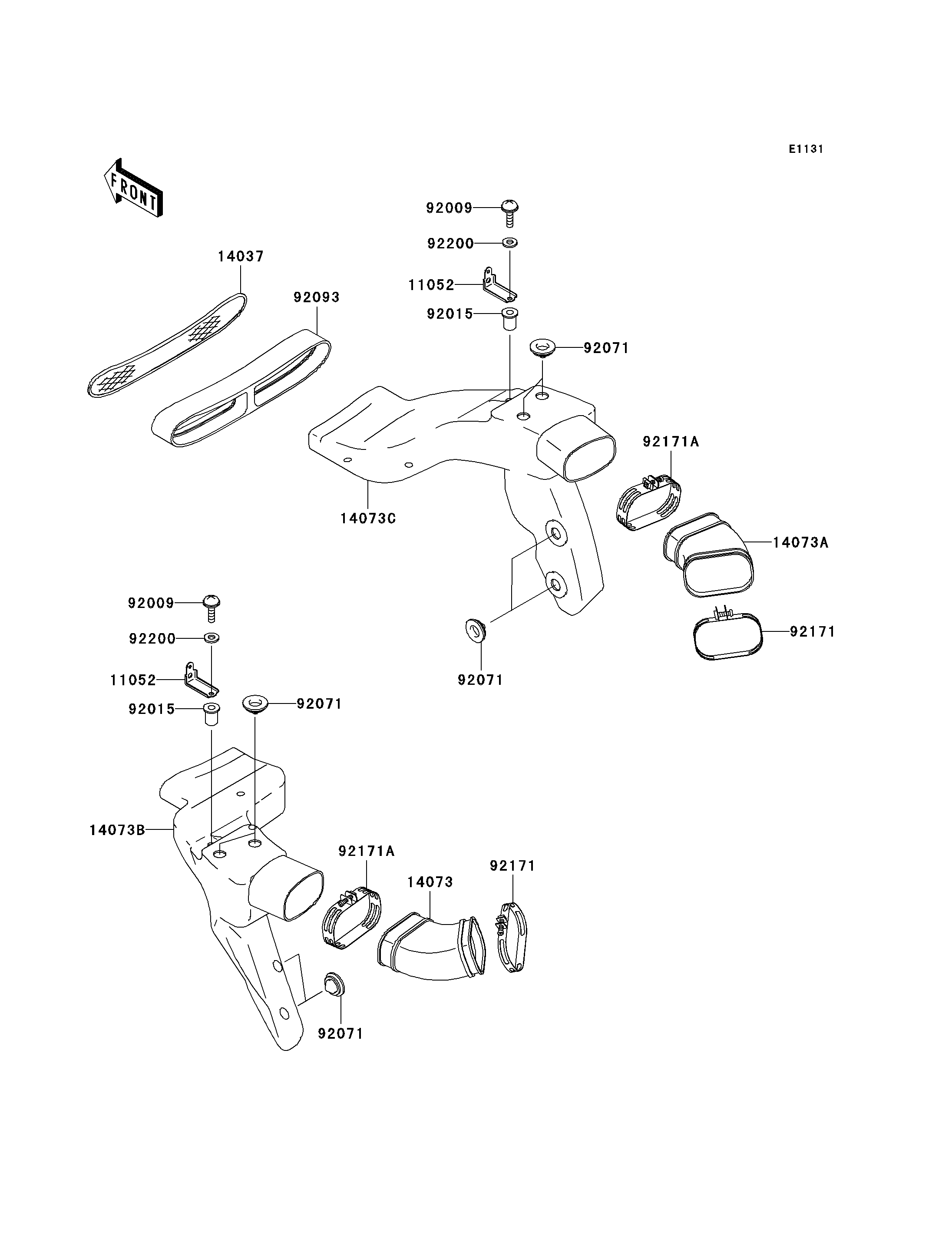

2004 Ninja® ZX™-12R - Air Duct

DOWNLOAD PDF
SELECT A NEW PART
11052
11052
14037
14073
14073A
14073B
14073C
92009
92009
92015
92015
92071
92071
92071
92071
92093
92171
92171
92171A
92171A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11052 11052-1182 2
SCREEN,RAM DUCT 14037 14037-1298 1
DUCT,LH 14073 14073-1748 1
DUCT,RH 14073A 14073-1750 1
DUCT,LH 14073B 14073-1811 1
DUCT,RH 14073C 14073-1812 1
SCREW,5X16 92009 92009-1909 2
NUT,WELL,5MM 92015 92015-1757 2
GROMMET 92071 92071-1222 8
SEAL,RAM DUCT 92093 92093-1557 1
CLAMP 92171 92171-1093 2
CLAMP 92171A 92171-1169 2
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
