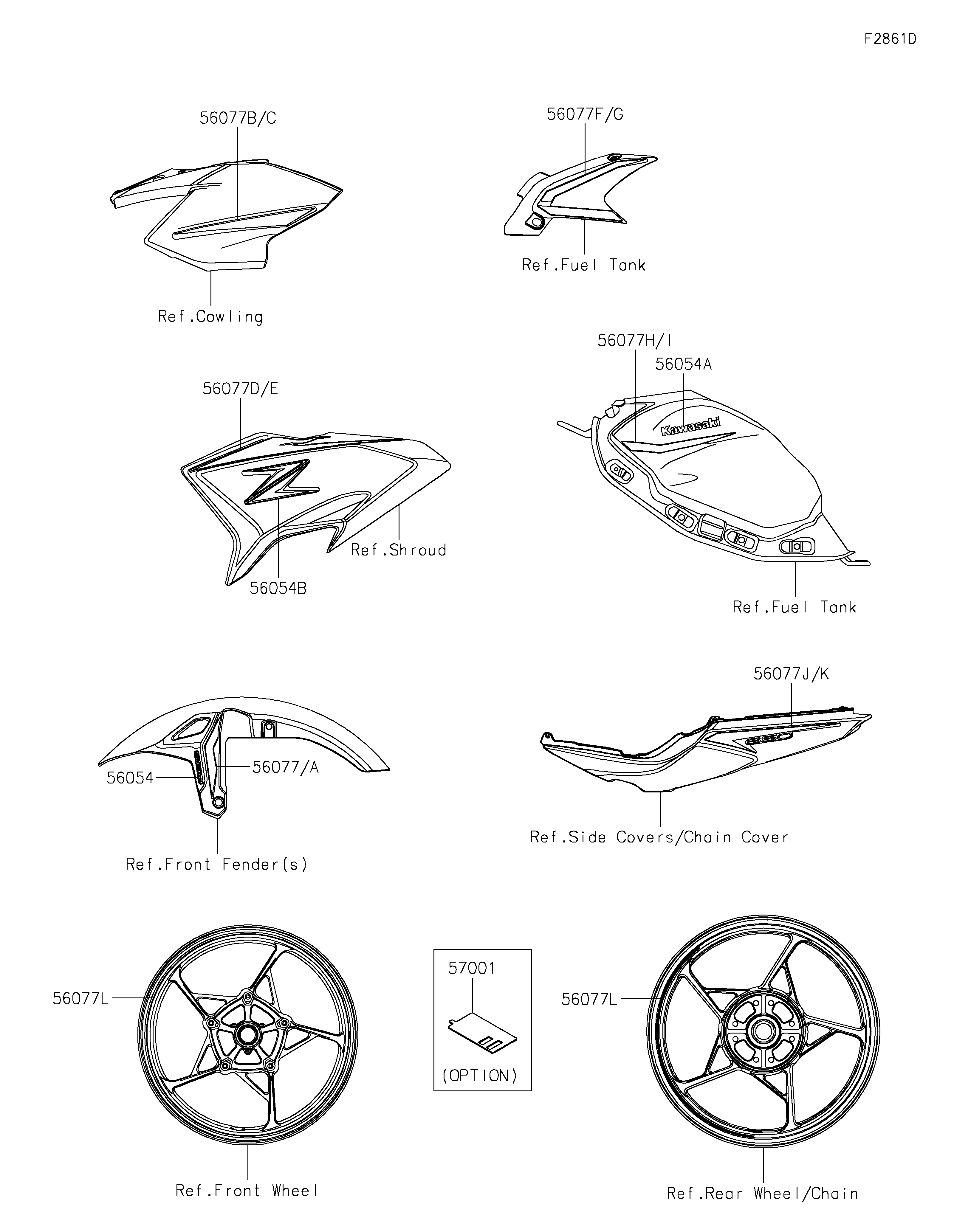

2025 Z650 - Decals(Black/Green)(NSFAN/NSFAL)
56054
56054A
56054B
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
56077J
56077K
56077L
56077L
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,ABS | 56054 | 56054-1413 | 2 | ||
| MARK,FUEL TANK,KAWASAKI | 56054A | 56054-2305 | 2 | ||
| MARK,SHROUD,Z | 56054B | 56054-4258 | 2 | ||
| PATTERN,FR FENDER,LH | 56077 | 56077-2038 | 1 | ||
| PATTERN,FR FENDER,RH | 56077A | 56077-2039 | 1 | ||
| PATTERN,UPP COWL.,LH | 56077B | 56077-2040 | 1 | ||
| PATTERN,UPP COWL.,RH | 56077C | 56077-2041 | 1 | ||
| PATTERN,SHROUD,LH | 56077D | 56077-2042 | 1 | ||
| PATTERN,SHROUD,RH | 56077E | 56077-2043 | 1 | ||
| PATTERN,TANK COVER,LH | 56077F | 56077-2044 | 1 | ||
| PATTERN,TANK COVER,RH | 56077G | 56077-2045 | 1 | ||
| PATTERN,FUEL TANK,LH | 56077H | 56077-2046 | 1 | ||
| PATTERN,FUEL TANK,RH | 56077I | 56077-2047 | 1 | ||
| PATTERN,TAIL COVER,LH | 56077J | 56077-2048 | 1 | ||
| PATTERN,TAIL COVER,RH | 56077K | 56077-2049 | 1 | ||
| PATTERN,WHEEL,BLK/GRN,930X12 | 56077L | 56077-2050 | 4 | ||
| RIM STRIPE APPLICATOR,10/12MM | 57001 | 57001-1836 | AR | (OPTION) |
| MARK,ABS | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SHROUD,Z | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56077A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,LH | |
| REF # | 56077B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,RH | |
| REF # | 56077C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,LH | |
| REF # | 56077D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,RH | |
| REF # | 56077E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,LH | |
| REF # | 56077F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,RH | |
| REF # | 56077G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56077H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56077I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56077J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56077K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,BLK/GRN,930X12 | |
| REF # | 56077L |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR,10/12MM | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
