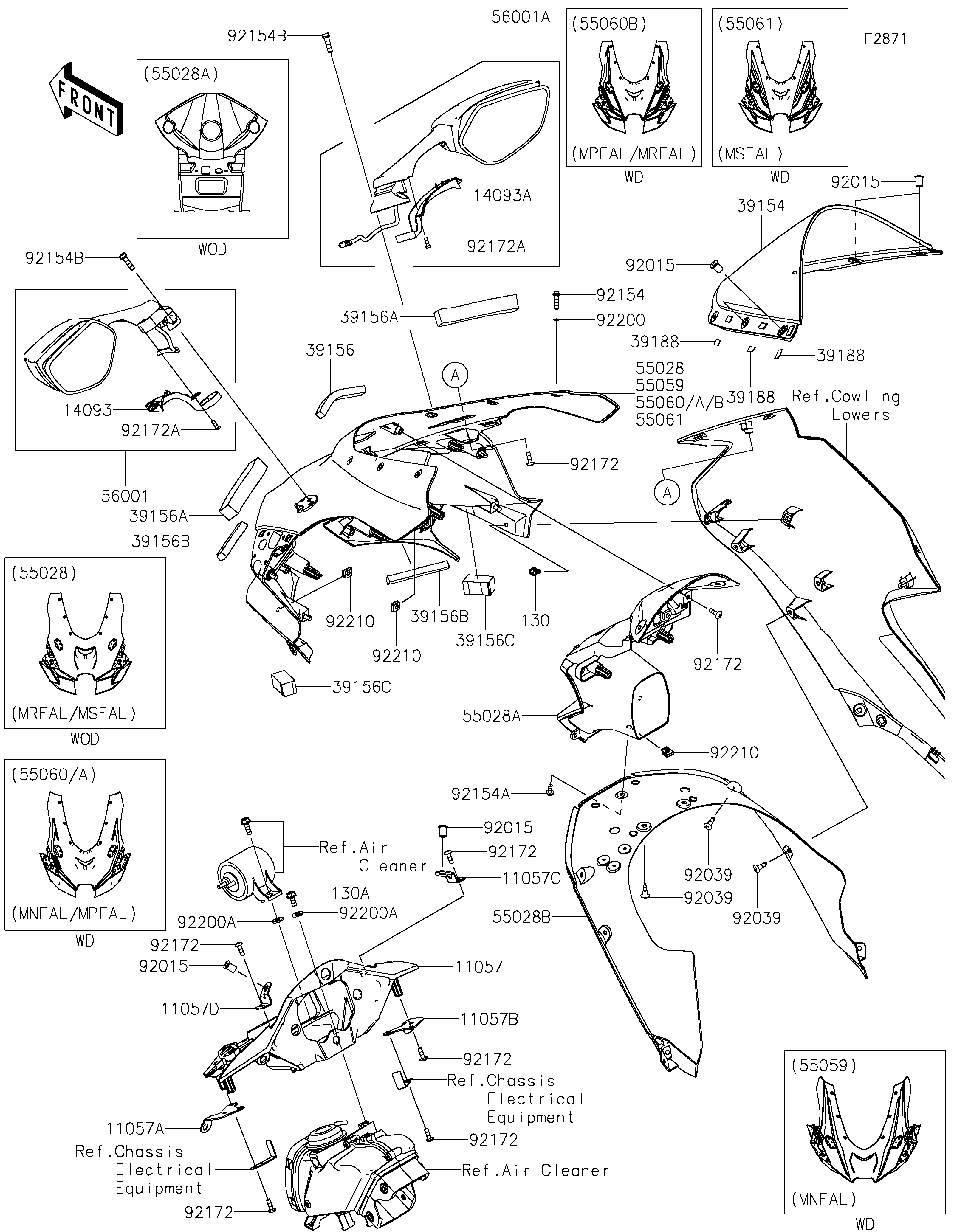

2025 NINJA® ZX™-10R - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
11057C
11057D
14093
14093A
39154
39156
39156A
39156A
39156B
39156B
39156C
39156C
39188
39188
39188
55028
55028A
55028B
55060A
55060B
55061
56001
56001A
92015
92015
92015
92015
92039
92039
92039
92154
92154A
92154B
92154B
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92200
92200A
92200A
92210
92210
92210
130
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,MIRROR&METER 11057 11057-4164 1
BRACKET,LH 11057A 11057-4205 1
BRACKET,RH 11057B 11057-4206 1
BRACKET,WINDSHIELD,RH 11057C 11057-4254 1
BRACKET,WINDSHIELD,LH 11057D 11057-4255 1
COVER,MIRROR,LH 14093 14093-0343 1
COVER,MIRROR,RH 14093A 14093-0344 1
WINDSHIELD 39154 39154-0403 1
PAD,10X15X95 39156 39156-2719 1
PAD,20X20X120 39156A 39156-2720 2
PAD,10X10X90 39156B 39156-2721 2
PAD,20X20X40 39156C 39156-2722 2
TAPE 39188 39188-0022 6
COWLING,UPP,CNT,EBONY 55028 55028-0756-H8 1
COWLING,RAM AIR 55028A 55028-0757 1
COWLING,FR,INNER 55028B 55028-0758 1
COWLING,UPP,CNT,M.D.BLACK+GRY 55060A 55060-5309-68X 1
COWLING,UPP,CNT,L.GREEN 55060B 55060-5310-777 1
COWLING,UPP,CNT,L.GREEN 55061 55061-5321-777 1
MIRROR-ASSY,LH 56001 56001-0425 1
MIRROR-ASSY,RH 56001A 56001-0426 1
NUT,WELL,5MM 92015 92015-1757 6
RIVET 92039 92039-0068 6
BOLT,SOCKET,5X20 92154 92154-0210 6
BOLT,SOCKET,5X12 92154A 92154-0917 1
BOLT,SOCKET,6X22,MEC 92154B 92154-2736 4
SCREW,TAPPING,5X16 92172 92172-0175 14
SCREW-PAN-CROS,4X10 92172A 92172-0871 2
WASHER,5.2X10X1.0 92200 92200-1820 6
WASHER,6.5X16X2 92200A 92200-1834 3
NUT 92210 92210-0571 3
BOLT-FLANGED,5X12 130 130BA0512 2
BOLT-FLANGED,6X14 130A 130BA0614 2
