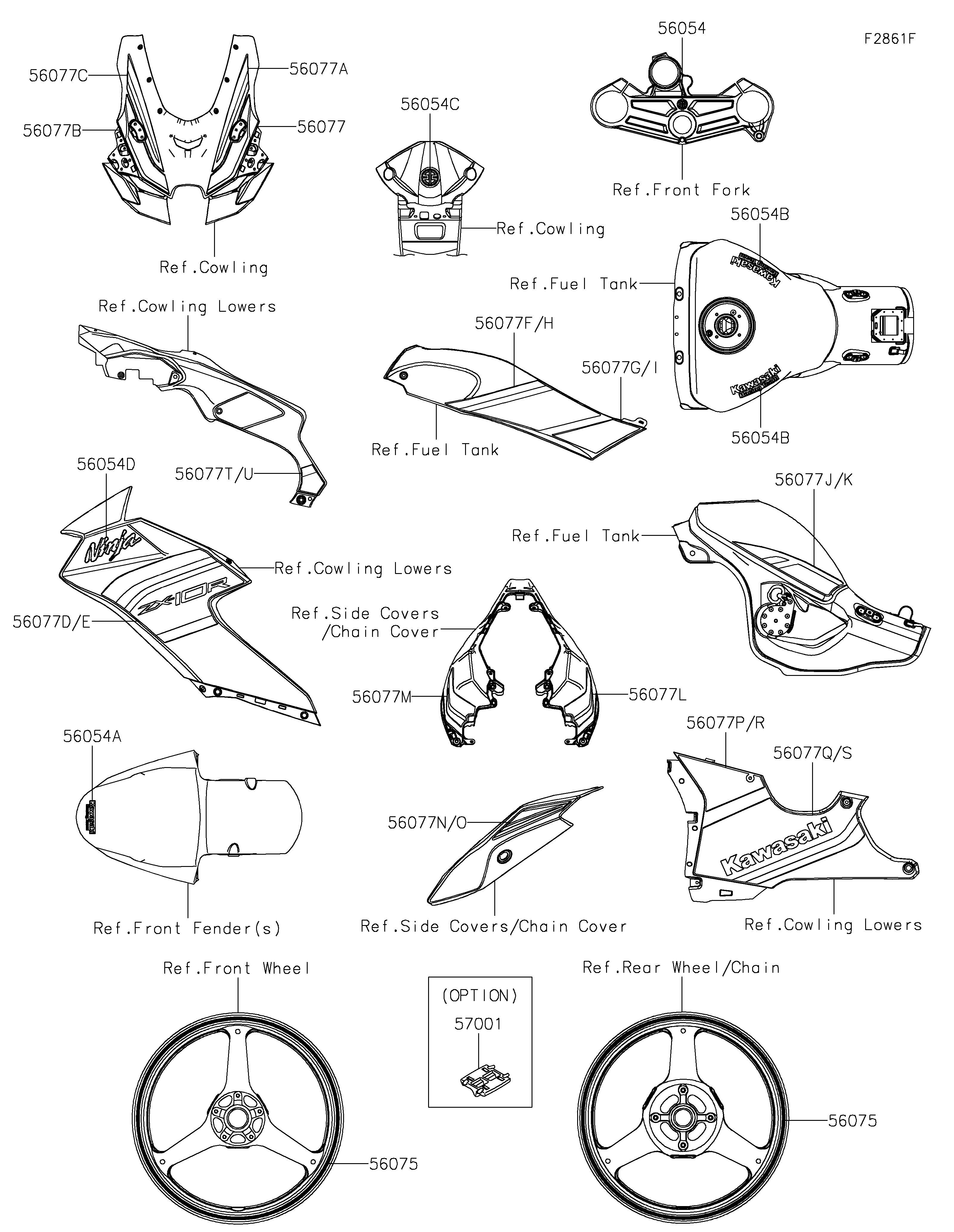

2025 NINJA® ZX™-10R - Decals(Green)(MSFAL)
56054
56054A
56054B
56054B
56054C
56054D
56075
56075
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
56077J
56077K
56077L
56077M
56077N
56077O
56077P
56077Q
56077R
56077S
56077T
56077U
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,UPP HOLDER,RIVER | 56054 | 56054-1628 | 1 | ||
| MARK,FR FENDER,KRT | 56054A | 56054-2821 | 1 | ||
| MARK,KAWASAKI RACING TEAM | 56054B | 56054-2869 | 2 | ||
| MARK,UPP COWL.,RIVER | 56054C | 56054-2900 | 1 | ||
| MARK,SIDE COWL.,NINJA | 56054D | 56054-4285 | 2 | ||
| PATTERN,WHEEL,GREEN,6X1079 | 56075 | 56075-1575 | 4 | ||
| PATTERN,UPP COWL.,LH,LWR | 56077 | 56077-2170 | 1 | ||
| PATTERN,UPP COWL.,LH,UPP | 56077A | 56077-2171 | 1 | ||
| PATTERN,UPP COWL.,RH,LWR | 56077B | 56077-2172 | 1 | ||
| PATTERN,UPP COWL.,RH,UPP | 56077C | 56077-2173 | 1 | ||
| PATTERN,SIDE COWL.,LH | 56077D | 56077-2174 | 1 | ||
| PATTERN,SIDE COWL.,RH | 56077E | 56077-2175 | 1 | ||
| PATTERN,TANK COVER,LH,UPP | 56077F | 56077-2176 | 1 | ||
| PATTERN,TANK COVER,LH,LWR | 56077G | 56077-2177 | 1 | ||
| PATTERN,TANK COVER,RH,UPP | 56077H | 56077-2178 | 1 | ||
| PATTERN,TANK COVER,RH,LWR | 56077I | 56077-2179 | 1 | ||
| PATTERN,FUEL TANK,LH | 56077J | 56077-2180 | 1 | ||
| PATTERN,FUEL TANK,RH | 56077K | 56077-2181 | 1 | ||
| PATTERN,TAIL COVER,LH | 56077L | 56077-2182 | 1 | ||
| PATTERN,TAIL COVER,RH | 56077M | 56077-2183 | 1 | ||
| PATTERN,SIDE COVER,LH | 56077N | 56077-2184 | 1 | ||
| PATTERN,SIDE COVER,RH | 56077O | 56077-2185 | 1 | ||
| PATTERN,LWR COWL.,LH,UPP | 56077P | 56077-2186 | 1 | ||
| PATTERN,LWR COWL.,LH,LWR | 56077Q | 56077-2187 | 1 | ||
| PATTERN,LWR COWL.,RH,UPP | 56077R | 56077-2188 | 1 | ||
| PATTERN,LWR COWL.,RH,LWR | 56077S | 56077-2189 | 1 | ||
| PATTERN,SIDE COWL.,LH | 56077T | 56077-2190 | 1 | ||
| PATTERN,SIDE COWL.,RH | 56077U | 56077-2191 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
