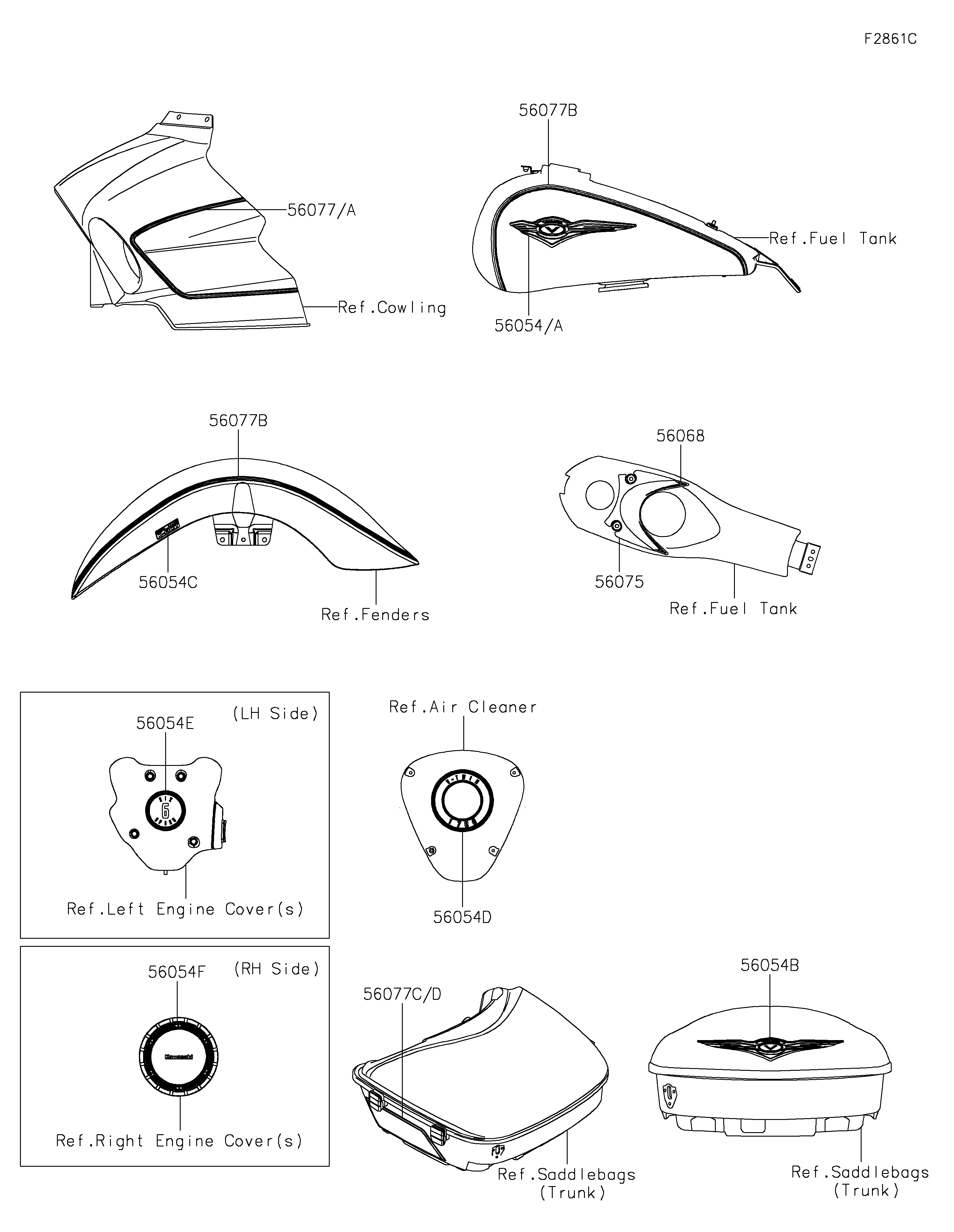

2025 Vulcan 1700 Voyager ABS - Decals(BSFNN/BSFNL)
56054
56054A
56054B
56054C
56054D
56054E
56054F
56068
56075
56077
56077A
56077B
56077B
56077C
56077D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH | 56054 | 56054-0300 | 1 | ||
| MARK,FUEL TANK,RH | 56054A | 56054-0301 | 1 | ||
| MARK,REAR TRUNK | 56054B | 56054-0302 | 1 | ||
| MARK,FR FENDER,ABS | 56054C | 56054-0455 | 2 | ||
| MARK,A/C,V-TWIN 1700 | 56054D | 56054-1147 | 2 | ||
| MARK,GEN. COVER,6 SPEED | 56054E | 56054-1148 | 1 | ||
| MARK,E/G COVER,KAWASAKI | 56054F | 56054-1149 | 1 | ||
| PATTERN,TANK COVER,LWR | 56068 | 56068-1882 | 1 | ||
| PATTERN,TANK COVER,UPP | 56075 | 56075-0592 | 1 | ||
| PATTERN,UPP COWL.,LH | 56077 | 56077-2361 | 1 | ||
| PATTERN,UPP COWL.,RH | 56077A | 56077-2362 | 1 | ||
| PATTERN,GOLD,8.5X910 | 56077B | 56077-2363 | 4 | ||
| PATTERN,CNT BAG,LH | 56077C | 56077-2364 | 1 | ||
| PATTERN,CNT BAG,RH | 56077D | 56077-2365 | 1 |
