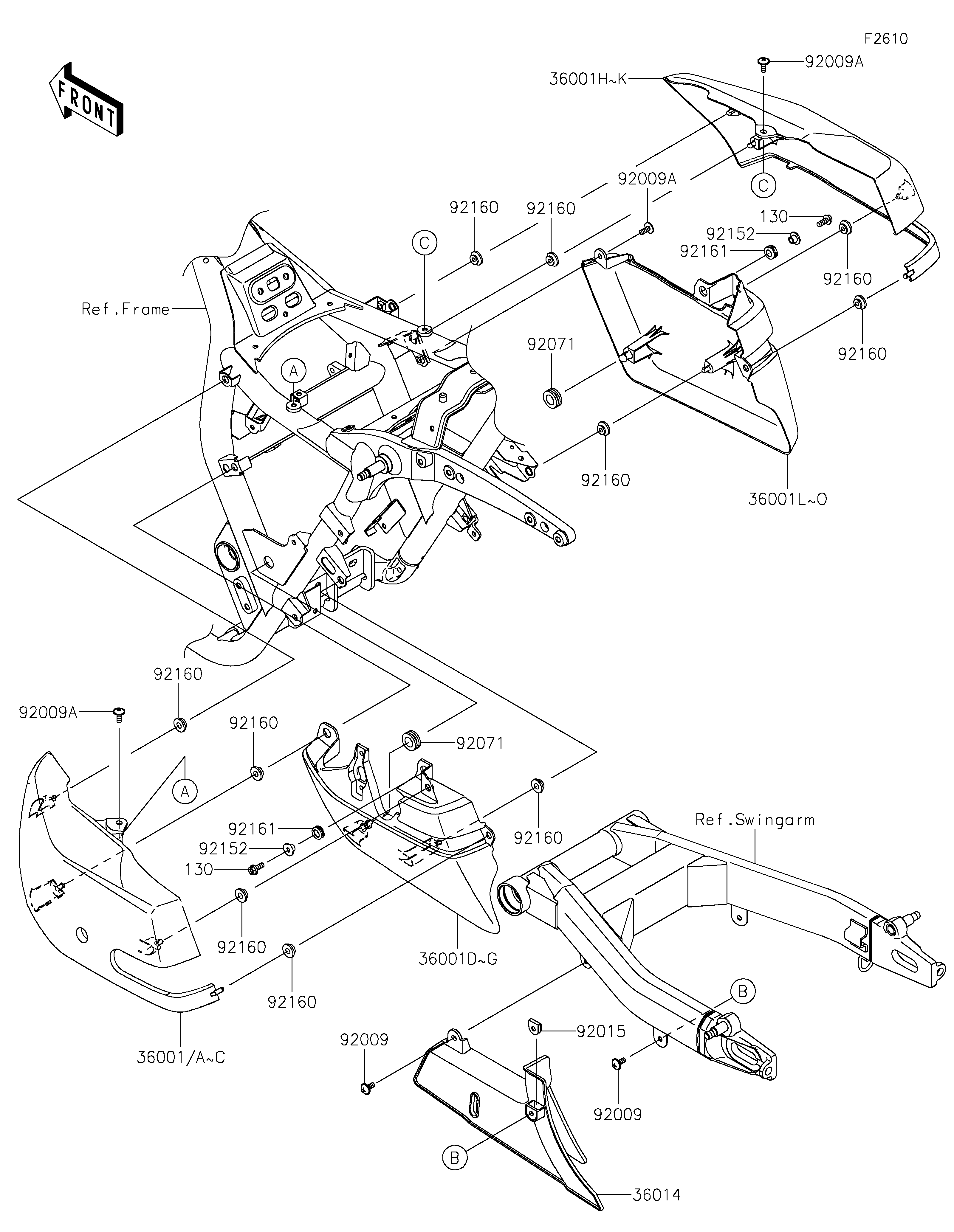

2025 Vulcan 1700 Voyager ABS - Side Covers/Chain Cover
36001A
36001C
36001D
36001E
36001I
36001K
36001L
36001M
36014
92009
92009
92009A
92009A
92009A
92015
92071
92071
92152
92152
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92161
92161
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,UPP,M.C.GRAY | 36001A | 36001-0139-51A | 1 | ||
| COVER-SIDE,LH,UPP,M.O.BLUE | 36001C | 36001-0139-726 | 1 | ||
| COVER-SIDE,LH,LWR,M.M.GRAY | 36001D | 36001-0140-25X | 1 | ||
| COVER-SIDE,LH,LWR,M.G.GRAY | 36001E | 36001-0140-45W | 1 | ||
| COVER-SIDE,RH,UPP,M.C.GRAY | 36001I | 36001-0141-51A | 1 | ||
| COVER-SIDE,RH,UPP,M.O.BLUE | 36001K | 36001-0141-726 | 1 | ||
| COVER-SIDE,RH,LWR,M.M.GRAY | 36001L | 36001-0142-25X | 1 | ||
| COVER-SIDE,RH,LWR,M.G.GRAY | 36001M | 36001-0142-45W | 1 | ||
| CASE-CHAIN | 36014 | 36014-0042 | 1 | ||
| SCREW,6X14 | 92009 | 92009-1555 | 2 | ||
| SCREW,6X16 | 92009A | 92009-1621 | 3 | ||
| NUT,CLIP,6MM | 92015 | 92015-1904 | 1 | ||
| GROMMET | 92071 | 92071-1131 | 2 | ||
| COLLAR | 92152 | 92152-0295 | 2 | ||
| DAMPER | 92160 | 92160-1613 | 10 | ||
| DAMPER | 92161 | 92161-0266 | 2 | ||
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 2 |
