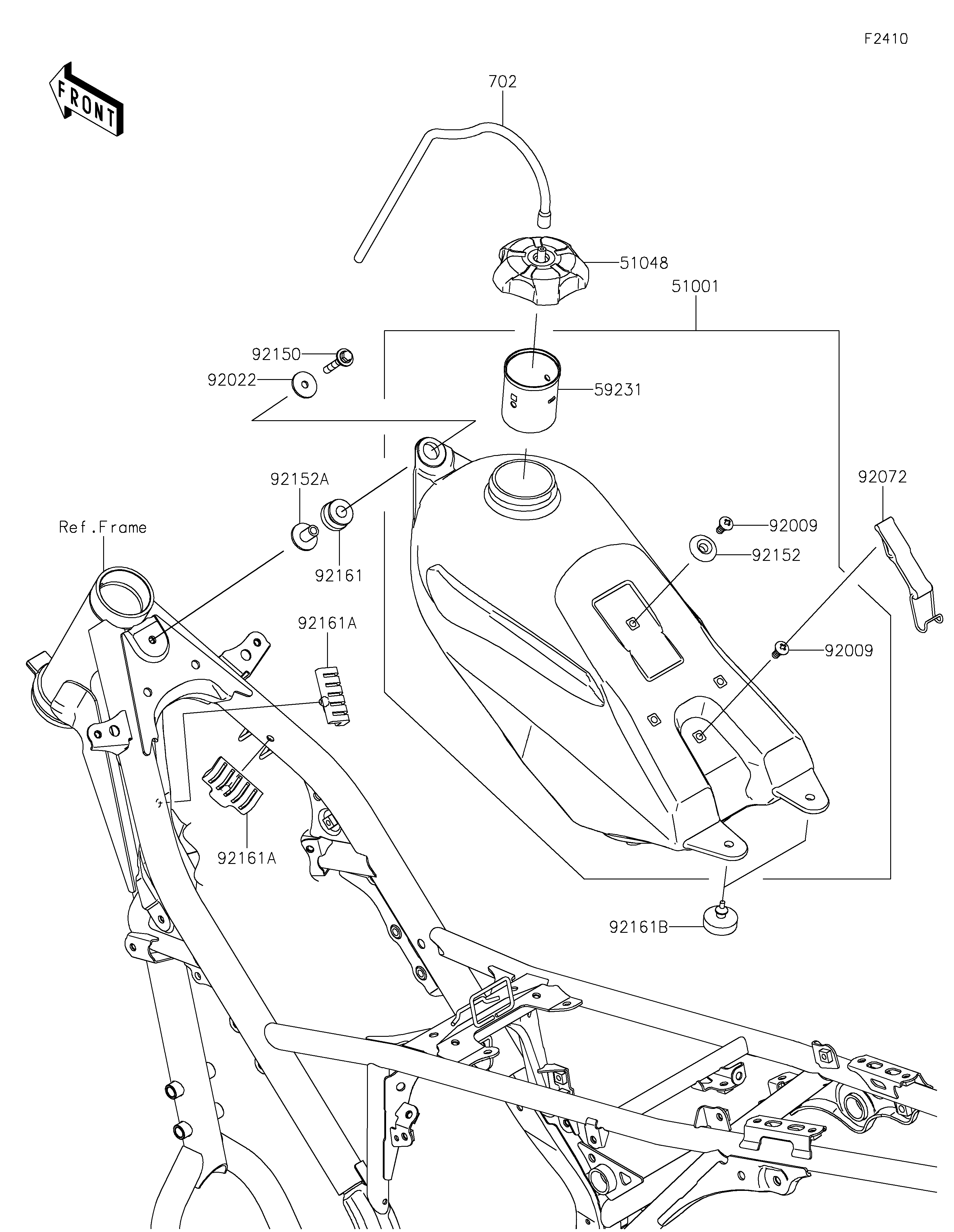

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-COMP-FUEL | 51001 | 51001-0875 | 1 | _________________________________________CN,US | |
| CAP-ASSY-TANK | 51048 | 51048-0576 | 1 | _________________________________________CN,US | |
| FILLER | 59231 | 59231-0042 | 1 | _________________________________________CN,US | |
| SCREW,6MM | 92009 | 92009-1971 | 2 | _________________________________________CN,US | |
| WASHER,6.5X24X2 | 92022 | 92022-1690 | 1 | _________________________________________CN,US | |
| BAND,FUEL TANK | 92072 | 92072-0842 | 1 | _________________________________________CN,US | |
| BOLT,FLANGED,6X35 | 92150 | 92150-1527 | 1 | _________________________________________CN,US | |
| COLLAR | 92152 | 92152-0569 | 1 | _________________________________________CN,US | |
| COLLAR,6.8X10X16 | 92152A | 92152-2666 | 1 | _________________________________________CN,US | |
| DAMPER,FUEL TANK,FR | 92161 | 92161-1392 | 1 | _________________________________________CN,US | |
| DAMPER | 92161A | 92161-2166 | 2 | _________________________________________CN,US | |
| DAMPER | 92161B | 92161-2203 | 2 | _________________________________________CN,US | |
| TUBE-RUBBER,5X8X400 | 702 | 702A05400 | 1 | _________________________________________CN,US |
| TANK-COMP-FUEL | |
| REF # | 51001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| CAP-ASSY-TANK | |
| REF # | 51048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| FILLER | |
| REF # | 59231 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| SCREW,6MM | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| WASHER,6.5X24X2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| BAND,FUEL TANK | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| BOLT,FLANGED,6X35 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| COLLAR,6.8X10X16 | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| DAMPER,FUEL TANK,FR | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| DAMPER | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| TUBE-RUBBER,5X8X400 | |
| REF # | 702 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
