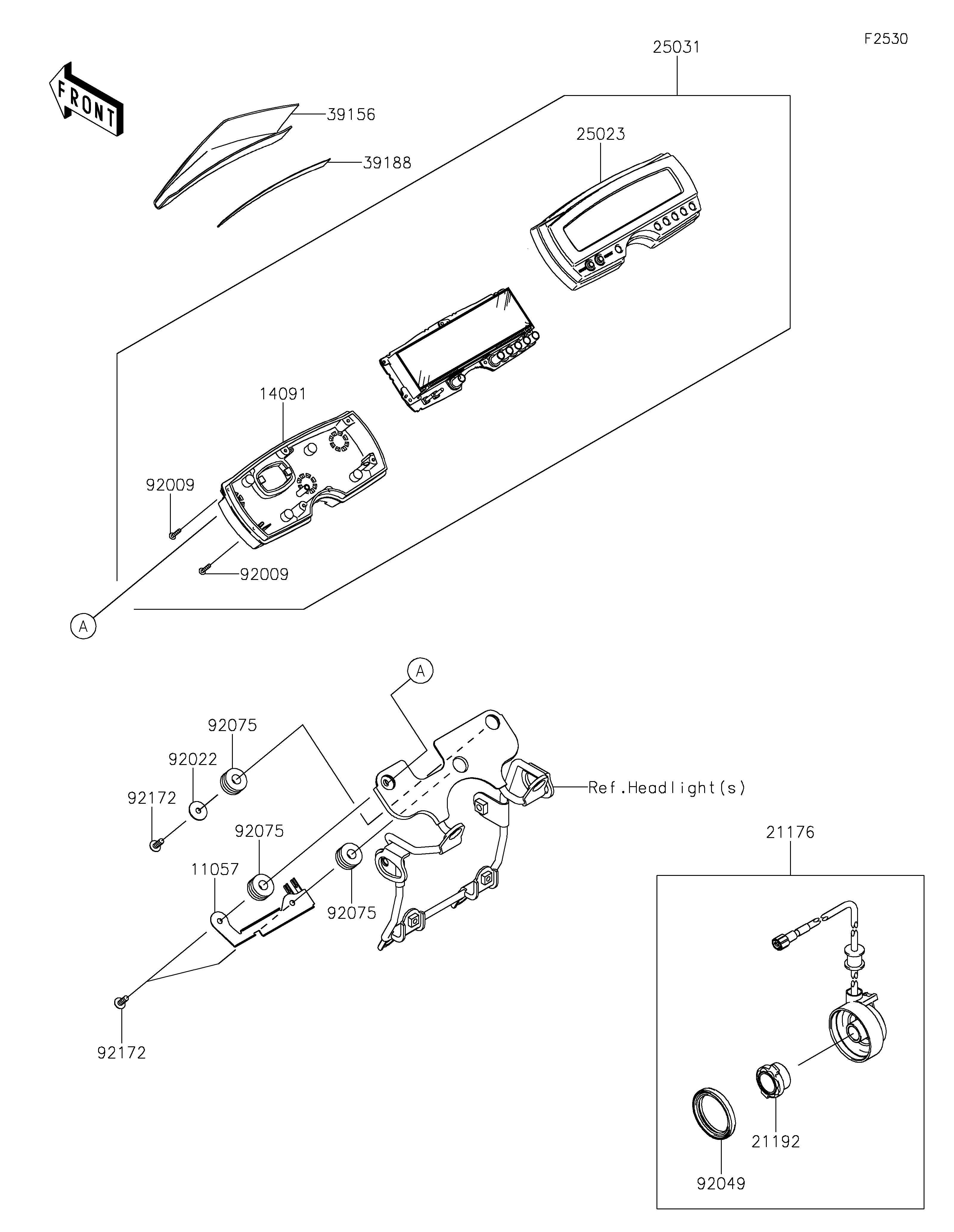

Parts Diagrams |
11057
14091
21176
21192
25023
25031
39156
39188
92009
92009
92022
92049
92075
92075
92075
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11057 | 11057-7351 | 1 | ||
| COVER,METER,LWR | 14091 | 14091-0874 | 1 | ||
| SENSOR,SPEED | 21176 | 21176-0757 | 1 | ||
| MAGNET,SPEED SENSOR | 21192 | 21192-0004 | 1 | ||
| COVER-METER CASE,UPP | 25023 | 25023-0146 | 1 | ||
| METER-ASSY,LCD | 25031 | 25031-0942 | 1 | ||
| PAD,HEAD LAMP | 39156 | 39156-0478 | 1 | ||
| TAPE | 39188 | 39188-0012 | 1 | ||
| SCREW,TAPPING,3X16 | 92009 | 92009-1391 | 7 | ||
| WASHER,5.5X20X1.2 | 92022 | 92022-104 | 1 | ||
| SEAL-OIL,METER GEAR CASE | 92049 | 92049-1172 | 1 | ||
| DAMPER,10X24X12 | 92075 | 92075-1690 | 3 | ||
| SCREW,TAPPING,5X14 | 92172 | 92172-0265 | 3 |
| BRACKET | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,METER,LWR | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,SPEED | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAGNET,SPEED SENSOR | |
| REF # | 21192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-METER CASE,UPP | |
| REF # | 25023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER-ASSY,LCD | |
| REF # | 25031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,HEAD LAMP | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TAPE | |
| REF # | 39188 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,3X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.5X20X1.2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,METER GEAR CASE | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X24X12 | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X14 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
