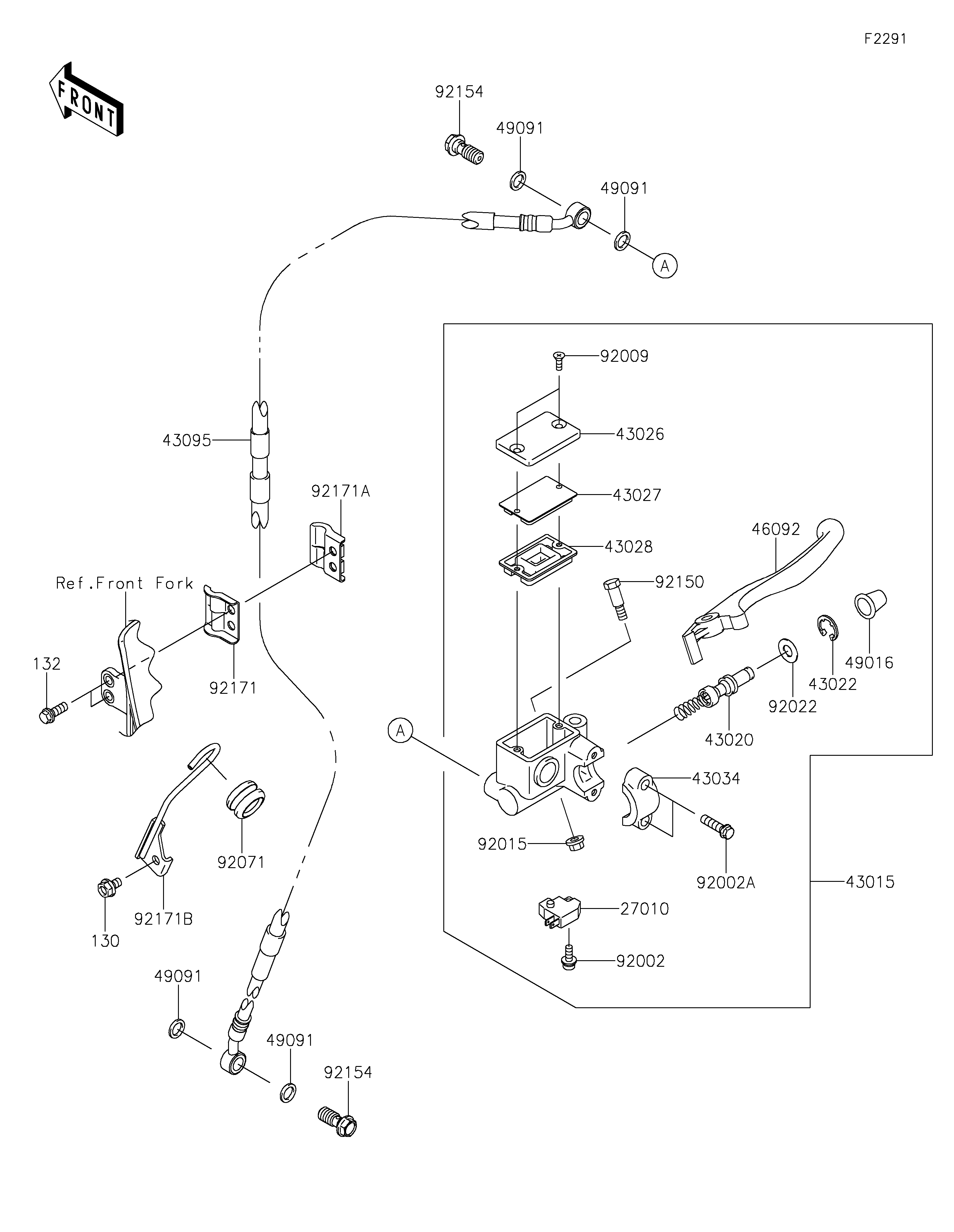

2022 KLX300 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
27010
43015
43020
43022
43026
43027
43028
43034
43095
46092
49016
49091
49091
49091
49091
92002
92002A
92009
92015
92022
92071
92150
92154
92154
92171
92171A
92171B
130
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH,BRAKE 27010 27010-0762 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0771 1
PISTON-COMP-BRAKE 43020 43020-1126 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1082 1
PLATE-DIAPHRAGM 43027 43027-1057 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE,FR 43095 43095-0687 1
LEVER-GRIP,FRONT BRAKE 46092 46092-1140 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT 92002A 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM 92015 92015-1528 1
WASHER 92022 92022-1814 1
GROMMET,15X20X16 92071 92071-0056 1
BOLT,LEVER SET 92150 92150-1451 1
BOLT,FLANGED,10X23 92154 92154-0732 2
CLAMP,BRAKE HOSE 92171 92171-1626 1
CLAMP,BRAKE HOSE 92171A 92171-1627 1
CLAMP,BRAKE HOSE 92171B 92171-1839 1
BOLT-FLANGED,6X10 130 130BB0610 1
BOLT-FLANGED-SMALL,6X16 132 132BB0616 2
