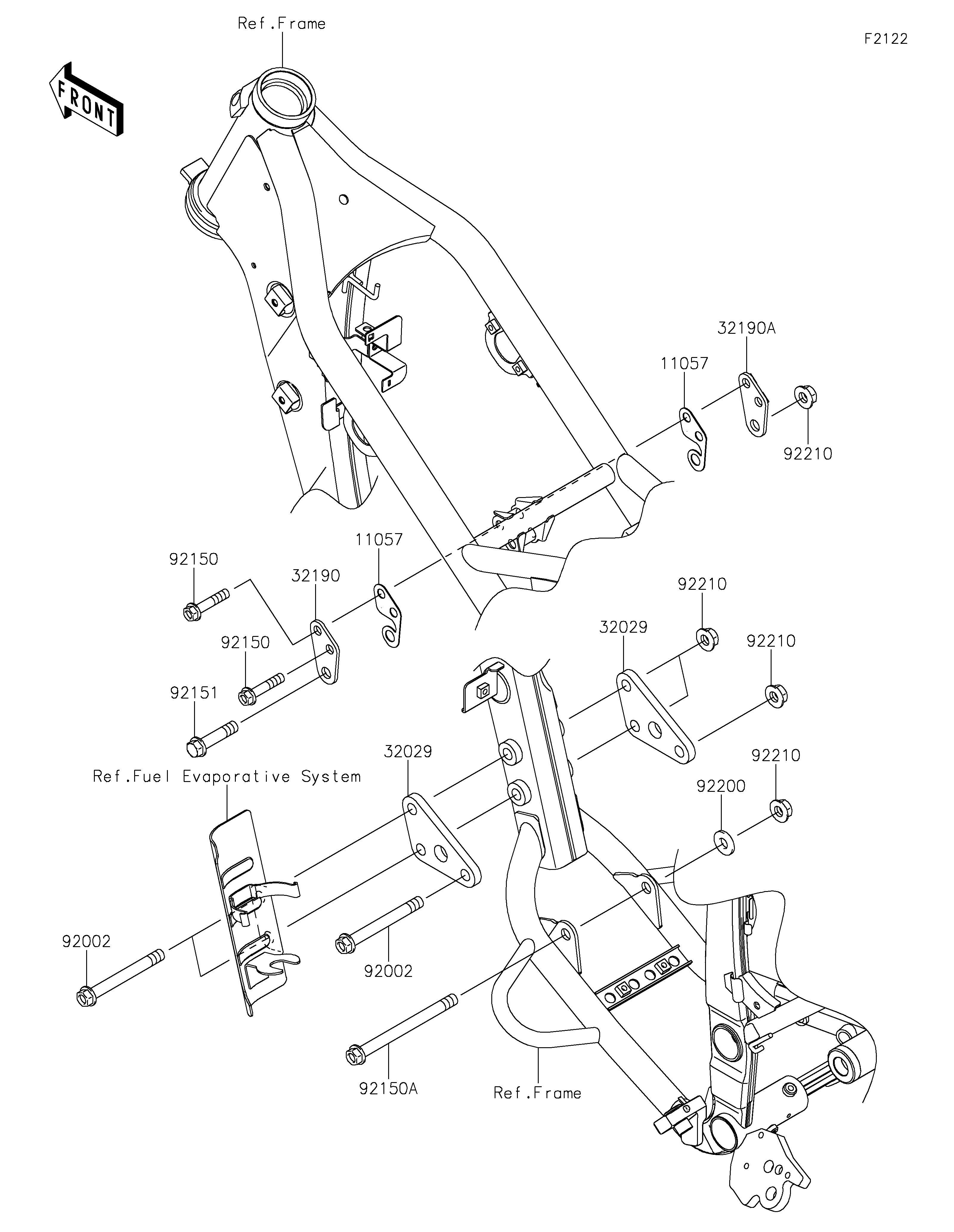

Parts Diagrams |
11057
11057
32029
32029
32190
32190A
92002
92002
92150
92150
92150A
92151
92200
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11057 | 11057-3705 | 2 | ||
| BRACKET-ENGINE,FR | 32029 | 32029-1855 | 2 | ||
| BRACKET-ENGINE,HEAD,LH | 32190 | 32190-0416 | 1 | ||
| BRACKET-ENGINE,HEAD,RH | 32190A | 32190-0417 | 1 | ||
| BOLT,10X90 | 92002 | 92002-1674 | 3 | ||
| BOLT,FLANGED,8X42 | 92150 | 92150-1415 | 2 | ||
| BOLT,FLANGED,10X120 | 92150A | 92150-1642 | 1 | ||
| BOLT,FLANGED,10X45 | 92151 | 92151-1413 | 1 | ||
| WASHER,10.2X23X2.5 | 92200 | 92200-0211 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1080 | 5 |
| BRACKET | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,FR | |
| REF # | 32029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,HEAD,LH | |
| REF # | 32190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,HEAD,RH | |
| REF # | 32190A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X90 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X42 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X120 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X45 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.2X23X2.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
