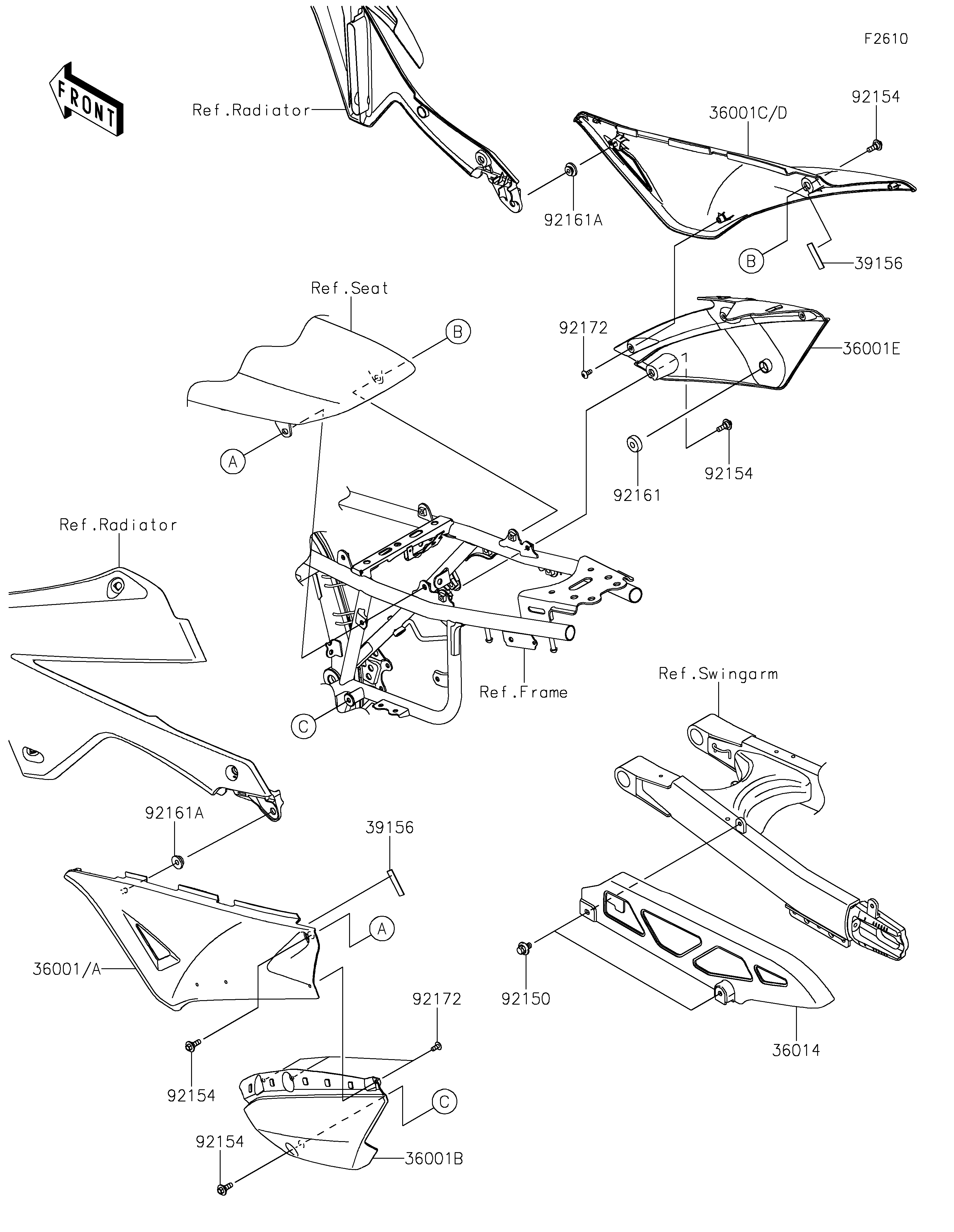

2024 KLX®300SM - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36001
36001A
36001B
36001C
36001D
36001E
36014
39156
39156
92150
92154
92154
92154
92154
92161
92161A
92161A
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,UPP,B.GRAY 36001 36001-0743-67A 1
COVER-SIDE,LH,UPP,P.BLUE 36001A 36001-0743-67E 1
COVER-SIDE,LH,LWR 36001B 36001-0744 1
COVER-SIDE,RH,UPP,B.GRAY 36001C 36001-0745-67A 1
COVER-SIDE,RH,UPP,P.BLUE 36001D 36001-0745-67E 1
COVER-SIDE,RH,LWR 36001E 36001-0746 1
CASE-CHAIN 36014 36014-0050 1
PAD,12X40 39156 39156-2323 2
BOLT,6X12 92150 92150-1435 2
BOLT,6X14 92154 92154-7137 4
DAMPER 92161 92161-0605 1
DAMPER 92161A 92161-1810 2
SCREW,5X12 92172 92172-0821 6
