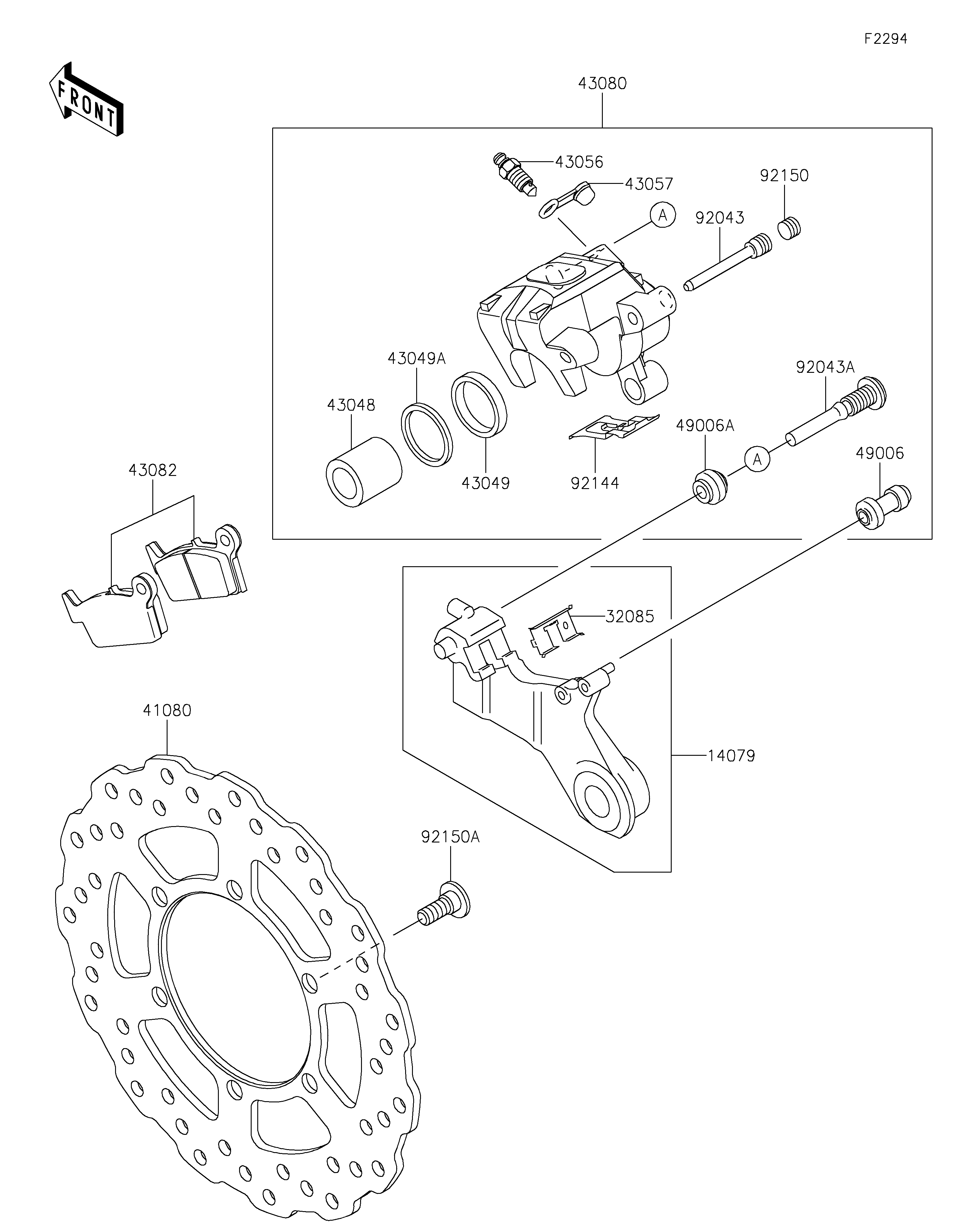

Parts Diagrams |
14079
32085
41080
43048
43049
43049A
43056
43057
43080
43082
49006
49006A
92043
92043A
92144
92150
92150A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER-ASSY,REAR CALIPER | 14079 | 14079-0030 | 1 | ||
| STOPPER,PAD | 32085 | 32085-1386 | 1 | ||
| DISC,RR,BLACK | 41080 | 41080-0116-11H | 1 | ||
| PISTON-CALIPER | 43048 | 43048-1068 | 1 | ||
| PACKING,PISTON SEAL | 43049 | 43049-1060 | 1 | ||
| PACKING,PISTON SEAL | 43049A | 43049-1061 | 1 | ||
| BREATHER-BRAKE | 43056 | 43056-0004 | 1 | ||
| CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
| CALIPER-SUB-ASSY,RR,BLACK | 43080 | 43080-0237-25S | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-0090 | 1 | ||
| BOOT,CALIPER | 49006 | 49006-1088 | 1 | ||
| BOOT,CALIPER | 49006A | 49006-1242 | 1 | ||
| PIN,HANGER | 92043 | 92043-1507 | 1 | ||
| PIN | 92043A | 92043-1508 | 1 | ||
| SPRING,PAD | 92144 | 92144-1819 | 1 | ||
| BOLT,PLUG | 92150 | 92150-1692 | 1 | ||
| BOLT,DISC PLATE,8X15 | 92150A | 92150-1811 | 6 |
