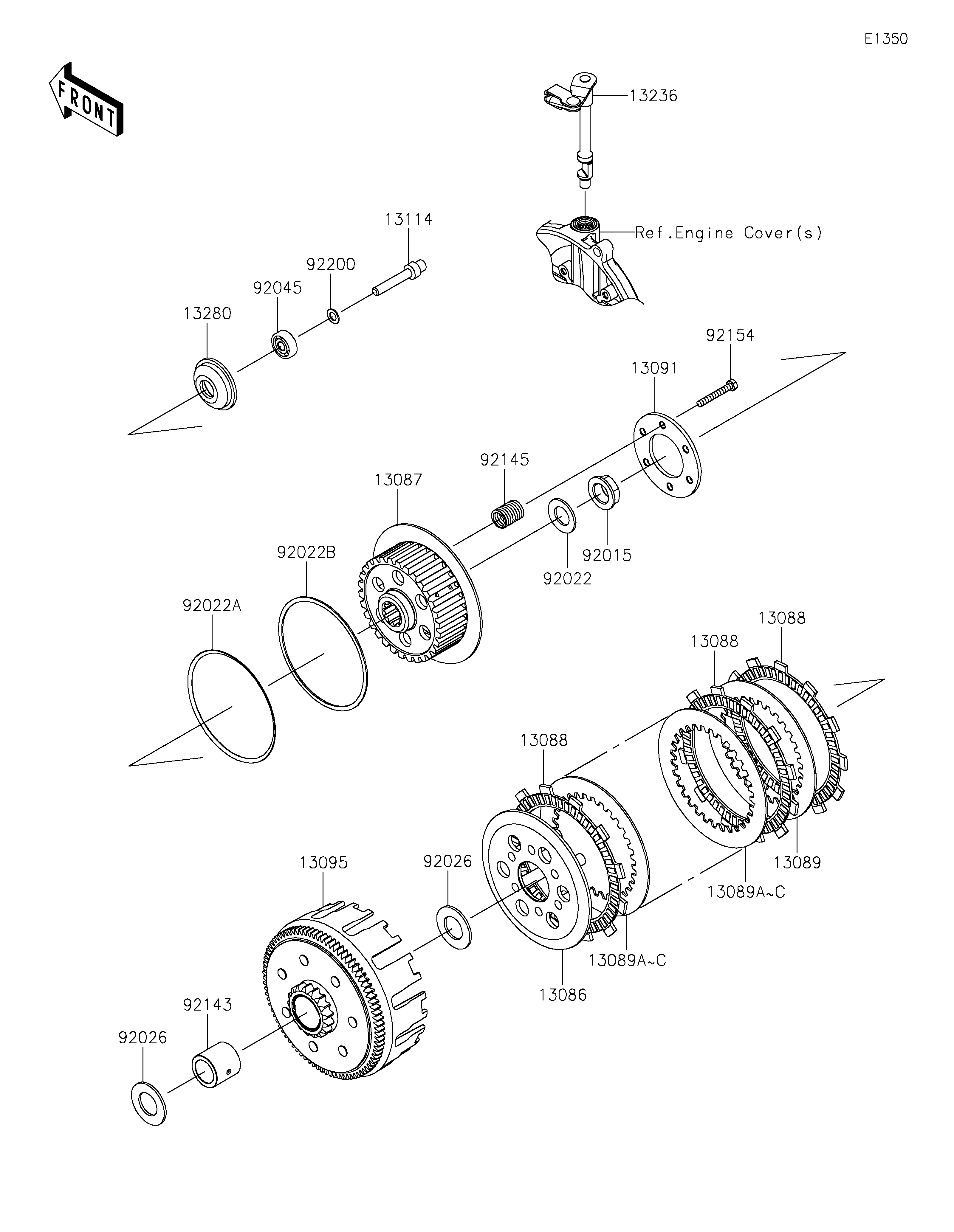

2024 KLX®300SM - Clutch

DOWNLOAD PDF
SELECT A NEW PART
13086
13087
13088
13088
13088
13089
13089A
13089A
13089B
13089B
13089C
13089C
13091
13095
13114
13236
13280
92015
92022
92022A
92022B
92026
92026
92045
92143
92145
92154
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WHEEL-CLUTCH 13086 13086-0004 1
HUB-CLUTCH 13087 13087-0045 1
PLATE-FRICTION 13088 13088-0042 7
PLATE-CLUTCH 13089 13089-1085 1
PLATE-CLUTCH,T=1.6 13089A 13089-1094 5
PLATE-CLUTCH,T=2.0 13089B 13089-1116 AR
PLATE-CLUTCH,T=1.2 13089C 13089-1117 AR
HOLDER,CLUTCH SPRING 13091 13091-1683 1
HOUSING-COMP-CLUTCH 13095 13095-0576 1
PUSHER-CLUTCH 13114 13114-1068 1
LEVER-COMP 13236 13236-0158 1
HOLDER,CLUTCH PUSHER 13280 13280-0812 1
NUT,16MM 92015 92015-1581 1
WASHER,16.3X29X1.75 92022 92022-1356 1
WASHER,JUDDER SPRING 92022A 92022-1974 1
WASHER,JUDDER SPRING SEAT 92022B 92022-1993 1
SPACER,20.3X36.6X2 92026 92026-0725 2
BEARING-BALL,627 92045 92045-1236 1
COLLAR 92143 92143-1959 1
SPRING 92145 92145-0637 6
BOLT,UPSET,5X35 92154 92154-0065 6
WASHER,7X12.5X0.8 92200 92200-0909 1
