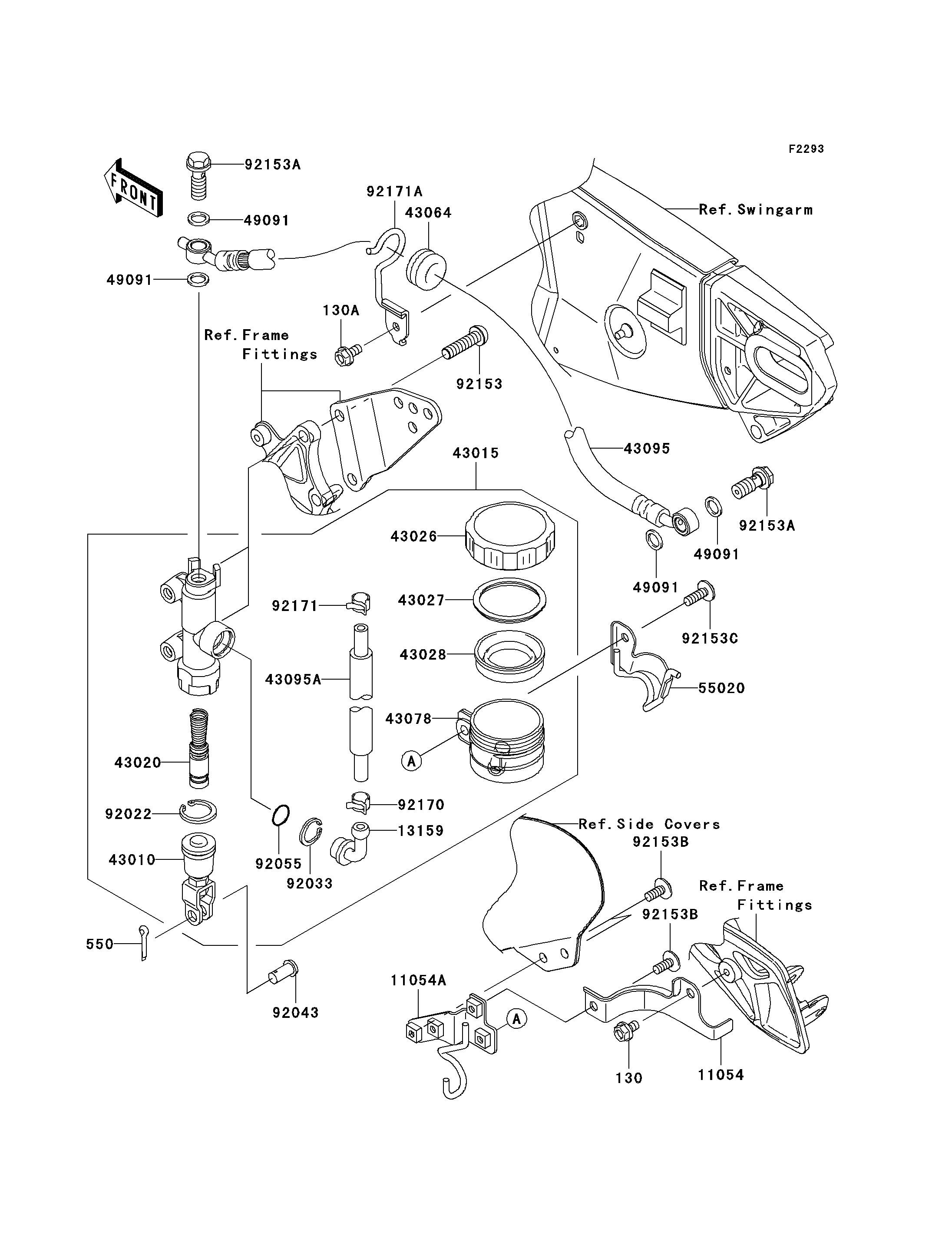

2006 Ninja® ZX™-10R - Rear Master Cylinder(D6F)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
550
11054
11054A
13159
43010
43015
43020
43026
43027
43028
43064
43078
43095
43095A
49091
49091
49091
49091
55020
92022
92033
92043
92055
92153
92153A
92153A
92153B
92153B
92153C
92170
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130L0610 1
BOLT-FLANGED,6X12 130A 130L0612 1
PIN-COTTER,2.0X15 550 550AA2015 1
BRACKET,RESERVOIR TANK CAP 11054 11054-0327 1
BRACKET,RESERVOIR TANK 11054A 11054-0499 1
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0080 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
GROMMET,HOSE CLAMP 43064 43064-007 1
RESERVOIR,RR MASTER CYLINDER 43078 43078-1165 1
HOSE-BRAKE,RR 43095 43095-0190 1
HOSE-BRAKE,RR MASTER CYLINDER 43095A 43095-0191 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
GUARD,RESERVOIR HOSE 55020 55020-0276 1
WASHER,CIRCRIP 92022 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
PIN,8X14.5 92043 92043-0104 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,SOCKET,8X30 92153 92153-0393 2
BOLT,OIL,L=23 92153A 92153-0627 2
BOLT,SOCKET,6X14 92153B 92153-1612 3
BOLT,SOCKET,6X18 92153C 92153-1675 1
CLAMP,HOSE 92170 92170-1091 1
CLAMP,HOSE 92171 92171-0463 1
CLAMP,HOSE 92171A 92171-0670 1
