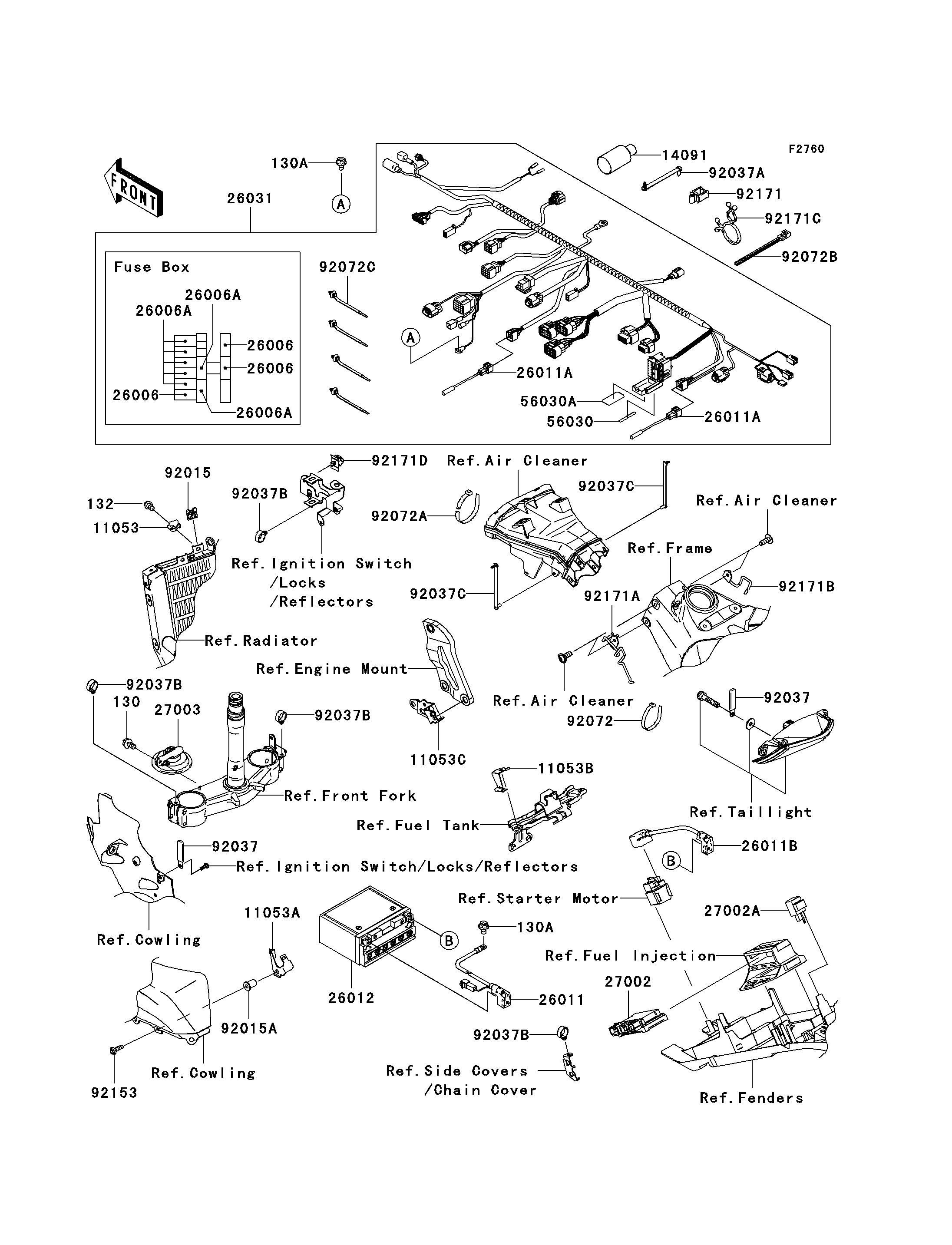

2004 Ninja® ZX™-10R - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
132
11053
11053A
11053B
11053C
14091
26006
26006
26006
26006A
26006A
26006A
26011
26011A
26011A
26011B
26012
26031
27002
27002A
27003
56030
56030A
92015
92015A
92037
92037
92037A
92037B
92037B
92037B
92037B
92037C
92037C
92072
92072A
92072B
92072C
92153
92171
92171A
92171B
92171C
92171D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130L0610 1
BOLT-FLANGED,6X10 130A 130V0610 2
BOLT-FLANGED-SMALL 132 132L0612 1
BRACKET,RADIATOR 11053 11053-0593 1
BRACKET,UPP COWLING 11053A 11053-0715 1
BRACKET,FUEL PUMP COUPLER 11053B 11053-0718 1
BRACKET,HARNESS 11053C 11053-1297 1
COVER,TAIL LAMP COUPLER 14091 14091-0211 1
FUSE,15A 26006 26006-0001 3
FUSE,10A 26006A 26006-1078 7
WIRE-LEAD,BATTERY(-) 26011 26011-0017 1
WIRE-LEAD 26011A 26011-0037 2
WIRE-LEAD,BATTERY(+) 26011B 26011-0047 1
BATTERY,YT12B-BS,12V 12AH 26012 26012-0036 1
HARNESS,MAIN 26031 26031-0208 1
RELAY-ASSY 27002 27002-0001 1
RELAY-ASSY,TURN SIGNAL 27002A 27002-1101 1
HORN 27003 27003-0008 1
LABEL,FUSE BOX 56030 56030-0016 1
LABEL,FUSE BOX 56030A 56030-0046 1
NUT 92015 92015-1487 1
NUT,WELL,5MM 92015A 92015-1757 1
CLAMP,L=60 92037 92037-1069 2
CLAMP,SPEED,L=58 92037A 92037-1163 3
CLAMP,HOSE 92037B 92037-1827 4
CLAMP,SPEED,L=80.5 92037C 92037-1903 2
BAND,L=202 92072 92072-1195 1
BAND,L=365 92072A 92072-1197 1
BAND,L=140 92072B 92072-1293 1
BAND 92072C 92072-1414 4
BOLT,SOCKET,5X16 92153 92153-1244 1
CLAMP 92171 92171-0290 1
CLAMP,HARNESS,LH 92171A 92171-0342 1
CLAMP,HARNESS,RH 92171B 92171-0369 1
CLAMP 92171C 92171-0425 1
CLAMP,HARNESS 92171D 92171-1269 1
