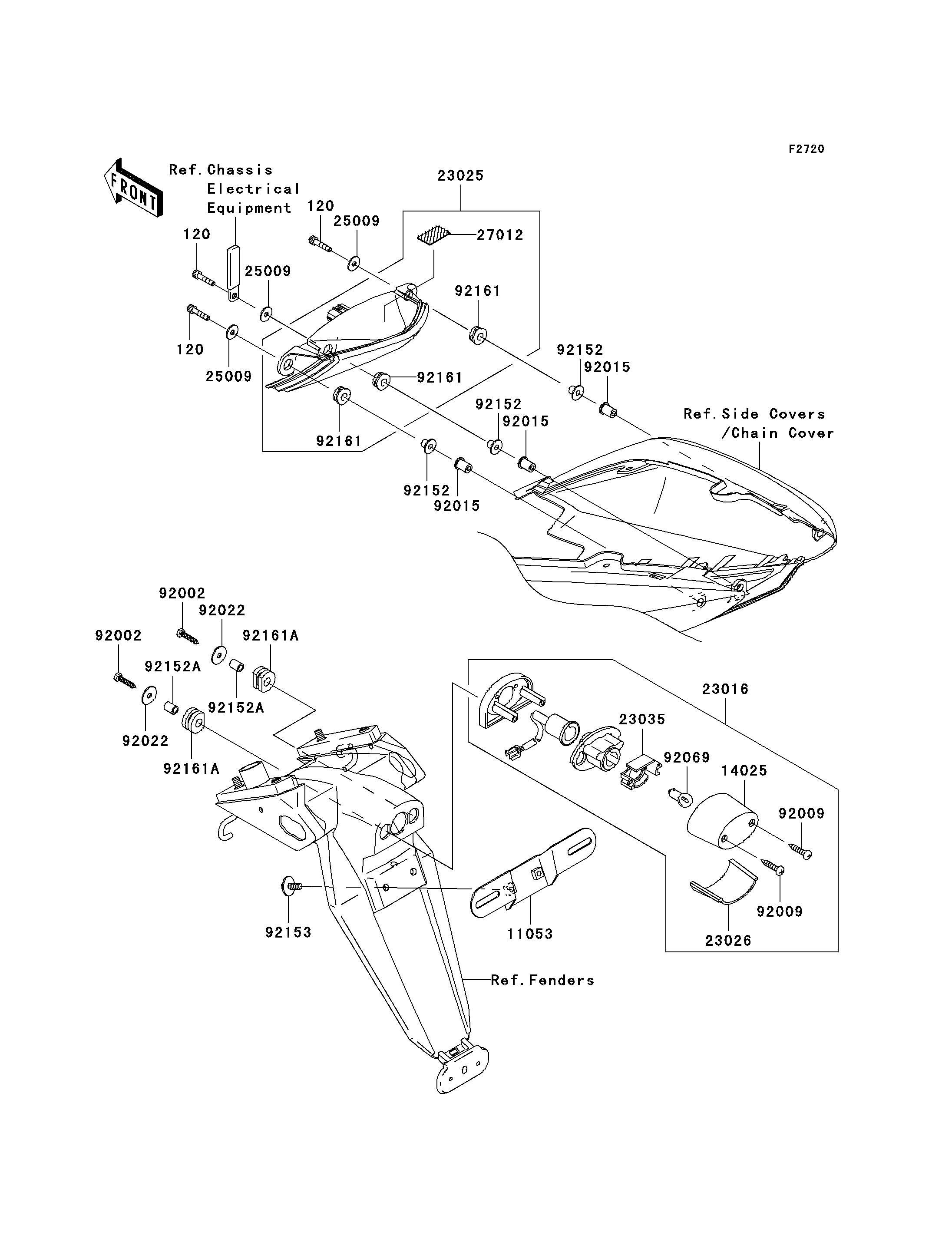

2004 Ninja® ZX™-10R - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120
120
11053
14025
23016
23025
23026
23035
25009
25009
25009
27012
92002
92002
92009
92009
92015
92015
92015
92022
92022
92069
92152
92152
92152
92152A
92152A
92153
92161
92161
92161
92161A
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120W0522 3
BRACKET,LICENSE 11053 11053-0400 1
COVER,LICENSE LAMP 14025 14025-1725 1
LAMP-ASSY,LICENSE 23016 23016-0003 1
LAMP-TAIL 23025 23025-0004 1
LENS,LICENSE LAMP 23026 23026-1064 1
REFLECTOR-LAMP,LICENSE 23035 23035-1066 1
WASHER,5.2X16X1.2 25009 25009-004 3
MAGIC TAPE 27012 27012-0049 1
BOLT,TAPPING,5X25 92002 92002-1831 2
SCREW,TAPPING,4X20 92009 92009-1378 2
NUT,WELL,5MM 92015 92015-1757 3
WASHER,5.5X20X1.2 92022 92022-1581 2
BULB,12V 5W 92069 92069-1055 1
COLLAR 92152 92152-0092 3
COLLAR,6X9X11.5 92152A 92152-1458 2
BOLT,6X16 92153 92153-0684 2
DAMPER 92161 92161-1188 3
DAMPER 92161A 92161-1313 2
