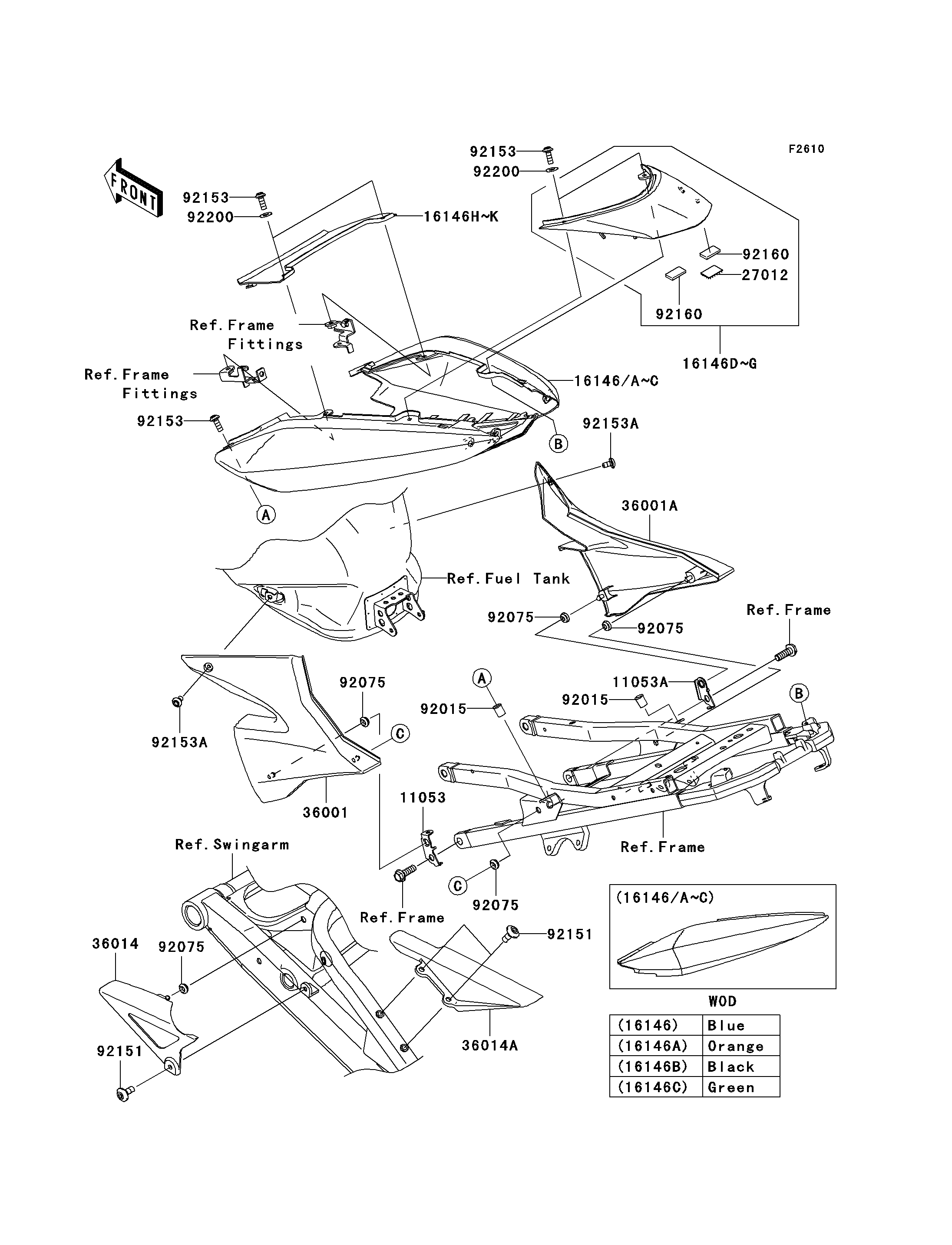

2004 Ninja® ZX™-10R - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
11053
11053A
16146
16146A
16146B
16146C
16146D
16146E
16146F
16146G
16146H
16146I
16146J
16146K
27012
36001
36001A
36014
36014A
92015
92015
92075
92075
92075
92075
92075
92151
92151
92153
92153
92153
92153A
92153A
92160
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SIDE COVER,LH,FR 11053 11053-0394 1
BRACKET,SIDE COVER,RH,FR 11053A 11053-0395 1
COVER-ASSY,TAIL,C.T.BLUE 16146 16146-0023-235 1
COVER-ASSY,TAIL,P.B.ORANGE 16146A 16146-0023-470 1
COVER-ASSY,TAIL,M.S.BLACK 16146B 16146-0023-660 1
COVER-ASSY,TAIL,L.GREEN 16146C 16146-0023-7F 1
COVER-ASSY,TAIL,RR,C.T.BLUE 16146D 16146-0024-235 1
COVER-ASSY,TAIL,RR,P.B.ORANGE 16146E 16146-0024-470 1
COVER-ASSY,TAIL,RR,M.S.BLACK 16146F 16146-0024-660 1
COVER-ASSY,TAIL,RR,L.GREEN 16146G 16146-0024-7F 1
COVER-ASSY,TAIL,FR,C.T.BLUE 16146H 16146-0025-235 1
COVER-ASSY,TAIL,FR,P.B.ORANGE 16146I 16146-0025-470 1
COVER-ASSY,TAIL,FR,M.S.BLACK 16146J 16146-0025-660 1
COVER-ASSY,TAIL,FR,L.GREEN 16146K 16146-0025-7F 1
MAGIC TAPE 27012 27012-0049 1
COVER-SIDE,LH,F.S.BLACK 36001 36001-0036-8J 1
COVER-SIDE,RH,F.S.BLACK 36001A 36001-0037-8J 1
CASE-CHAIN,FR 36014 36014-0009 1
CASE-CHAIN,RR 36014A 36014-0018 1
NUT 92015 92015-1700 2
DAMPER 92075 92075-1011 5
BOLT,SOCKET,6X14 92151 92151-1654 3
BOLT,6X18 92153 92153-0478 6
BOLT,SOCKET,6X11 92153A 92153-0730 2
DAMPER 92160 92160-1935 2
WASHER,6.5X14X1 92200 92200-1388 4
