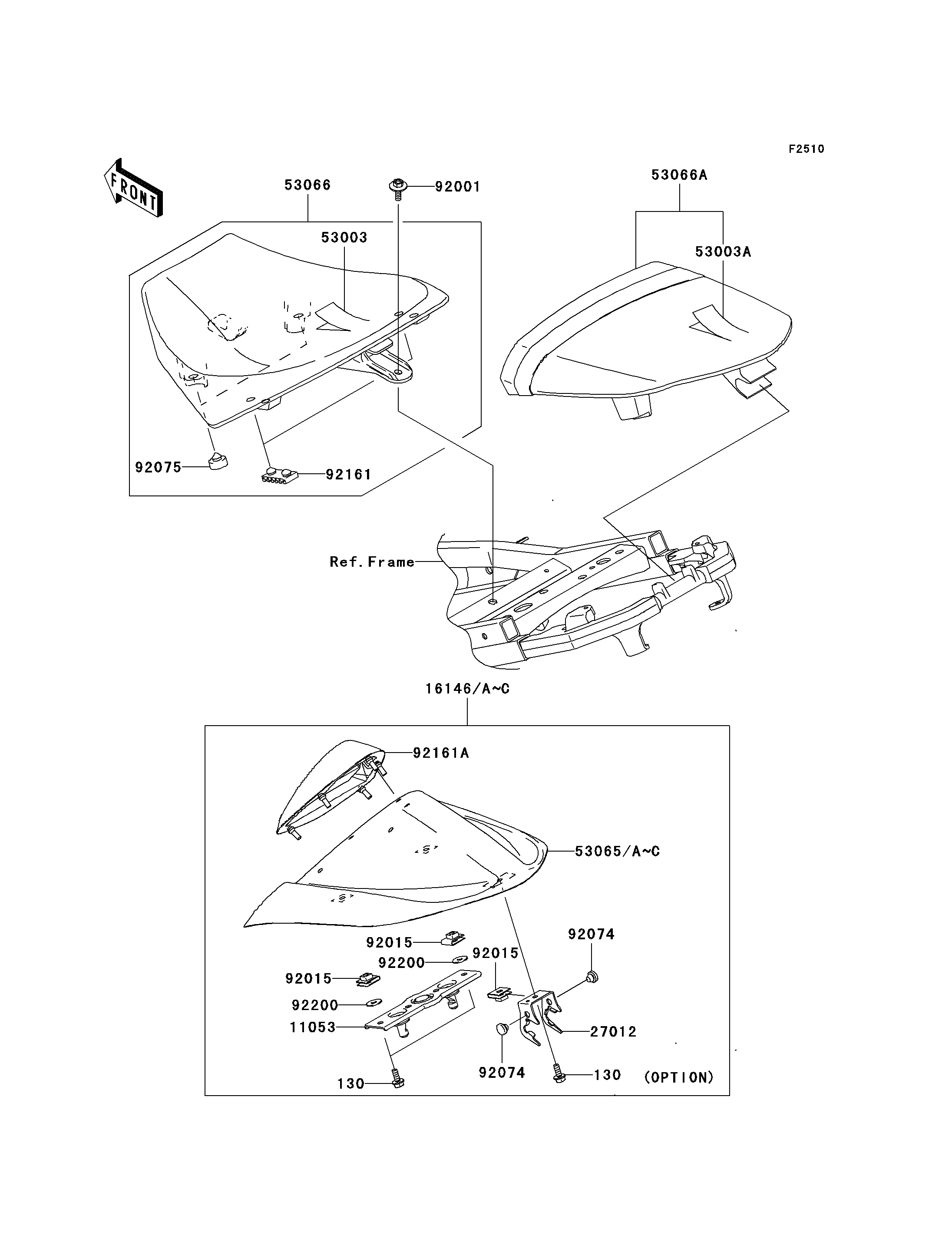

2004 Ninja® ZX™-10R - Seat

DOWNLOAD PDF
SELECT A NEW PART
130
130
11053
16146
16146A
16146B
16146C
27012
53003
53003A
53065
53065A
53065B
53065C
53066
53066A
92001
92015
92015
92015
92074
92074
92075
92161
92161A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130L0616 3 (OPTION)
BRACKET 11053 11053-0386 1 (OPTION)
COVER-ASSY,SINGLE SEAT,BLUE 16146 16146-0022-235 1 (OPTION)
COVER-ASSY,SINGLE SEAT,ORANGE 16146A 16146-0022-470 1 (OPTION)
COVER-ASSY,SINGLE SEAT,BLACK 16146B 16146-0022-660 1 (OPTION)
COVER-ASSY,SINGLE SEAT,GREEN 16146C 16146-0022-7F 1 (OPTION)
HOOK,SEAT COVER 27012 27012-0047 1 (OPTION)
LEATHER,FRONT SEAT,BLACK 53003 53003-0008-MA 1
LEATHER,REAR SEAT,BLACK 53003A 53003-0009-MA 1
COVER SEAT,C.T.BLUE 53065 53065-0002-235 1 (OPTION)
COVER SEAT,P.B.ORANGE 53065A 53065-0002-470 1 (OPTION)
COVER SEAT,M.S.BLACK 53065B 53065-0002-660 1 (OPTION)
COVER SEAT,L.GREEN 53065C 53065-0002-7F 1 (OPTION)
SEAT-ASSY,FR,BLACK 53066 53066-0046-MA 1
SEAT-ASSY,RR,W/BAND,BLACK 53066A 53066-0047-MA 1
BOLT,6X20 92001 92001-1826 1
NUT,CLAMP,6MM 92015 92015-1531 3 (OPTION)
PLUG,7X2 92074 92074-028 2 (OPTION)
DAMPER 92075 92075-1927 2
DAMPER,SEAT 92161 92161-0149 2
DAMPER,SINGLE SEAT COVER 92161A 92161-0171 1 (OPTION)
WASHER 92200 92200-0078 2 (OPTION)
