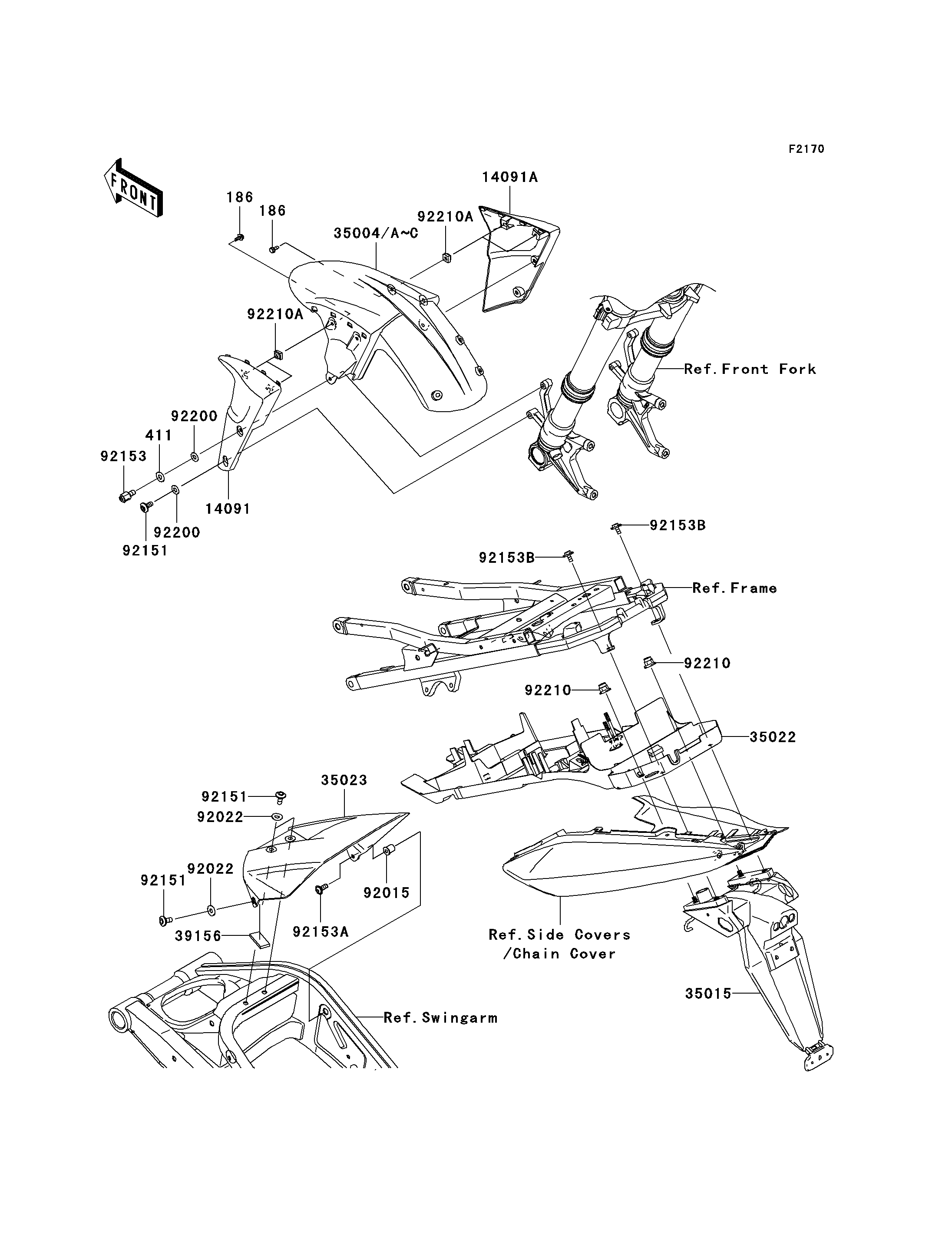

2004 Ninja® ZX™-10R - Fenders

DOWNLOAD PDF
SELECT A NEW PART
186
186
411
14091
14091A
35004
35004A
35004B
35004C
35015
35022
35023
39156
92015
92022
92022
92151
92151
92151
92153
92153A
92153B
92153B
92200
92200
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WP 186 186L0514 4
WASHER-PLAIN,6MM,BLACK 411 411F0600 2
COVER,FRONT FENDER,LH,F.BLACK 14091 14091-0103-6Z 1
COVER,FRONT FENDER,RH,F.BLACK 14091A 14091-0104-6Z 1
FENDER-FRONT,C.T.BLUE 35004 35004-0034-235 1
FENDER-FRONT,P.B.ORANGE 35004A 35004-0034-470 1
FENDER-FRONT,M.S.BLACK 35004B 35004-0034-660 1
FENDER-FRONT,L.GREEN 35004C 35004-0034-7F 1
FLAP-COMP 35015 35015-0001 1
FENDER-COMP-REAR 35022 35022-0019 1
FENDER-REAR,INNER,F.BLACK 35023 35023-0032-6Z 1
PAD,RR FENDER 39156 39156-0061 1
NUT 92015 92015-1700 1
WASHER,6.5X16X1 92022 92022-1143 3
BOLT,SOCKET,6X14 92151 92151-1654 5
BOLT,6MM 92153 92153-0335 2
BOLT,6X18 92153A 92153-0478 1
BOLT,6X20 92153B 92153-0562 2
WASHER,6.5X14X1 92200 92200-1388 4
NUT,CAP,6MM 92210 92210-0170 2
NUT,5MM 92210A 92210-1266 4
