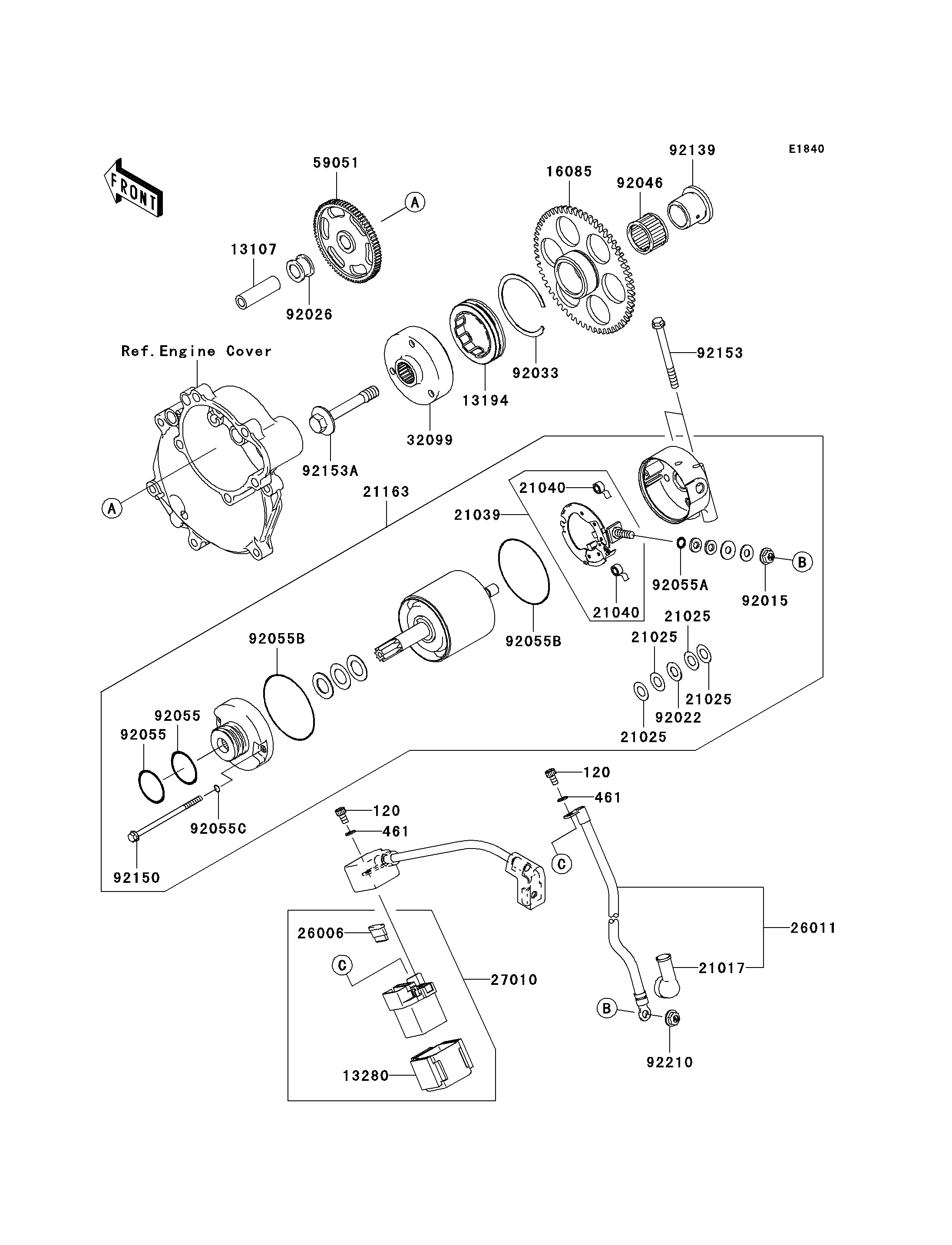

2004 Ninja® ZX™-10R - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
120
461
461
13107
13194
13280
16085
21017
21025
21025
21025
21025
21039
21040
21040
21163
26006
26011
27010
32099
59051
92015
92022
92026
92033
92046
92055
92055
92055A
92055B
92055B
92055C
92139
92150
92153
92153A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0510 2
WASHER-SPRING,5MM,BLACK 461 461K0500 2
SHAFT,IDLE GEAR 13107 13107-0023 1
CLUTCH-ONEWAY 13194 13194-3704 1
HOLDER 13280 13280-1263 1
GEAR,58T 16085 16085-0012 1
GROMMET,STARTER TERMINAL 21017 21017-017 1
WASHER,9.1X18X0.2 21025 21025-011 4
BRUSH 21039 21039-1066 1
SPRING-BRUSH 21040 21040-1057 2
STARTER-ELECTRIC 21163 21163-0013 1
FUSE,30A-G 26006 26006-1006 1
WIRE-LEAD 26011 26011-0033 1
SWITCH,MAGNETIC 27010 27010-1446 1
CASE 32099 32099-0007 1
GEAR-SPUR,IDLE 59051 59051-0012 1
NUT,STARTER MOTOR 92015 92015-1476 1
WASHER,9.1X18X0.8 92022 92022-1132 1
SPACER 92026 92026-0024 1
RING-SNAP 92033 92033-3731 1
BEARING-NEEDLE,RS263020 92046 92046-0004 1
RING-O 92055 92055-1276 2
RING-O,4.5X2.0 92055A 92055-1370 1
RING-O 92055B 92055-1550 2
RING-O 92055C 92055-1551 2
BUSHING 92139 92139-0024 1
BOLT 92150 92150-1969 2
BOLT,FLANGED,6X70 92153 92153-0018 2
BOLT,10X62 92153A 92153-0451 1
NUT,6MM 92210 92210-0188 1
