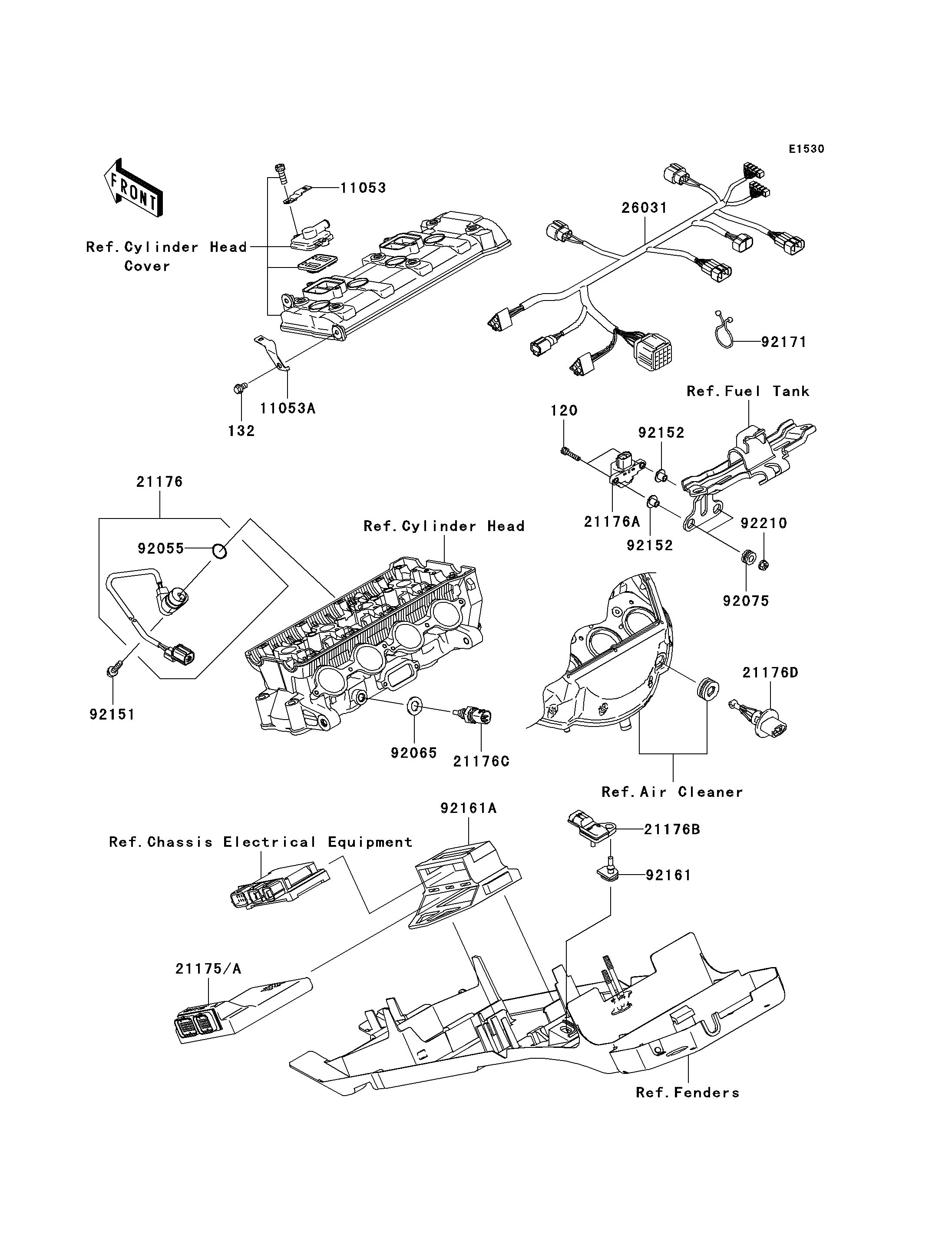

2004 Ninja® ZX™-10R - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
120
132
11053
11053A
21176
21176A
21176B
21176C
21176D
26031
92055
92065
92075
92151
92152
92152
92161
92161A
92171
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120W0522 2
BOLT-FLANGED-SMALL 132 132L0610 1
BRACKET 11053 11053-0554 1
BRACKET 11053A 11053-0555 1
SENSOR,CAM 21176 21176-0024 1
SENSOR,VEHICLE-DOWN 21176A 21176-0026 1
SENSOR 21176B 21176-1118 1
SENSOR,WATER TEMP 21176C 21176-1120 1
SENSOR,AIR TEMP 21176D 21176-2106 1
HARNESS 26031 26031-0204 1
RING-O 92055 92055-1639 1
GASKET,12X22X2 92065 92065-097 1
DAMPER 92075 92075-1912 2
BOLT,6X16 92151 92151-1774 1
COLLAR 92152 92152-0134 2
DAMPER 92161 92161-0041 1
DAMPER 92161A 92161-0092 1
CLAMP 92171 92171-1185 1
NUT,FLANGED,5MM 92210 92210-0007 2
CONTROL UNIT-ELECTRONIC 21175 21175-0029 1 CNUS
CONTROL UNIT-ELECTRONIC 21175A 21175-0050 1 CA
