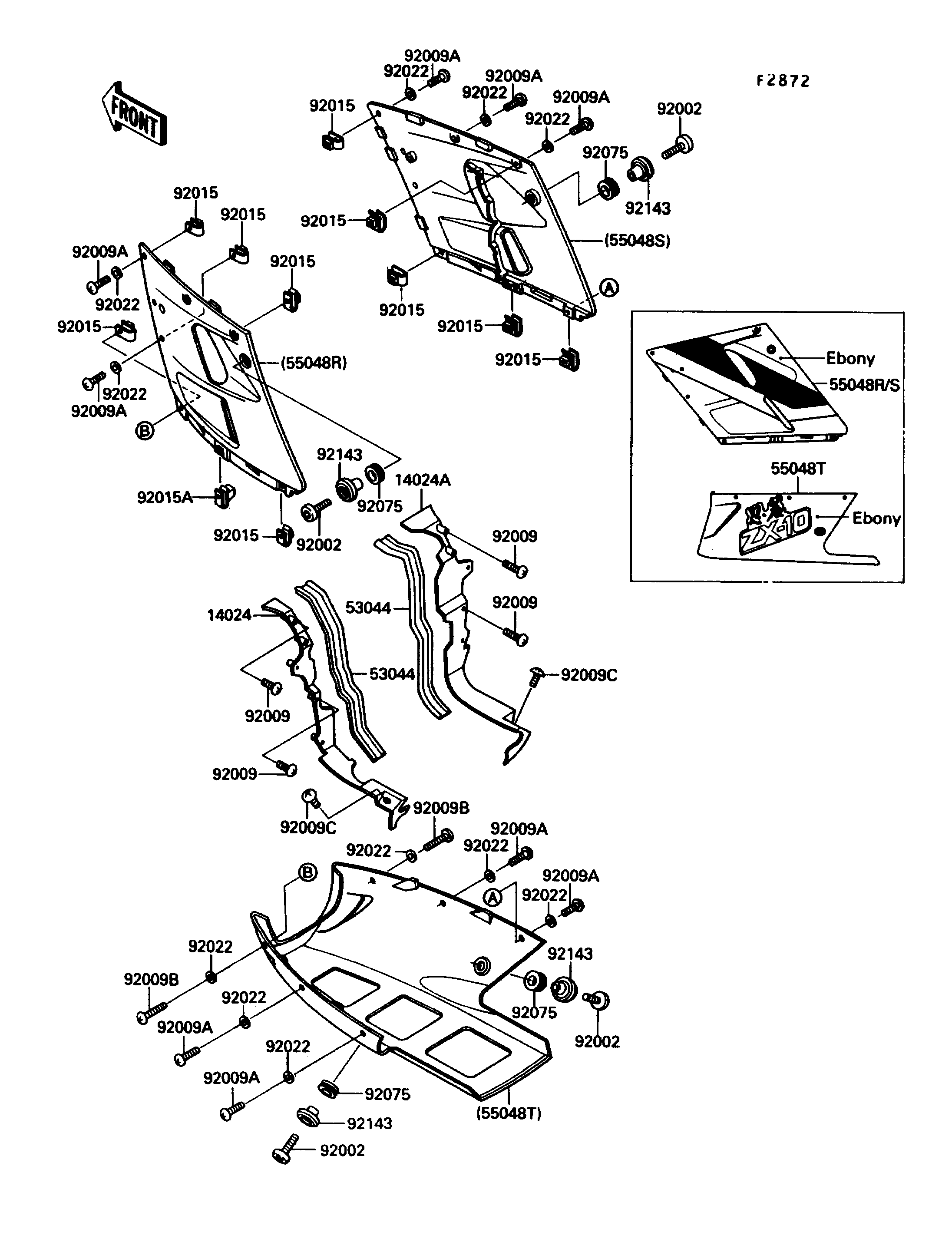

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,HEAT GUARD,LH | 14024 | 14024-1652 | 1 | ||
| COVER,HEAT GUARD,RH | 14024A | 14024-1653 | 1 | ||
| TRIM,L=460 | 53044 | 53044-1204 | 2 | ||
| COWLING.,SIDE,LH,EBONY | 55048R | 55048-5322-H8 | 1 | ||
| COWLING.,SIDE,RH,EBONY | 55048S | 55048-5323-H8 | 1 | ||
| COWLING.,LWR,EBONY | 55048T | 55048-5324-H8 | 1 | ||
| BOLT,SOCKET,6X18,BLACK | 92002 | 92002-1514 | 4 | ||
| SCREW,TAPPING,5X14 | 92009 | 92009-1197 | 10 | ||
| SCREW,5X16,BLACK | 92009A | 92009-1301 | 12 | ||
| SCREW,5X20,BLACK | 92009B | 92009-1453 | 2 | ||
| SCREW,6X10 | 92009C | 92009-1530 | 2 | ||
| NUT,5MM | 92015 | 92015-1710 | 13 | ||
| NUT,5MM | 92015A | 92015-1751 | 1 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 14 | ||
| DAMPER | 92075 | 92075-1634 | 4 | ||
| COLLAR,BLACK | 92143 | 92143-1226 | 4 |
| COVER,HEAT GUARD,LH | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,HEAT GUARD,RH | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM,L=460 | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COWLING.,SIDE,LH,EBONY | |
| REF # | 55048R |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING.,SIDE,RH,EBONY | |
| REF # | 55048S |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING.,LWR,EBONY | |
| REF # | 55048T |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X18,BLACK | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16,BLACK | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X20,BLACK | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10 | |
| REF # | 92009C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 13 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLON,5.3X11.5X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,BLACK | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
