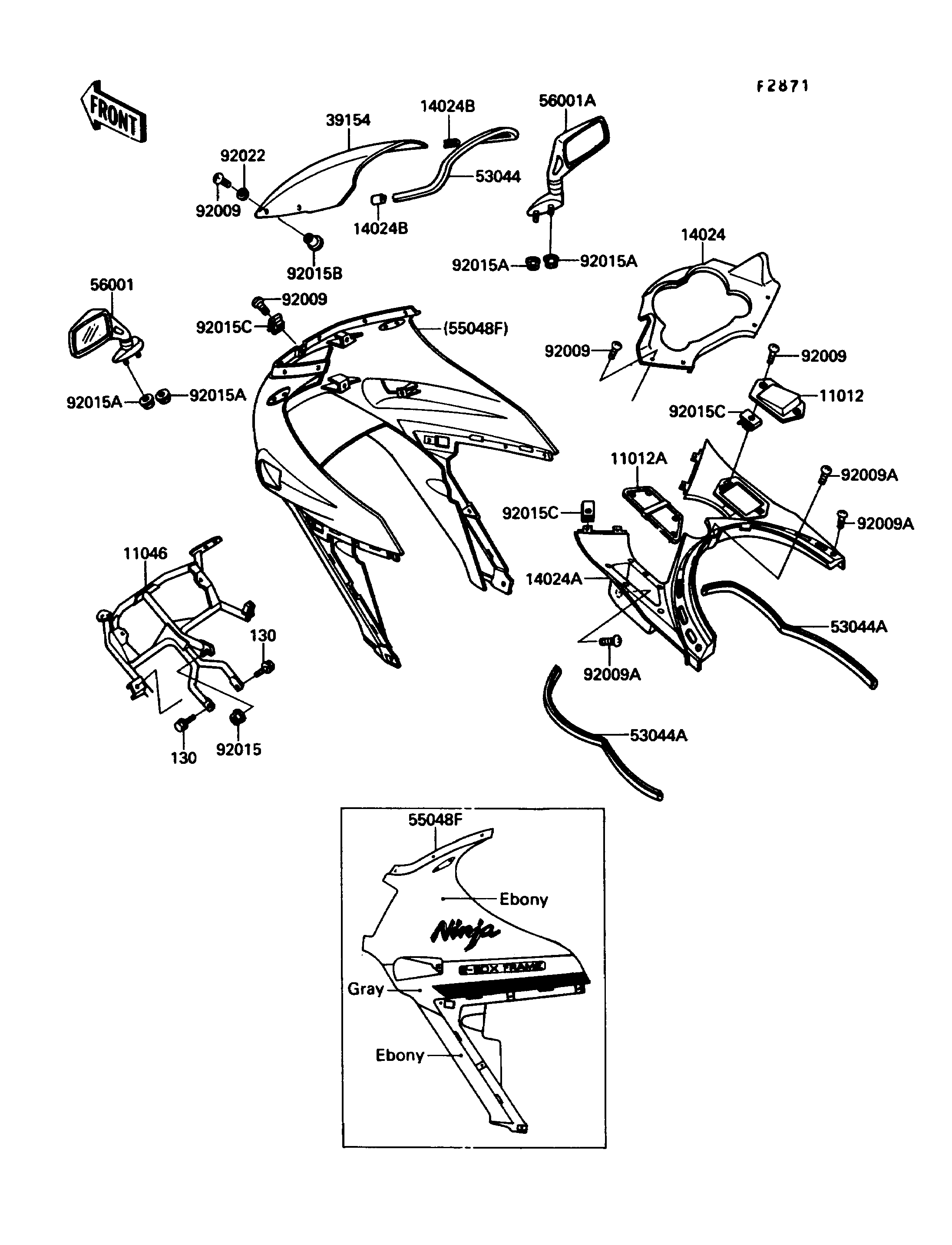

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,INNER COWLING,RH | 11012 | 11012-1654 | 1 | ||
| CAP,INNER COWLING,LH | 11012A | 11012-1656 | 1 | ||
| BRACKET,UPPER COWLING STAY | 11046 | 11046-1251 | 1 | ||
| COVER,INNER COWLING,FR | 14024 | 14024-1642 | 1 | ||
| COVER,INNER COWLING,RR | 14024A | 14024-1643 | 1 | ||
| COVER,TRIM END | 14024B | 14024-1730 | 2 | ||
| WINDSHIELD | 39154 | 39154-1090 | 1 | ||
| TRIM,L=720 | 53044 | 53044-1203 | 1 | ||
| TRIM,L=685 | 53044A | 53044-1210 | 2 | ||
| COWLING.,UPP,EBONY/GRAY | 55048F | 55048-5321-T4 | 1 | ||
| MIRROR-ASSY,LH,EBONY | 56001 | 56001-1325-6C | 1 | ||
| MIRROR-ASSY,RH,EBONY | 56001A | 56001-1326-6C | 1 | ||
| SCREW,5X16,BLACK | 92009 | 92009-1301 | 13 | ||
| SCREW,6X10 | 92009A | 92009-1530 | 5 | ||
| NUT,FLANGED,8MM,BLACK | 92015 | 92015-1183 | 1 | ||
| NUT,FLANGED,6MM | 92015A | 92015-1233 | 4 | ||
| NUT,WELL,5MM | 92015B | 92015-1640 | 6 | ||
| NUT,5MM | 92015C | 92015-1710 | 7 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 6 | ||
| BOLT-FLANGED | 130 | 130J0812 | 2 |
| CAP,INNER COWLING,RH | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,INNER COWLING,LH | |
| REF # | 11012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,UPPER COWLING STAY | |
| REF # | 11046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,INNER COWLING,FR | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,INNER COWLING,RR | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TRIM END | |
| REF # | 14024B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WINDSHIELD | |
| REF # | 39154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM,L=720 | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM,L=685 | |
| REF # | 53044A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COWLING.,UPP,EBONY/GRAY | |
| REF # | 55048F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MIRROR-ASSY,LH,EBONY | |
| REF # | 56001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MIRROR-ASSY,RH,EBONY | |
| REF # | 56001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16,BLACK | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 13 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM,BLACK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLON,5.3X11.5X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
