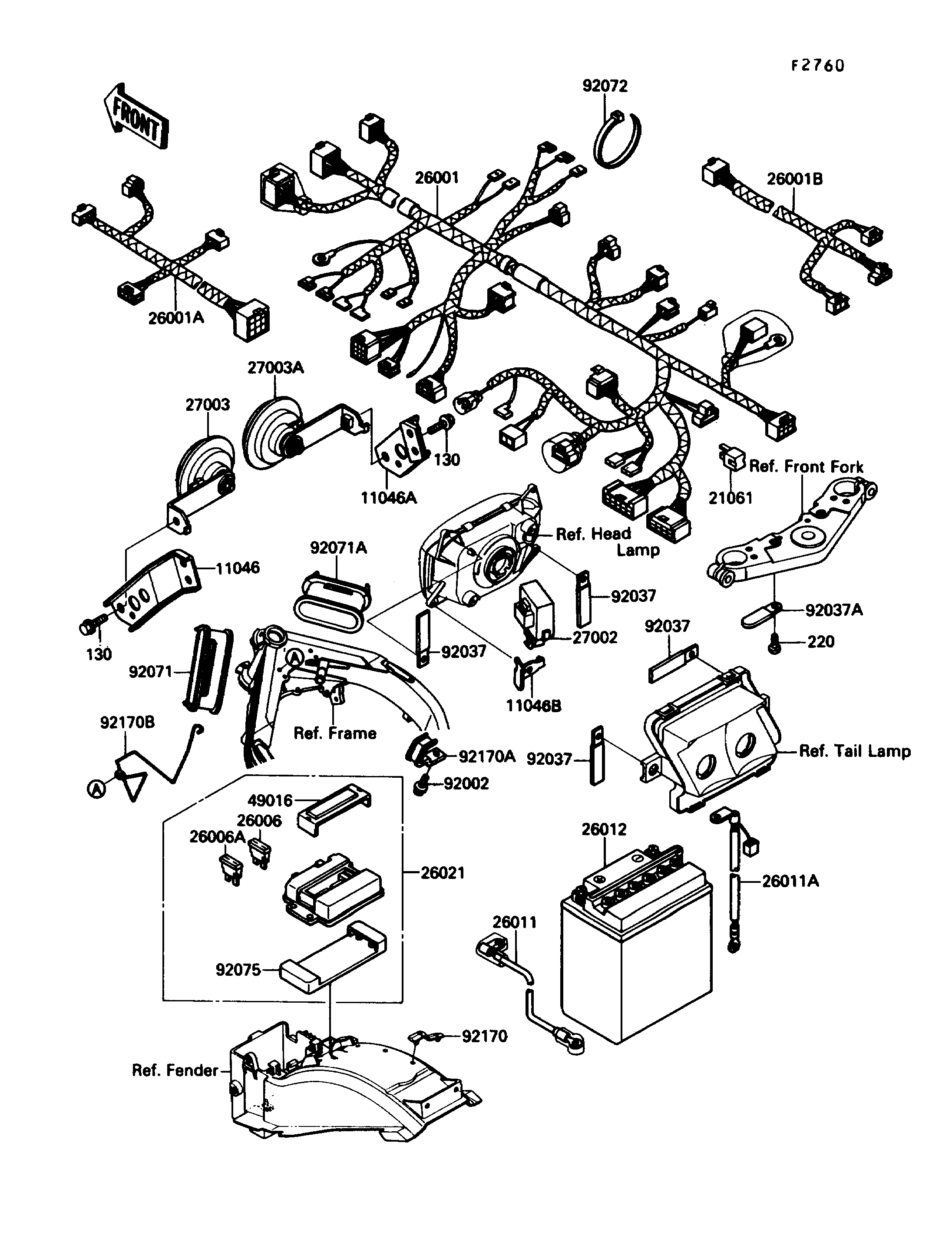

1990 Ninja® ZX™-10 - Chassis Electrical Equipment
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HORN,LH | 11046 | 11046-1255 | 1 | ||
| BRACKET,HORN,RH | 11046A | 11046-1256 | 1 | ||
| BRACKET,RELAY | 11046B | 11046-1373 | 1 | ||
| RECTIFIER | 21061 | 21061-1003 | 1 | ||
| HARNESS,MAIN | 26001 | 26001-1896 | 1 | ||
| HARNESS,FR | 26001A | 26001-1897 | 1 | ||
| HARNESS,RR | 26001B | 26001-1920 | 1 | ||
| FUSE,30A-G | 26006 | 26006-1006 | 1 | ||
| FUSE,10A-R | 26006A | 26006-1007 | 5 | ||
| WIRE-LEAD,BATTERY(+) | 26011 | 26011-1427 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011A | 26011-1428 | 1 | ||
| BATTERY,12V 15AH,FB14L-A2(K) | 26012 | 26012-1224 | 1 | ||
| JUNCTION BOX | 26021 | 26021-1071 | 1 | ||
| RELAY-ASSY,SIGNAL LAMP | 27002 | 27002-1063 | 1 | ||
| HORN,LH | 27003 | 27003-1299 | 1 | ||
| HORN,RH | 27003A | 27003-1300 | 1 | ||
| COVER-SEAL,FUSE | 49016 | 49016-1125 | 1 | ||
| BOLT,6X10 | 92002 | 92002-1628 | 1 | ||
| CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 4 | ||
| CLAMP,WIRING HARNESS | 92037A | 92037-1539 | 1 | ||
| GROMMET,HARNESS,LH | 92071 | 92071-1169 | 1 | ||
| GROMMET,HARNESS,RH | 92071A | 92071-1170 | 1 | ||
| BAND,L=185 | 92072 | 92072-1195 | 5 | ||
| DAMPER,JUNCTION BOX | 92075 | 92075-1688 | 1 | ||
| CLAMP,HARNESS | 92170 | 92170-1015 | 3 | ||
| CLAMP,HARNESS | 92170A | 92170-1024 | 1 | ||
| CLAMP,HARNESS | 92170B | 92170-1029 | 1 | ||
| BOLT-FLANGED | 130 | 130J0812 | 2 | ||
| SCREW-PAN-CROS | 220 | 220C0510 | 1 |
