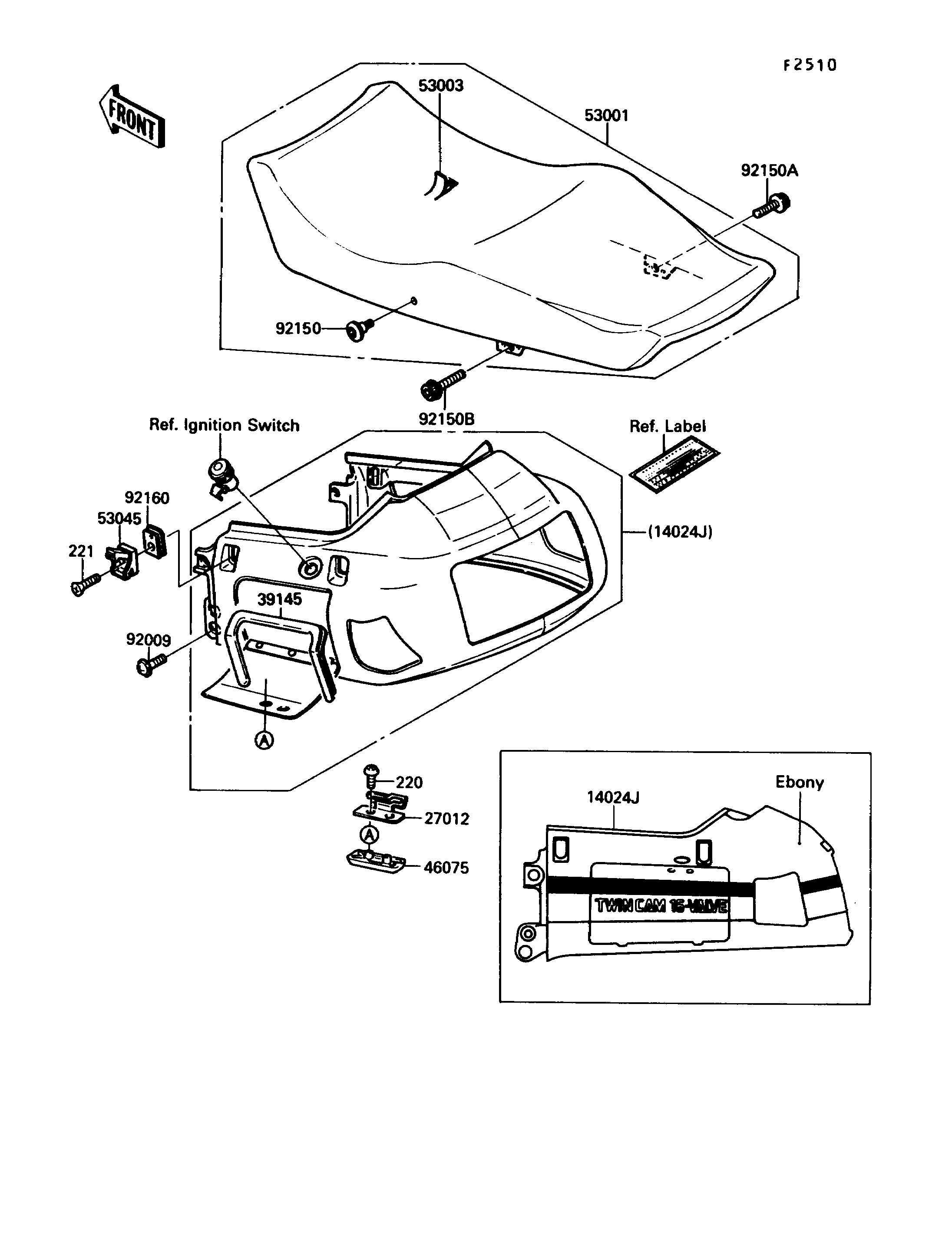

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SEAT,EBONY | 14024J | 14024-5162-H8 | 1 | ||
| HOOK,TOOL BOX COVER | 27012 | 27012-1395 | 1 | ||
| TRIM-SEAL,TOOL BOX | 39145 | 39145-1088 | 1 | ||
| GRIP,TOOL BOX COVER | 46075 | 46075-1077 | 1 | ||
| SEAT-ASSY,DUAL,BLACK | 53001 | 53001-1545-MA | 1 | ||
| LEATHER,SEAT,BLACK | 53003 | 53003-1206-MA | 1 | ||
| HOOK-ASSY,TOOL BOX | 53045 | 53045-1053 | 4 | ||
| SCREW,6X18,BLACK | 92009 | 92009-1181 | 2 | ||
| BOLT,SOCKET,6MM | 92150 | 92150-1154 | 2 | ||
| BOLT,SOCKET,8X20 | 92150A | 92150-1155 | 1 | ||
| BOLT,SOCKET,8X30 | 92150B | 92150-1156 | 1 | ||
| DAMPER,ROPE HOOK | 92160 | 92160-1042 | 4 | ||
| SCREW-PAN-CROS,4X6 | 220 | 220D0406 | 2 | ||
| SCREW-CSK-CROS | 221 | 221E0625 | 4 |
| COVER,SEAT,EBONY | |
| REF # | 14024J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK,TOOL BOX COVER | |
| REF # | 27012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM-SEAL,TOOL BOX | |
| REF # | 39145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,TOOL BOX COVER | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY,DUAL,BLACK | |
| REF # | 53001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEATHER,SEAT,BLACK | |
| REF # | 53003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK-ASSY,TOOL BOX | |
| REF # | 53045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X18,BLACK | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6MM | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X20 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X30 | |
| REF # | 92150B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ROPE HOOK | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,4X6 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
