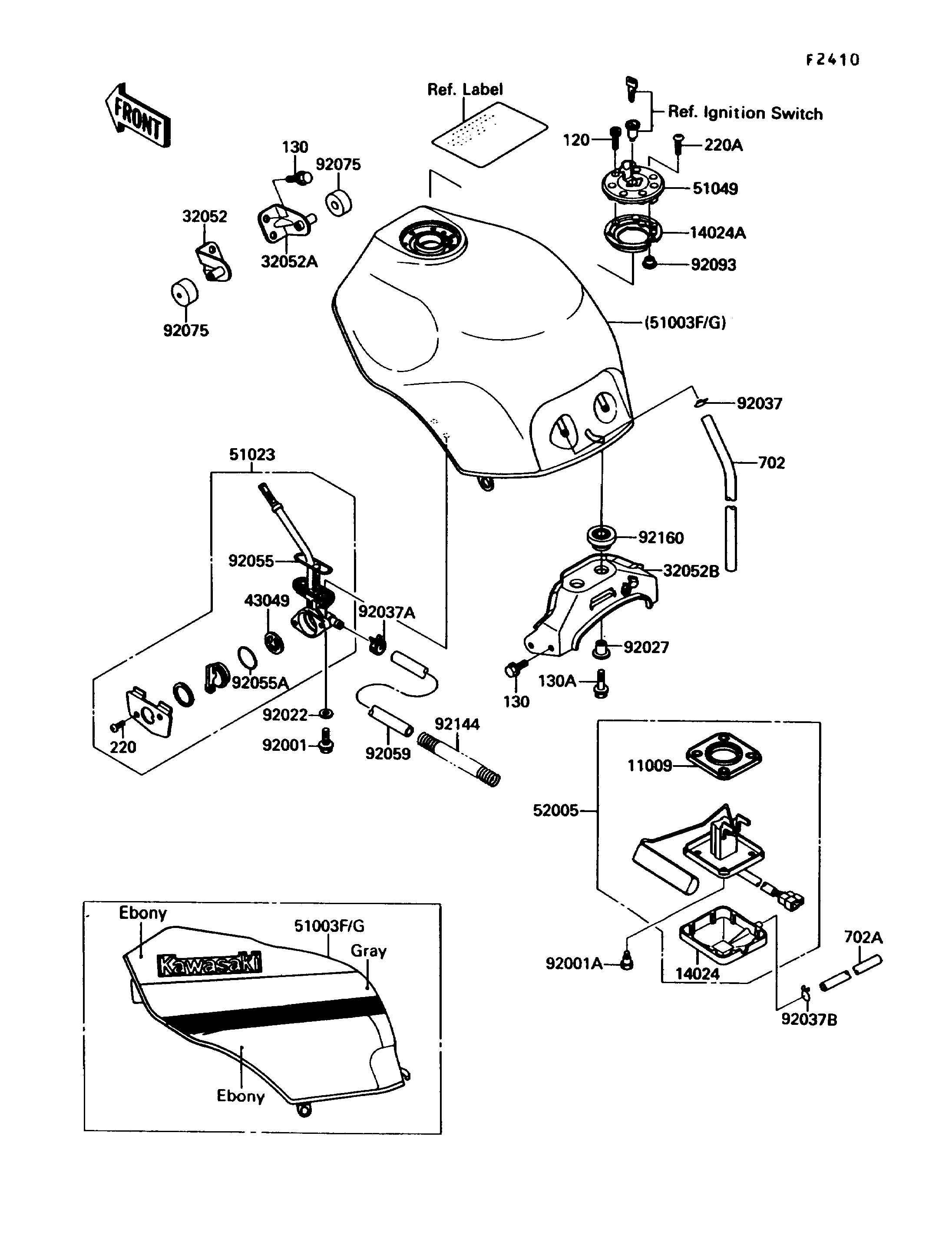

1990 Ninja® ZX™-10 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11009 11009-1656 1
COVER,FUEL GAUGE 14024 14025-1536 1
COVER,TANK CAP 14024A 14025-1913 1
BRACKET-TANK,FR,LH 32052 32052-1268 1
BRACKET-TANK,FR,RH 32052A 32052-1269 1
BRACKET-TANK,RR 32052B 32052-1270 1
PACKING,TAP VALVE 43049 43049-1066 1
TANK-COMP-FUEL,EBONY/GRAY 51003F 51003-5073-T4 1 US
TANK-COMP-FUEL,EBONY/GRAY 51003G 51003-5084-T4 1 CA
TAP-ASSY,FUEL 51023 51023-1151 1
CAP-TANK,FUEL 51049 51049-1079 1
GAUGE,FUEL 52005 52005-1090 1
BOLT,6X20 92001 92001-1091 2
BOLT,FUEL GAUGE 92001A 92001-1705 4
WASHER,6.2X11X1.5 92022 92022-183 2
COLLAR,L=16.1 92027 92027-1847 2
CLAMP,TUBE 92037 92037-010 1
CLAMP 92037A 92037-1181 1
CLAMP,TUBE 92037B 92037-147 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP LEVER 92055A 92055-1419 1
TUBE,8X13X210 92059 92059-1932 1
DAMPER,FUEL TANK 92075 92075-125 2
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
SPRING,HOSE PROTECTOR 92144 92144-1347 1
DAMPER 92160 92160-1046 2
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED,6X14,BLACK 130 130J0614 8
BOLT-FLANGED,6X25 130A 130J0625 2
SCREW-PAN-CROS 220 220C0308 2
SCREW-PAN-CROS 220A 220C0508 1
TUBE-RUBBER,7X10X400 702 702A07400 1
TUBE-RUBBER,7X10X640 702A 702A07640 1
