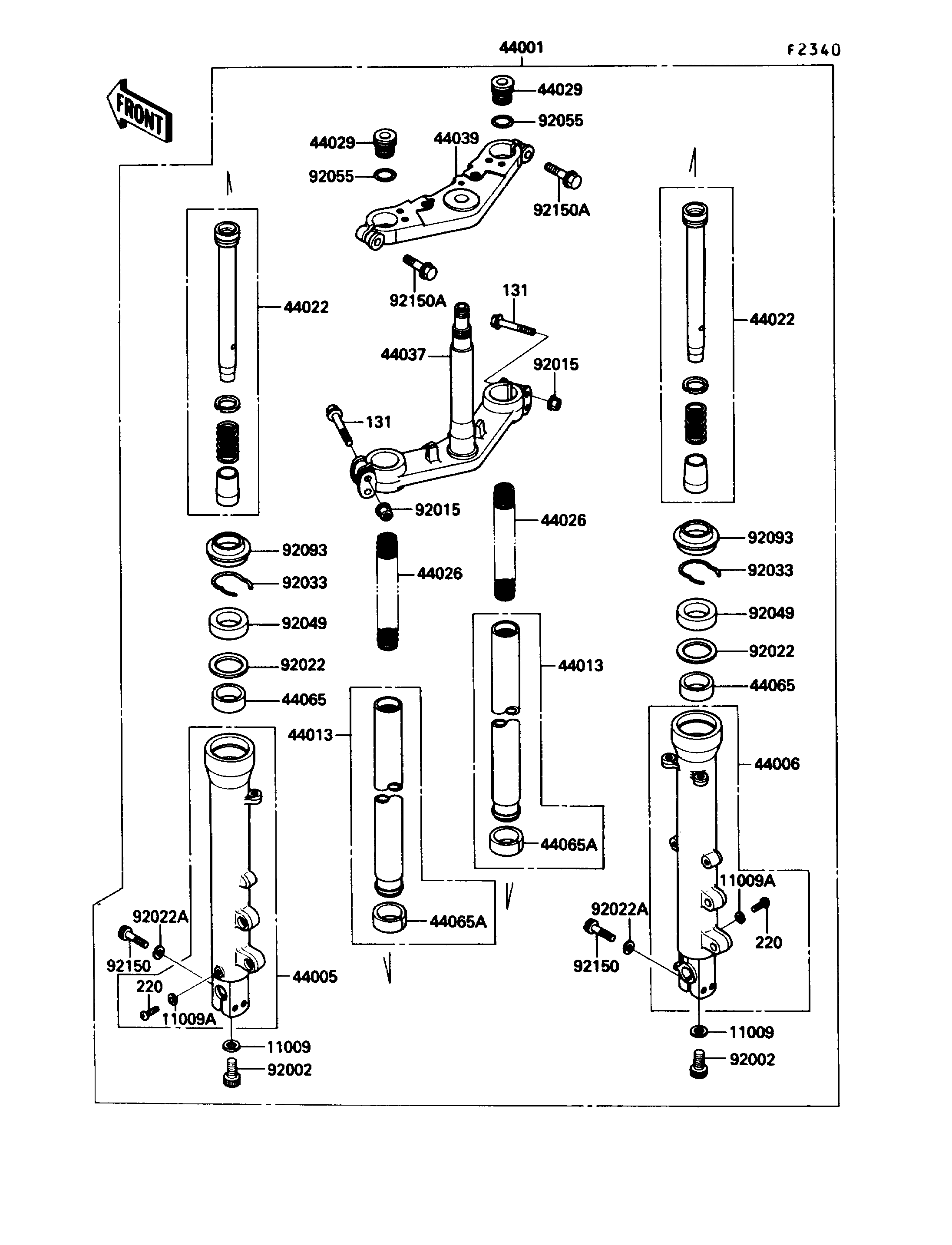

1990 Ninja® ZX™-10 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK DRAIN PLUG 11009 11009-1553 2
GASKET,FORK DRAIN PLUG 11009A 44045-002 2
FORK-FRONT,BLACK 44001 44001-1688-10 1
PIPE-LEFT FORK OUTER,BLACK 44005 44005-1283-10 1
PIPE-RIGHT FORK OUTER,BLACK 44006 44006-1280-10 1
PIPE-FORK INNER 44013 44013-1281 2
CYLINDER-FORK 44022 44022-1231 2
SPRING-FRONT FORK 44026 44026-1400 2
SEAT-FORK SPRING 44029 44029-1133 2
HOLDER-FORK UNDER 44037 44037-1233 1
HOLDER-FORK UPPER,M.BLACK 44039 44039-1174-EA 1
BUSHING-FRONT FORK 44065 44065-1085 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1086 2
BOLT,FORK DRAIN 92002 92002-1650 2
NUT,FLANGED,8MM 92015 92015-1485 4
WASHER,FORK OUTER TUBE 92022 92022-1298 2
WASHER 92022A 92022-1598 4
RING-SNAP 92033 92033-1036 2
SEAL-OIL,FORK OUTER 92049 92049-1273 2
RING-O 92055 92055-1321 2
SEAL,FORK OUTER TUBE 92093 92093-1232 2
BOLT,SOCKET,8X40 92150 92150-1194 4
BOLT,FLANGED,10X45 92150A 92150-1210 2
BOLT-FLANGED 131 131G0850 4
SCREW-PAN-CROS 220 220E0408 2
