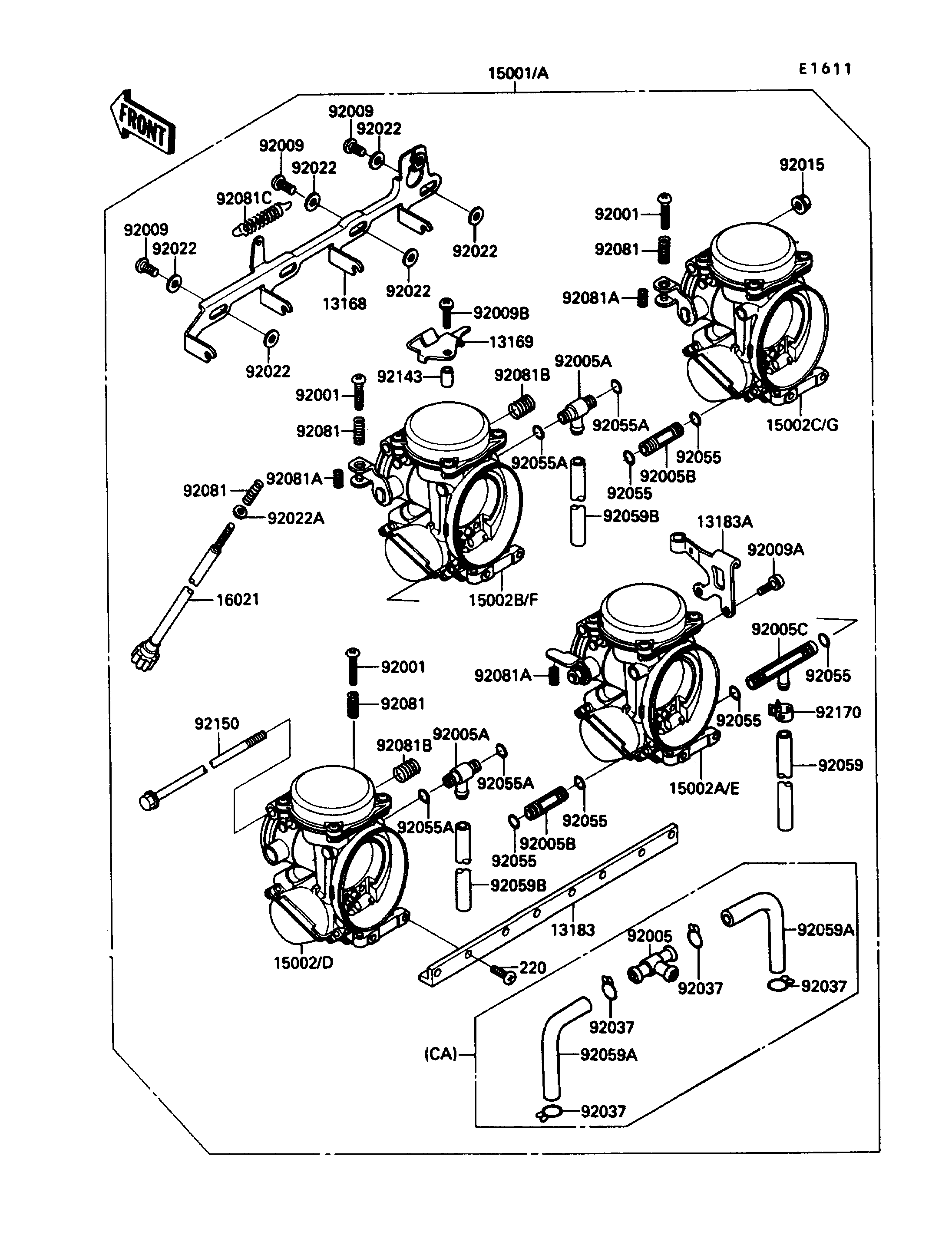

1990 Ninja® ZX™-10 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,STARTER 13168 13168-1405 1
PLATE,STARTER CABLE 13169 13169-1965 1
PLATE,CARBURETOR,STAY 13183 13183-1321 1
PLATE,THROTTLE 13183A 13183-1322 1
CARBURETOR-ASSY 15001 15001-1542 1 CA
CARBURETOR-ASSY 15001A 15001-1544 1 US
CARBURETOR,LH,OUTSIDE 15002 15002-1745 1 CA
CARBURETOR,LH,INSIDE 15002A 15002-1746 1 CA
CARBURETOR,RH,INSIDE 15002B 15002-1747 1 CA
CARBURETOR,RH,OUTSIDE 15002C 15002-1748 1 CA
CARBURETOR,LH,OUTSIDE 15002D 15002-1753 1 US
CARBURETOR,LH,INSIDE 15002E 15002-1754 1 US
CARBURETOR,RH,INSIDE 15002F 15002-1755 1 US
CARBURETOR,RH,OUTSIDE 15002G 15002-1756 1 US
SCREW-THROTTLE STOP 16021 16021-1131 1
BOLT,THROTTLE ADJUST 92001 92001-1998 3
FITTING,T-TYPE 92005 92005-1119 1 CA
FITTING,T-TYPE 92005A 92005-1125 2
FITTING 92005B 92005-1157 2
FITTING,T-TYPE 92005C 92005-1179 1
SCREW 92009 92009-1262 3
SCREW,5X10 92009A 92009-1365 1
SCREW,4X18 92009B 92009-1446 1
NUT,FLANGED,5MM 92015 92015-1259 1
WASHER,6.1X11X0.8,POLYACETAL 92022 92022-1199 6
WASHER,PLAIN,STOP SPRING 92022A 92022-1480 1
CLAMP,TUBE 92037 92037-1606 4 CA
RING-O 92055 92055-1004 6
RING-O,FUEL FITTING 92055A 92055-1223 4
TUBE,5.3X10.5X160 92059 92059-1139 1
TUBE,7X11X140 92059A 92059-1688 2 CA
TUBE,6.5X9.5X100 92059B 92059-1975 2 US
SPRING,THROTTLE ADJUST UPP 92081 92081-1620 4
SPRING,THROTTLE ADJUST LWR 92081A 92081-1621 3
SPRING,THROTTLE ADJUST CNT 92081B 92081-1622 2
SPRING,STARTER LEVER 92081C 92081-1762 1
COLLAR,4X5.2X9.6 92143 92143-1265 1
BOLT,5X305 92150 92150-1211 1
CLAMP,TUBE 92170 92170-1054 1
SCREW-PAN-CROS,5X14 220 220D0514 8
