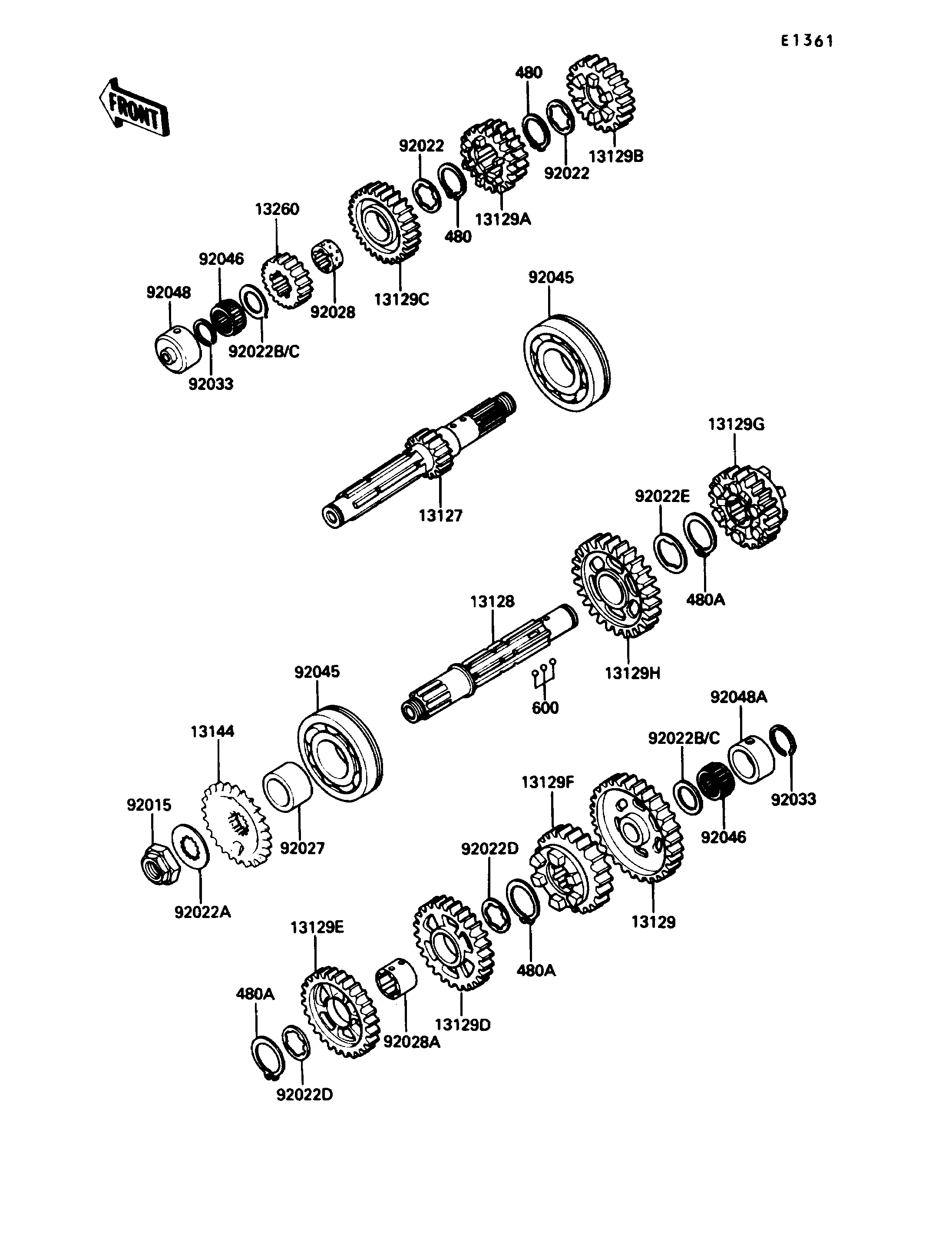

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,15T | 13127 | 13127-1146 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1113 | 1 | ||
| GEAR,OUTPUT LOW,42T | 13129 | 13129-1534 | 1 | ||
| GEAR,INPUT 3RD&4TH,24T&22T | 13129A | 13129-1664 | 1 | ||
| GEAR,INPUT 5TH,26T | 13129B | 13129-1665 | 1 | ||
| GEAR,INPUT TOP,28T | 13129C | 13129-1666 | 1 | ||
| GEAR,OUTPUT 3RD,35T | 13129D | 13129-1669 | 1 | ||
| GEAR,OUTPUT 4TH,32T | 13129E | 13129-1670 | 1 | ||
| GEAR,OUTPUT 5TH,30T | 13129F | 13129-1671 | 1 | ||
| GEAR,OUTPUT TOP,29T | 13129G | 13129-1672 | 1 | ||
| GEAR,OUTPUT 2ND,38T | 13129H | 13129-1934 | 1 | ||
| SPROCKET-OUTPUT,17T | 13144 | 13144-1146 | 1 | ||
| GEAR,INPUT 2ND,19T | 13260 | 13260-1065 | 1 | ||
| NUT,20MM | 92015 | 92015-1210 | 1 | ||
| WASHER,TOOTHED,26X35.5X1.5 | 92022 | 92022-1077 | 2 | ||
| WASHER,TOOTHED,23.9X45X1.0 | 92022A | 92022-1336 | 1 | ||
| WASHER,22.3X35X1.6 | 92022B | 92022-212 | 2 | ||
| WASHER,22.3X35X1.2 | 92022C | 92022-213 | AR | ||
| WASHER,TOOTHED,30.3X40X1.5 | 92022D | 92024-043 | 2 | ||
| WASHER,TOOTHED,30.5X38X1 | 92022E | 92024-069 | 1 | ||
| COLLAR,28X40X23.5 | 92027 | 92027-1711 | 1 | ||
| BUSHING,TOP GEAR | 92028 | 92028-1124 | 1 | ||
| BUSHING,OUTPUT 3RD&4TH | 92028A | 92028-1363 | 1 | ||
| RING-SNAP,20X25.5X1.2 | 92033 | 92033-025 | 2 | ||
| BEARING-BALL | 92045 | 92045-1186 | 2 | ||
| BEARING-NEEDLE,FWF-223014 | 92046 | 92046-031 | 2 | ||
| RACE,INPUT SHAFT | 92048 | 92048-1052 | 1 | ||
| RACE,30X38X15 | 92048A | 92048-1053 | 1 | ||
| CIRCLIP-TYPE-C,28MM | 480 | 480J2800 | 2 | ||
| CIRCLIP | 480A | 480J2900 | 3 | ||
| BALL-STEEL,5/32" | 600 | 600A0500 | 3 |
