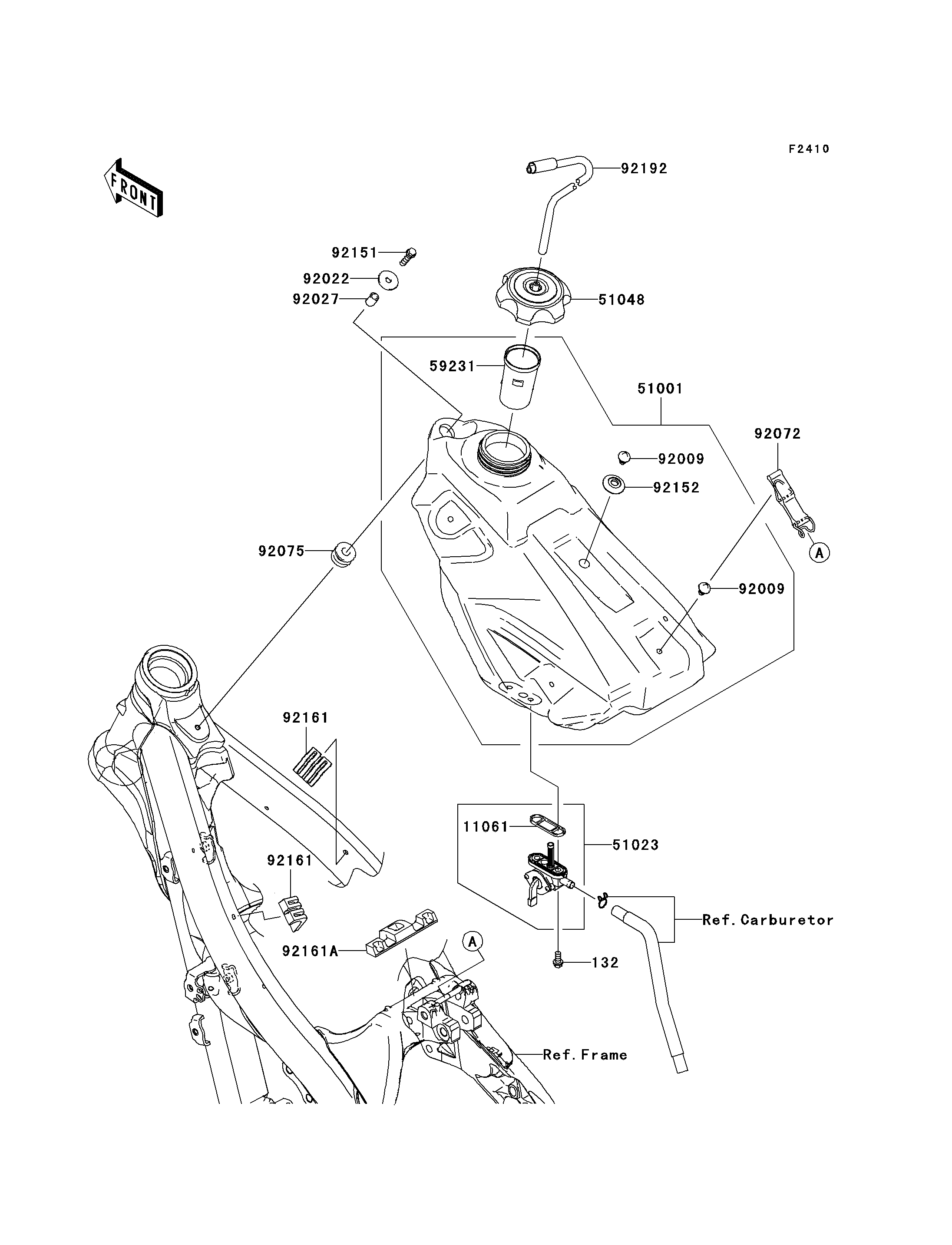

2009 KX™250F - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
132
11061
51001
51023
51048
59231
92009
92009
92022
92027
92072
92075
92151
92152
92161
92161
92161A
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BB0612 2
GASKET,FUEL TAP 11061 11061-0181 1
TANK-COMP-FUEL 51001 51001-0262 1
TAP-ASSY,FUEL 51023 51023-0025 1
CAP-ASSY-TANK,FUEL 51048 51048-0009 1
FILLER 59231 59231-0019 1
SCREW,6MM 92009 92009-1971 2
WASHER,6.5X24X2 92022 92022-1690 1
COLLAR,6.8X10X14 92027 92027-1966 1
BAND,FUEL TANK 92072 92072-0045 1
DAMPER 92075 92075-1787 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 1
COLLAR 92152 92152-1346 1
DAMPER,FUEL TANK,SIDE 92161 92161-0614 2
DAMPER,FUEL TANK,REAR 92161A 92161-0634 1
TUBE 92192 92192-0161 1
