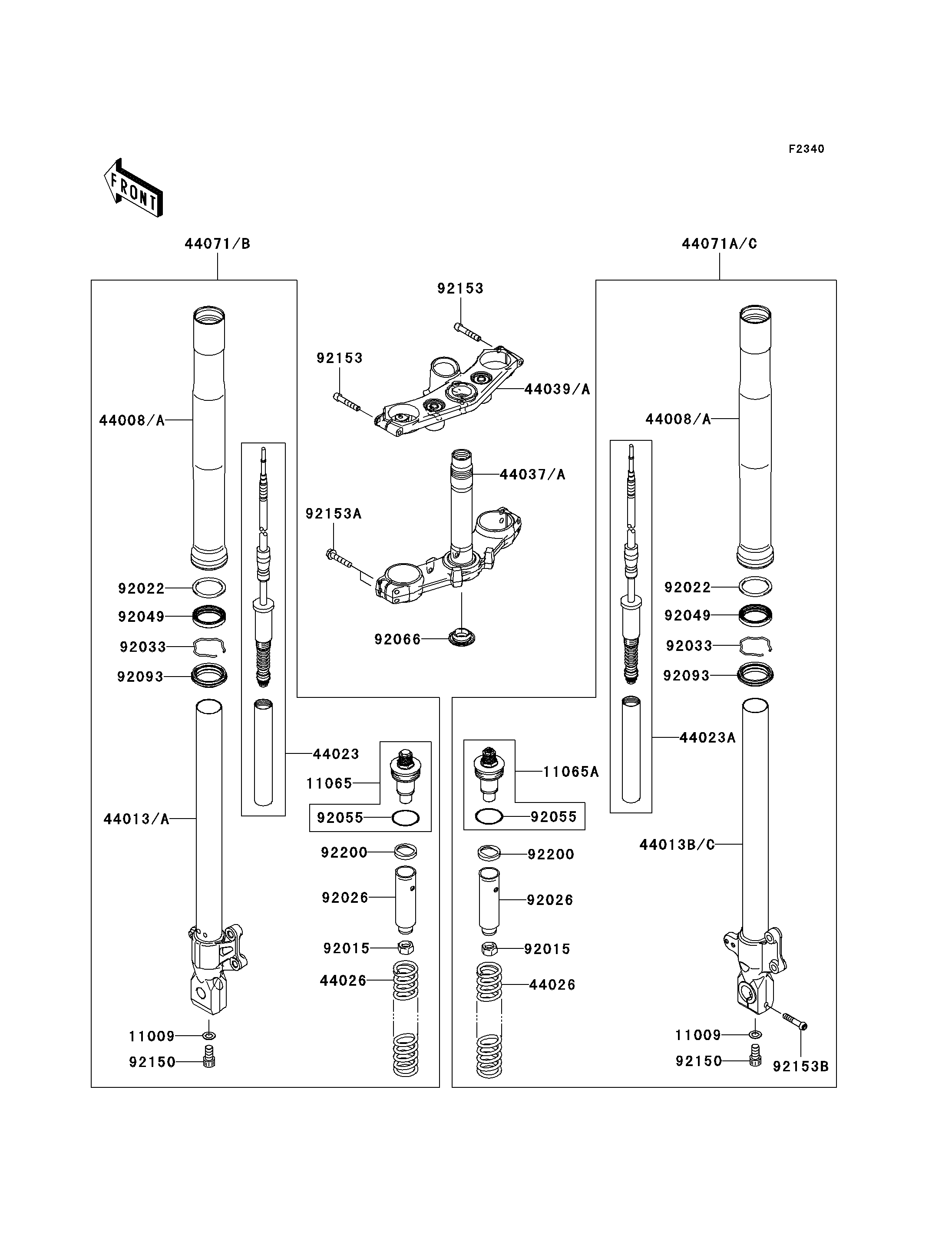

2010 Z750 (European) - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11065
11065A
44008A
44008A
44013A
44013C
44023
44023A
44026
44026
44037
44039
44071
44071A
92015
92015
92022
92022
92026
92026
92033
92033
92049
92049
92055
92055
92066
92093
92093
92150
92150
92153
92153
92153A
92153B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1127 2
CAP,FORK BOLT,LH,A.BLACK 11065 11065-0188-499 1
CAP,FORK BOLT,RH,A.BLACK 11065A 11065-0189-499 1
PIPE-FORK OUTER,A.BLACK 44008A 44008-0030-499 2
PIPE-FORK INNER,LH,F.BLACK 44013A 44013-0084-21 1
PIPE-FORK INNER,RH,F.BLACK 44013C 44013-0085-21 1
CYLINDER-SET-FORK,LH 44023 44023-0053 1
CYLINDER-SET-FORK,RH 44023A 44023-0054 1
SPRING-FRONT FORK 44026 44026-0102 2
HOLDER-FORK UNDER,F.S.BLACK 44037 44037-0066-11E 1
HOLDER-FORK UPPER,F.S.BLACK 44039 44039-0057-11E 1
DAMPER-ASSY,FORK,LH,BLACK 44071 44071-5044 1
DAMPER-ASSY,FORK,RH,BLACK 44071A 44071-5045 1
NUT 92015 92015-1795 2
WASHER,FORK OUTER TUBE 92022 92022-1298 2
SPACER,FORK 92026 92026-0045 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL 92049 92049-0073 2
RING-O,FORK,AIR TUBE 92055 92055-1333 2
PLUG 92066 92066-0032 1
SEAL,FORK OUTER TUBE 92093 92093-1472 2
BOLT,12X22 92150 92150-1398 2
BOLT 92153 92153-0425 2
BOLT,FLANGED,8X40 92153A 92153-0484 4
BOLT,SOCKET,8X40 92153B 92153-0506 1
WASHER 92200 92200-0085 2
