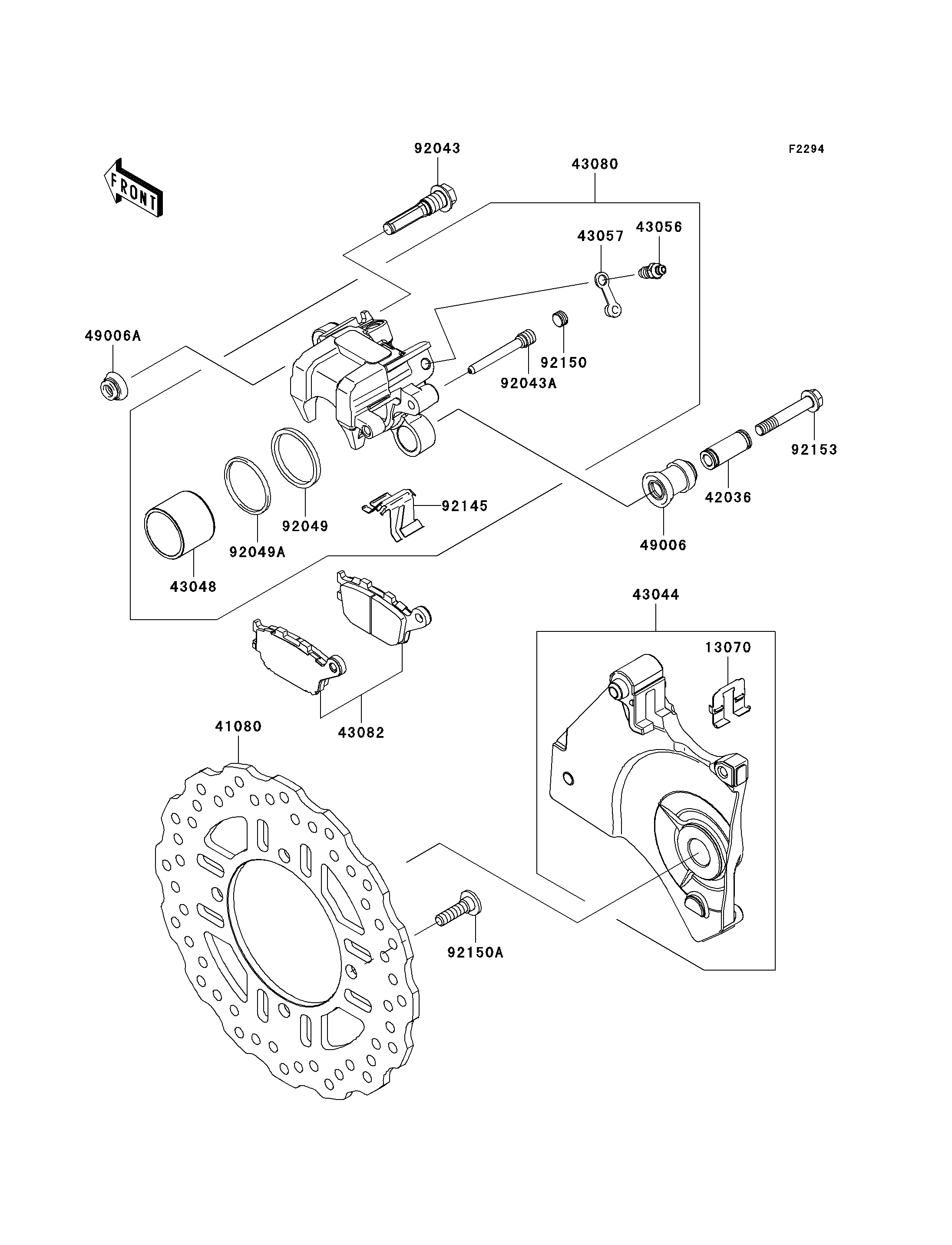

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13070
41080
42036
43044
43048
43056
43057
43080
43082
49006
49006A
92043
92043A
92049
92049A
92145
92150
92150A
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUIDE,BRAKE PAD | 13070 | 13070-0076 | 1 | ||
| DISC,RR | 41080 | 41080-0089 | 1 | ||
| SLEEVE | 42036 | 42036-0050 | 1 | ||
| HOLDER-COMP-CALIPER,RR | 43044 | 43044-0014 | 1 | ||
| PISTON-CALIPER | 43048 | 43048-0008 | 1 | ||
| BREATHER | 43056 | 43056-1055 | 1 | ||
| CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
| CALIPER-SUB-ASSY,RR,BLACK | 43080 | 43080-0050-DJ | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-0073 | 1 | ||
| BOOT | 49006 | 49006-0058 | 1 | ||
| BOOT,CALIPER | 49006A | 49006-1242 | 1 | ||
| PIN | 92043 | 92043-0137 | 1 | ||
| PIN,HANGER | 92043A | 92043-1520 | 1 | ||
| SEAL-OIL | 92049 | 92049-1449 | 1 | ||
| SEAL-OIL | 92049A | 92049-1450 | 1 | ||
| SPRING,PAD | 92145 | 92145-0493 | 1 | ||
| BOLT,PLUG | 92150 | 92150-1692 | 1 | ||
| BOLT,SOCKET,8X30 | 92150A | 92150-1771 | 4 | ||
| BOLT,FLANGED | 92153 | 92153-1826 | 1 |
| GUIDE,BRAKE PAD | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DISC,RR | |
| REF # | 41080 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-COMP-CALIPER,RR | |
| REF # | 43044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-CALIPER | |
| REF # | 43048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREATHER | |
| REF # | 43056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-BREATHER | |
| REF # | 43057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CALIPER-SUB-ASSY,RR,BLACK | |
| REF # | 43080 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD-ASSY-BRAKE | |
| REF # | 43082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,CALIPER | |
| REF # | 49006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,HANGER | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,PAD | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,PLUG | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X30 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
