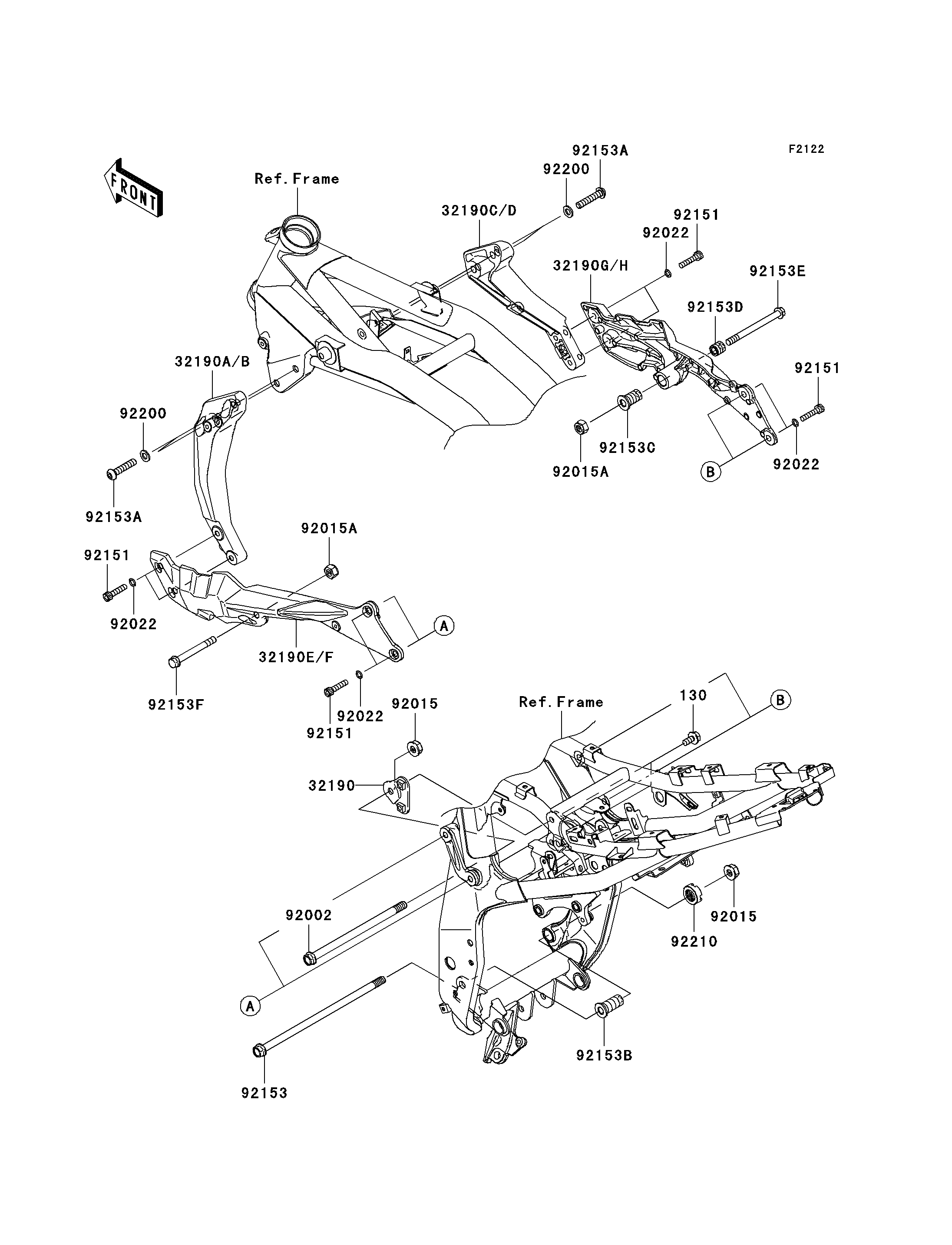

2010 Z750 (European) - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
130
32190
32190A
32190C
32190E
32190G
92002
92015
92015
92015A
92015A
92022
92022
92022
92022
92151
92151
92151
92151
92153
92153A
92153A
92153B
92153C
92153D
92153E
92153F
92200
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130BB0816 2
BRACKET-ENGINE,RR,RH,UPP 32190 32190-0009 1
BRACKET-ENGINE,FR,LH,BLACK 32190A 32190-0248-18R 1
BRACKET-ENGINE,FR,RH,BLACK 32190C 32190-0249-18R 1
BRACKET-ENGINE,RR,LH,BLACK 32190E 32190-0250-18R 1
BRACKET-ENGINE,RR,RH,BLACK 32190G 32190-0251-18R 1
BOLT,10X183 92002 92002-1337 1
NUT,FLANGED,10MM 92015 92015-1180 2
NUT,LOCK,10MM,BLACK 92015A 92015-1189 2
WASHER,8.5X13X1 92022 92022-1028 8
BOLT,SOCKET,8X35 92151 92151-1535 8
BOLT,FLANGED,10X240 92153 92153-0559 1
BOLT,SOCKET,10X50 92153A 92153-0858 4
BOLT,ENGINE MOUNT,18MM 92153B 92153-1098 1
BOLT,ENGINE MOUNT,18MM 92153C 92153-1818 1
BOLT,ENGINE MOUNT,18MM 92153D 92153-1819 1
BOLT,FLANGED,10X113 92153E 92153-1820 1
BOLT,FLANGED,10X85 92153F 92153-1899 1
WASHER,10.5X19X2.3 92200 92200-1042 4
NUT,18MM 92210 92210-1203 1
