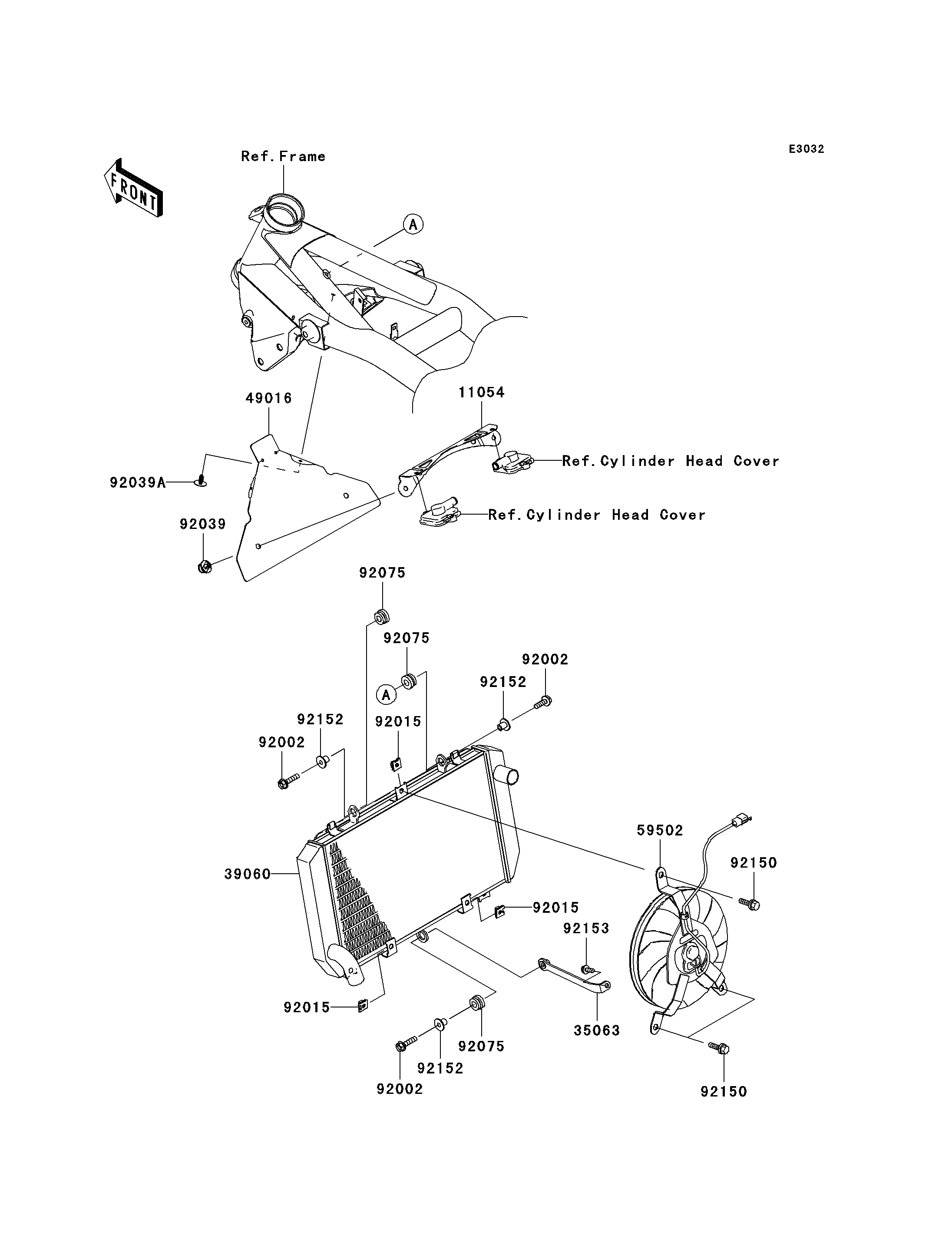

Parts Diagrams |
11054
35063
39060
49016
59502
92002
92002
92002
92015
92015
92015
92039
92039A
92075
92075
92075
92150
92150
92152
92152
92152
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11054 | 11054-0646 | 1 | ||
| STAY | 35063 | 35063-0321 | 1 | ||
| RADIATOR | 39060 | 39060-0034 | 1 | ||
| COVER-SEAL,HOT WIND | 49016 | 49016-0032 | 1 | ||
| FAN-ASSY | 59502 | 59502-0025 | 1 | ||
| BOLT,FLANGED,6X25 | 92002 | 92002-1086 | 3 | ||
| NUT | 92015 | 92015-1487 | 3 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 2 | ||
| RIVET | 92039A | 92039-0027 | 2 | ||
| DAMPER,RUBBER | 92075 | 92075-1123 | 3 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 3 | ||
| COLLAR | 92152 | 92152-1074 | 3 | ||
| BOLT-FLANGED,6X16 | 92153 | 92153-1584 | 1 |
| BRACKET | |
| REF # | 11054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY | |
| REF # | 35063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR | |
| REF # | 39060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL,HOT WIND | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X25 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RIVET,HOLE 8MM | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
